RT-20SL-300

Thread roller

Previous image RT-20SL-300 Next image

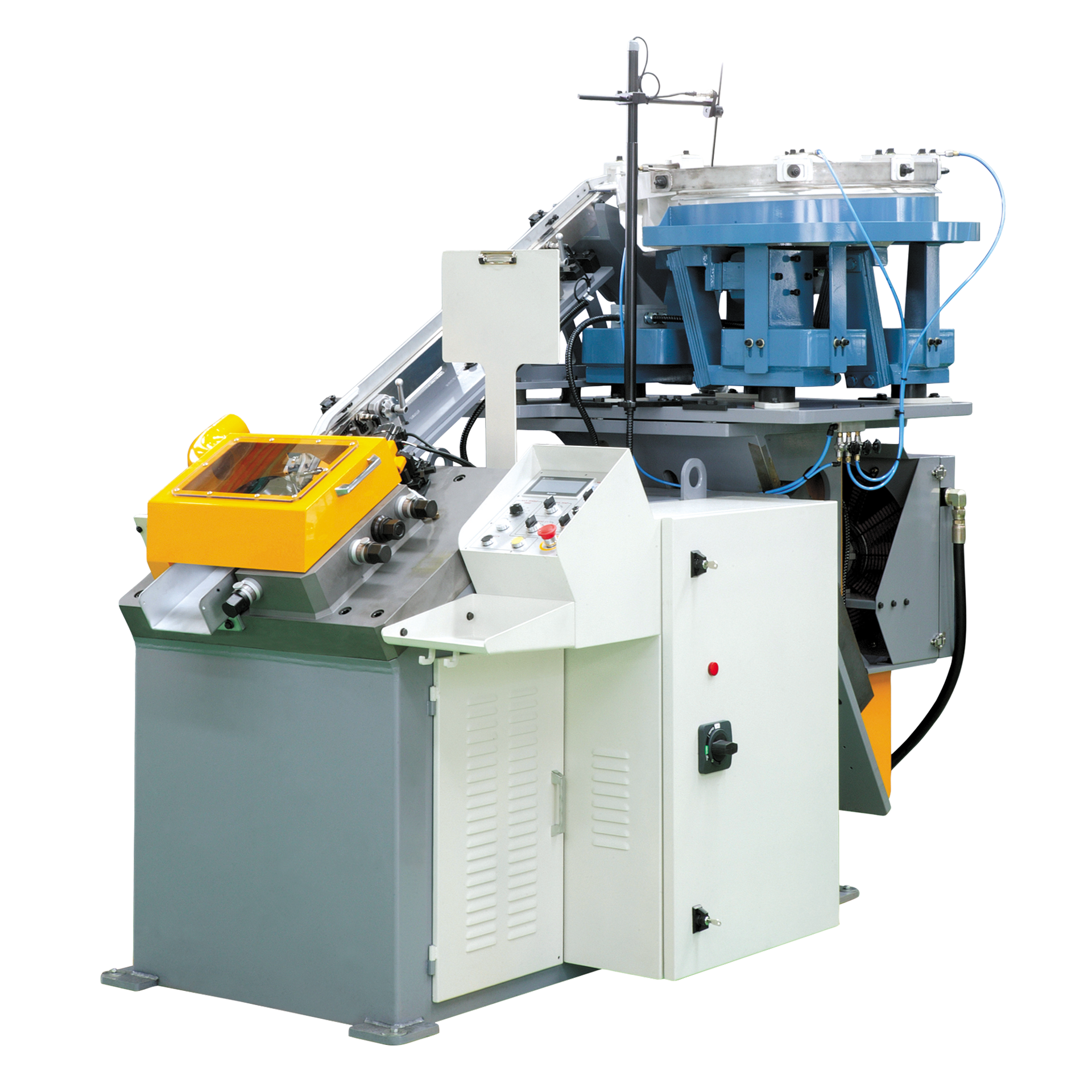

The RT 20SL 300 Thread Roller from ZEUS TECHNO INC

Thread roller RT 20SL 300 is a powerful and versatile machine designed for efficient and precise nail threading operations. It is capable of handling different thread types, including Spiral Shank and Ring Shank, and has a wide range of nail diameters from 1.2mm to 4.2mm. The machine can accommodate nail lengths ranging from 160mm to 300mm, with a thread length range of 76mm. With a speed of 300 nails per minute, the RT-20SL 300 ensures high productivity. It is equipped with a reliable 11kW main motor that provides ample power for the machine's operations. The electric power requirement is 15kVA, with options for 210-230V or 340-400V, and a frequency of 50-60Hz.

Watch the video of the RT-20SL-300


Watch video

Specifications:

Model:
RT-20SL-300
Nail Diameter Range:
2.8 - 4.87 mm (0.110 - 0.191 inch)
Nail Length Range:
160 - 300 mm (6.3 - 11.8 inch)
Speed:
Up to 300 nails/min.
Electric Power:
15 kW max, 3P, 210-230 V, 50/60 Hz
Air Consumption:
200 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Thread Type:
Available SPIRAL Shank / RING Shank
Thread Length Range:
75 mm (3 inch)
Weight:
2,300 kg (5,100 lbs)
Features:
  • Neo PWM vibrating systems.
  • Straight steep down rail: 1250mm length, 30 degrees aligned.
  • Precise cam nail feeding system, servo motor by Auger.
  • Up/down setup for effortless adjustment of the thread height.
  • Fine tuning adjusting bolt ensures production of threads of the highest quality.
  • Powerful 15 hp main driving motor equipped with a full feature vector drive for comprehensive functionality.
  • Main spindle driven by a heavy-duty spiral bevel gear for enhanced durability.
  • Cooling system for both gearbox & die block along with oil cooling radiator.
  • Possibility of rebuilding to RT-20SL 160 or RT-20SL 300.
