B-20

Hybrid nail making machine

Previous image B-20 Next image

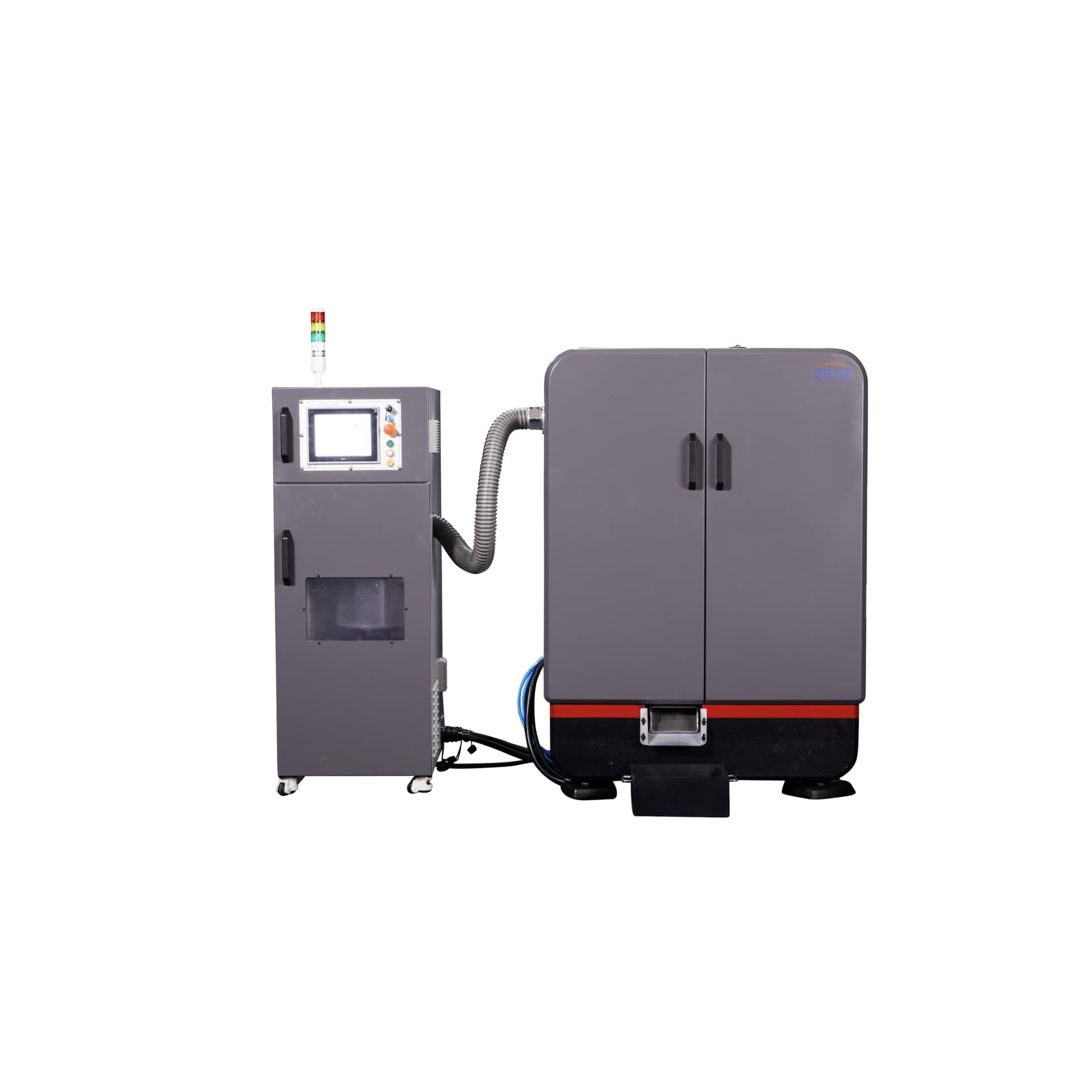

The B-20 Header from ZEUS TECHNO INC

Nail Header B-20 is a high-performance machine designed to deliver precision and speed. With the capability to produce high-quality nails at rapid speeds and minimal maintenance requirements, it's the ideal choice for nail manufacturing. Its powerful hammer ensures precise nail head engraving, and the sound insulation cover minimizes noise. Plus, the touch screen computer control unit simplifies operation.

Watch the video of the B-20


Watch video

Specifications:

Model:
B-20
Nail Diameter Range:
2.5 - 3.43 mm (0.098 - 0.135 inch)
Nail Length Range:
50 - 75 mm (2 - 3 inch)
Speed:
Up to 1,500 nails/min.
Main Motor:
5.5 kW (7.4 HP)
Electric Power:
6 kW max, 3P, 370 - 400 V, 50/60 Hz
Air Consumption:
200 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Weight:
3,500 kg (7,700 lbs)
Features:
  • High-quality nails can be produced at a high speed with consistency.
  • The heads of nails are precisely imprinted, making them suitable for engraving.
  • Low maintenance cost.
  • Spare parts are readily available at a reasonable price range.
  • Touchscreen monitor for easy operation.

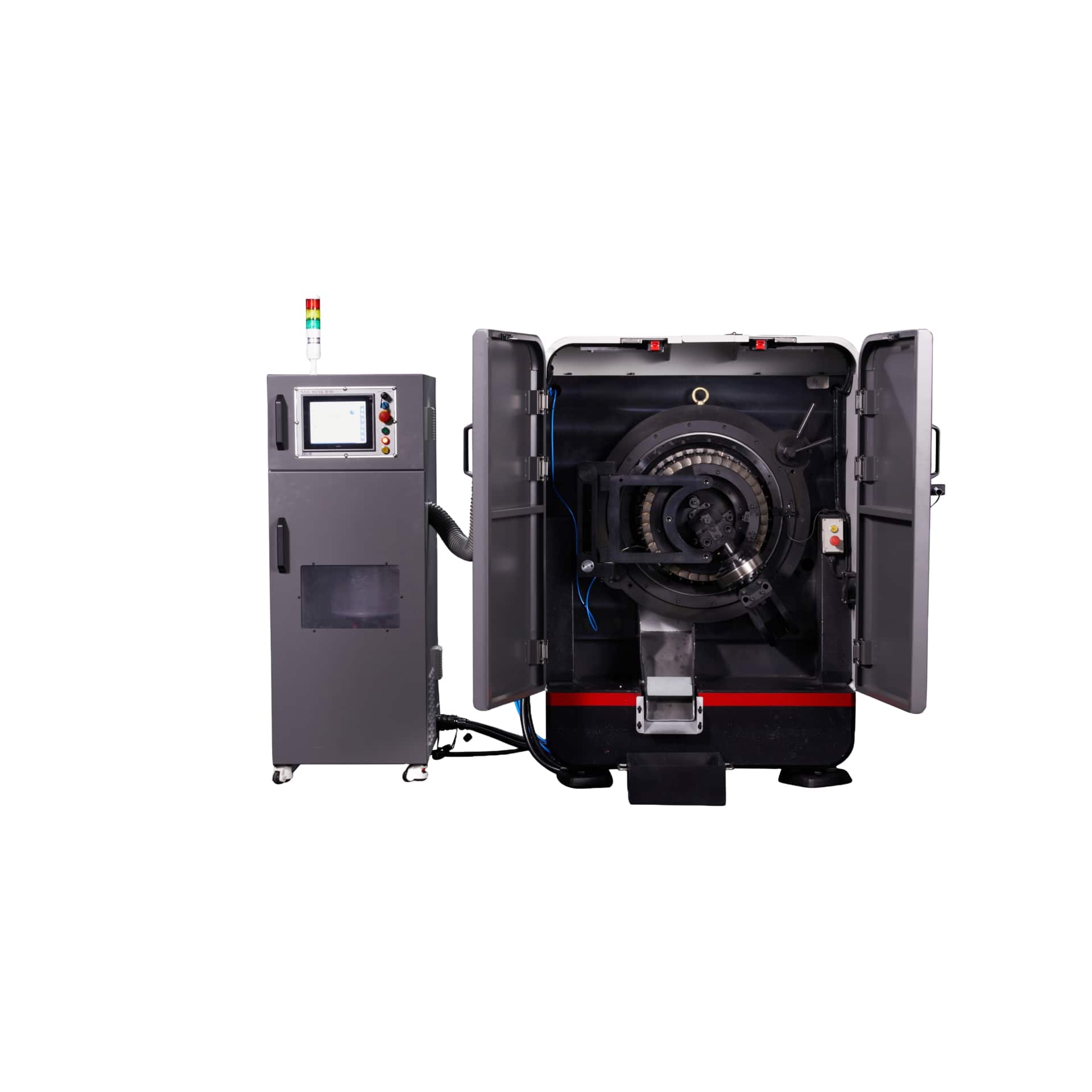

  • Utilizes a rotary nail header structure with an inner ring and outer ring.
  • A complete set of dies and punches is provided free of charge.
  • The housing is designed to meet safety regulations.
