PS-160

Plastic strip nail collator

Previous image PS-160 Next image

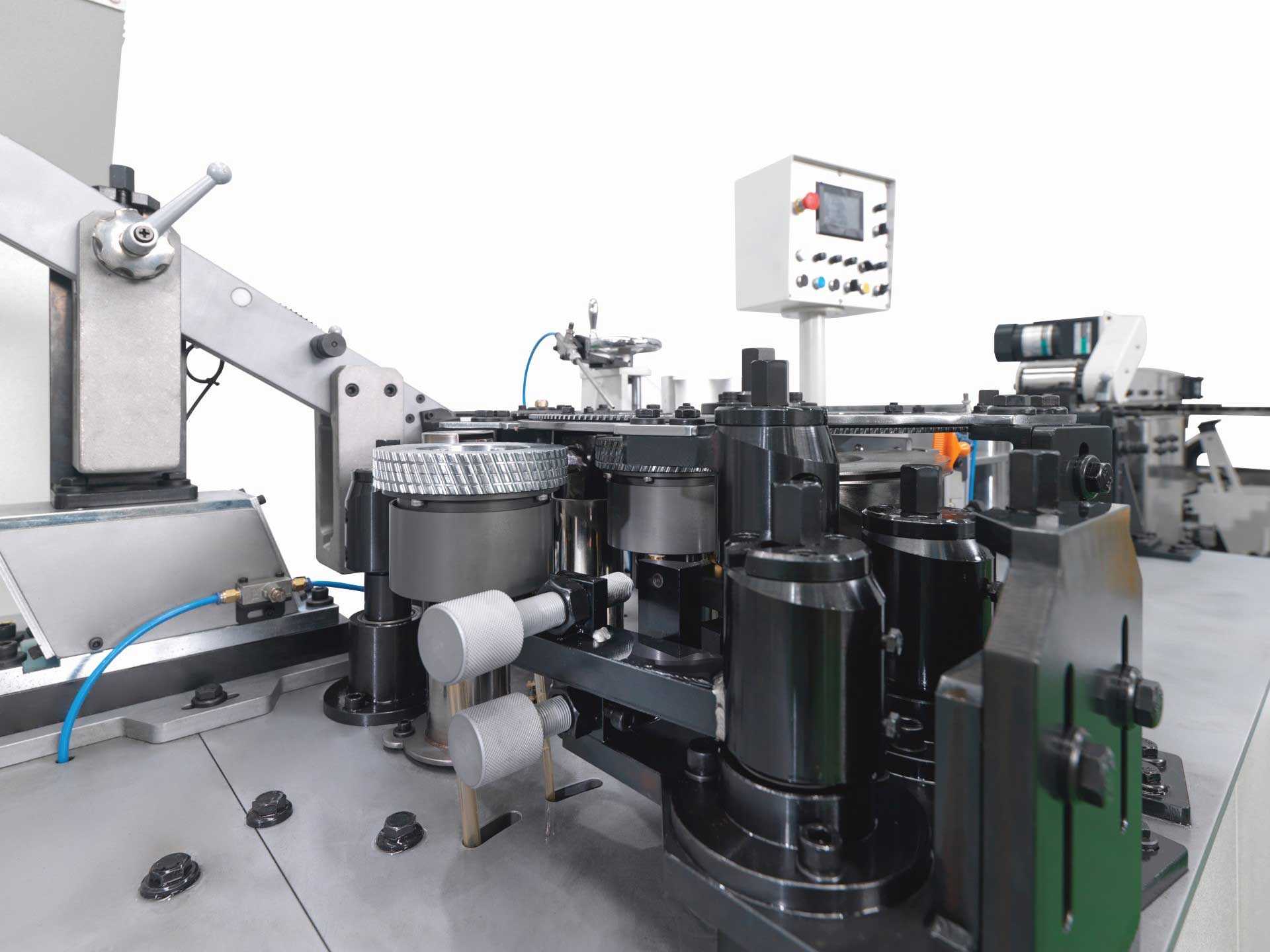

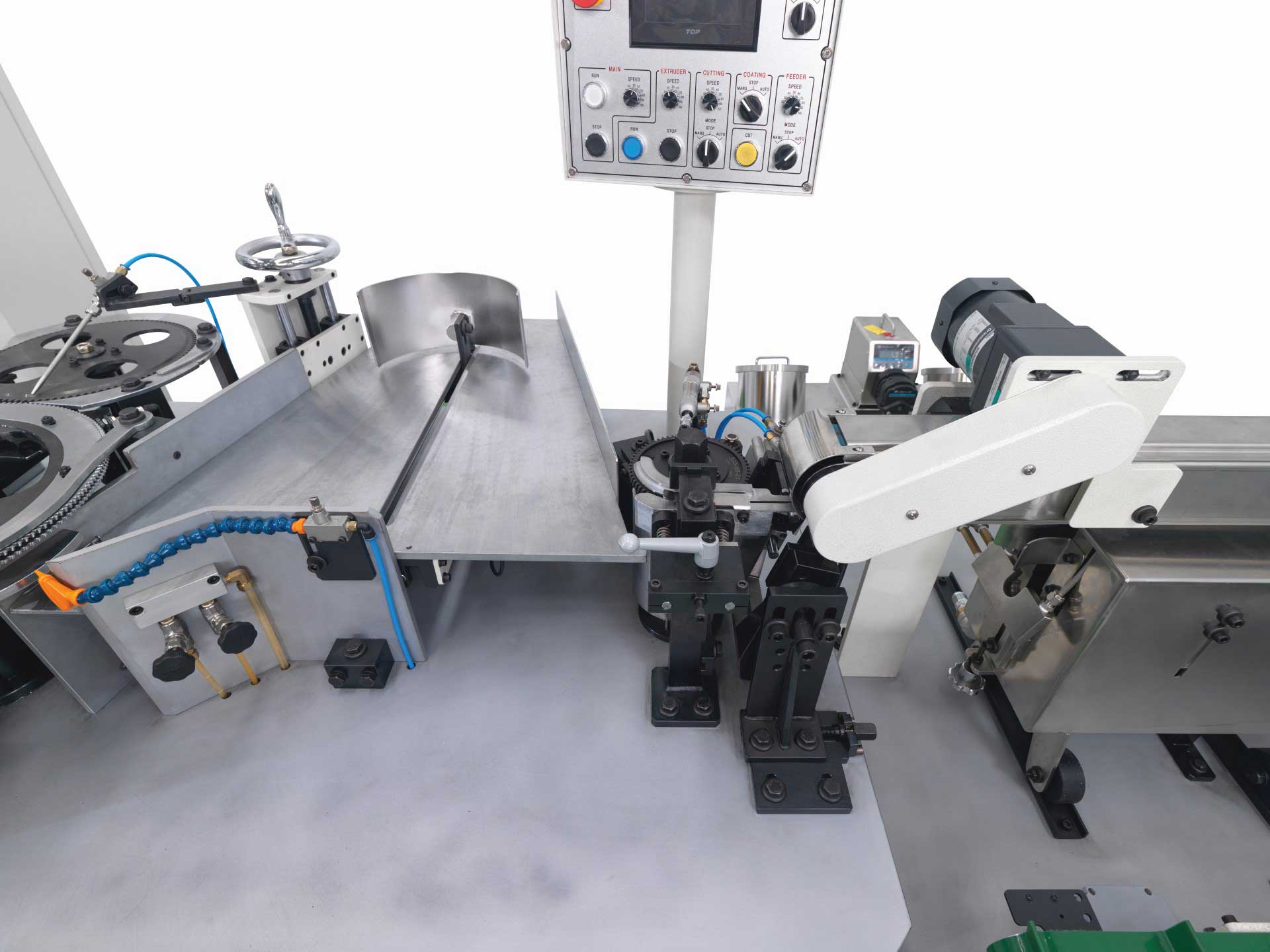

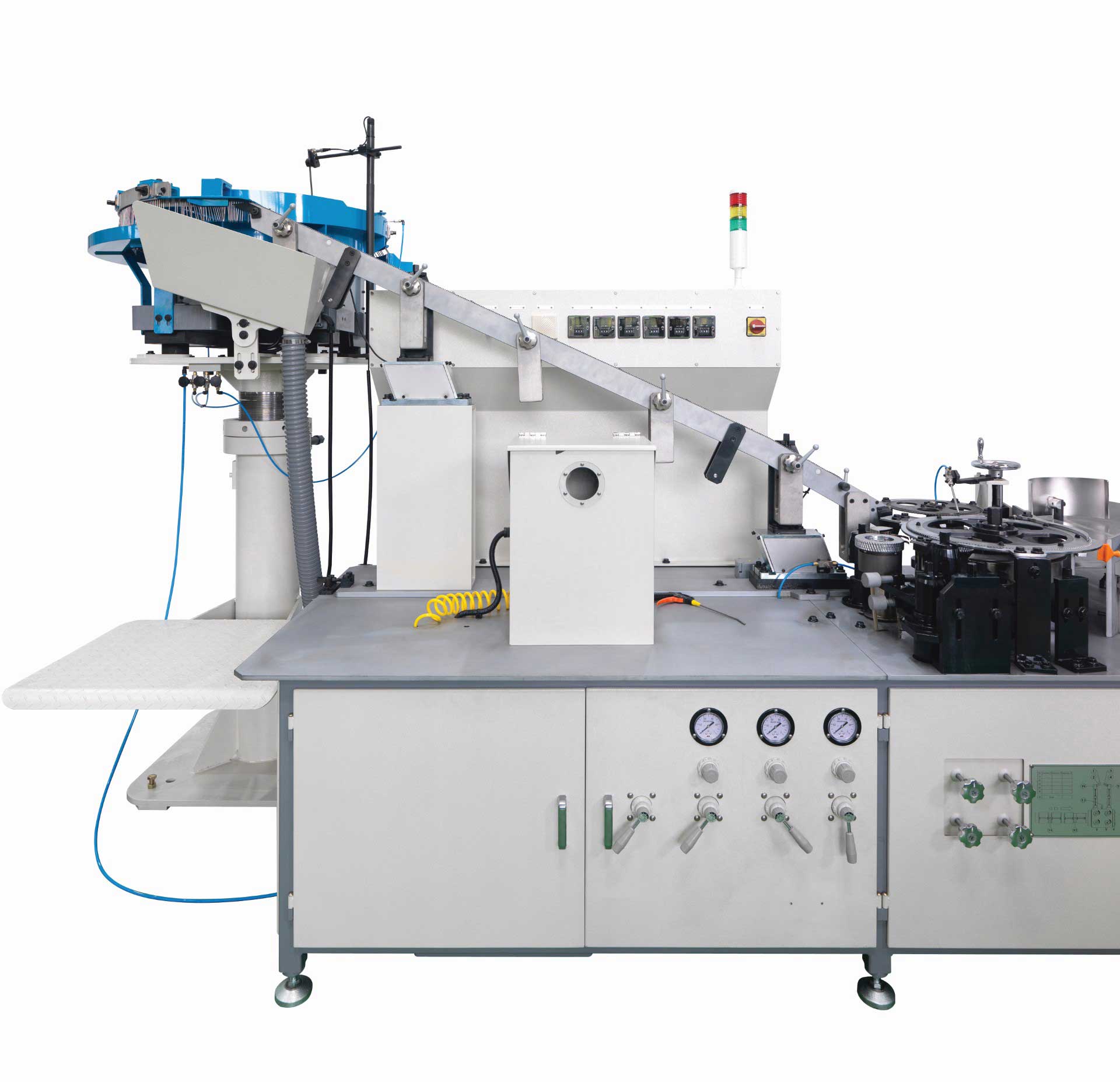

The PS-160 Plastic Strip Collator from ZEUS TECHNO INC

Plastic Strip Collator PS-160: Precision takes center stage with the PS-160 Plastic Strip Collator. Operating at speeds of up to 1,500 nails per minute, this machine delivers accuracy and efficiency in nail collation that's second to none. Powered by advanced plastic strip collation technology and sophisticated coiling capabilities, the PS-160 ensures reliable and efficient nail manufacturing. When it comes to meeting your nail production requirements with precision, the PS-160 stands as the ultimate choice.

Watch the video of the PS-160


Watch video

Specifications:

Model:
PS-160
Nail Diameter Range:
2.1 - 4.2 mm (0.099 - 0.165 inch)
Nail Length Range:
45 - 160 mm (1 3/4 – 6 1/4 inch)
Speed:
Up to 1,500 nails/min.
Electric Power:
30 kW max, 3P, 210-230 V, 50/60 Hz
Nail Angle Range:
19 - 23 degree
Nails Per Strip:
20 - 30 pcs
Air Consumption:
550 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Weight:
3,600 kg (8,000 lbs)
Features:
  • Neo PWM vibrating systems.
  • Straight steep down rail: 2,150mm length, 25 degree aligned.

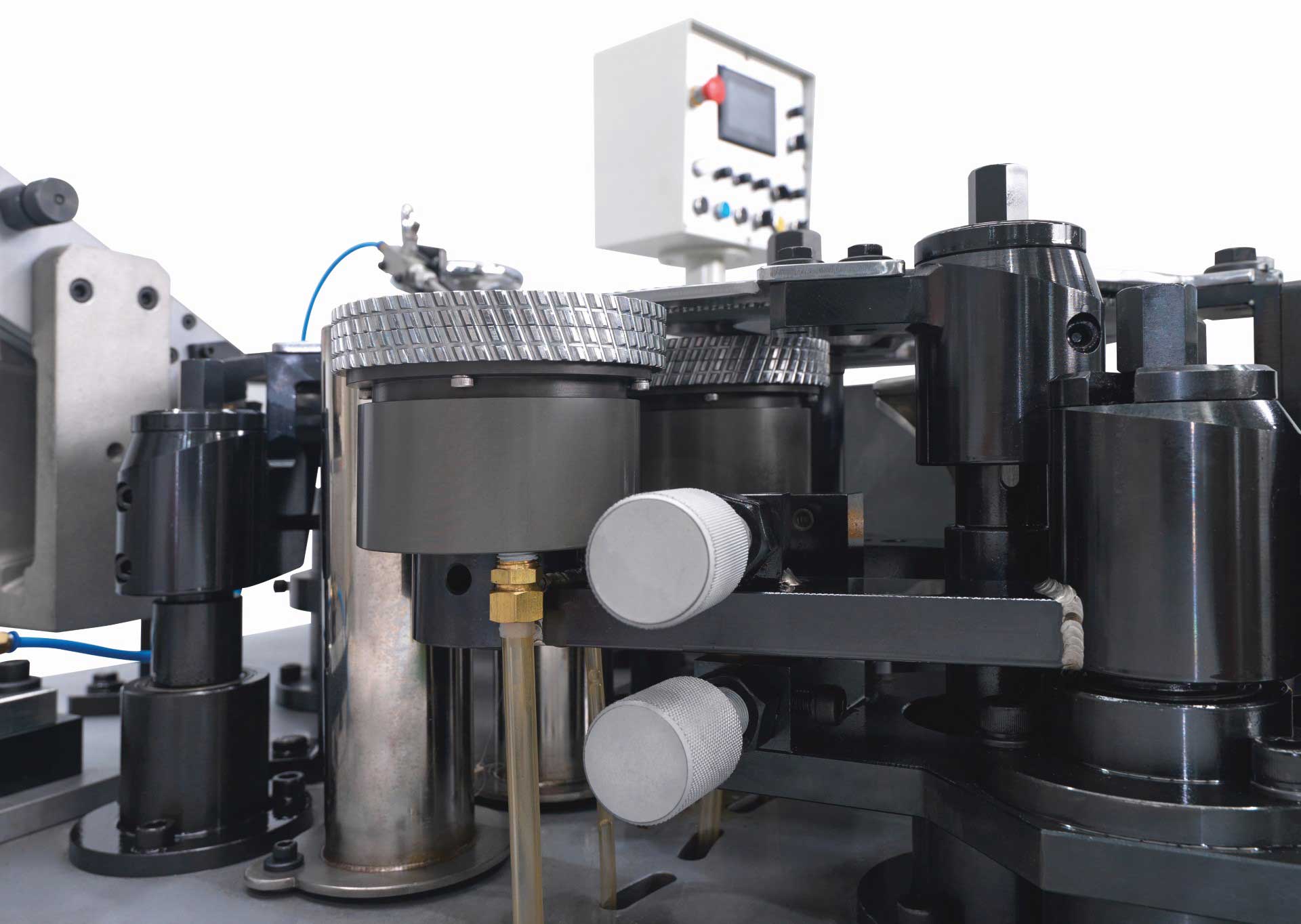

  • Strip formation: Injection nozzle & water cooled crimping gears.

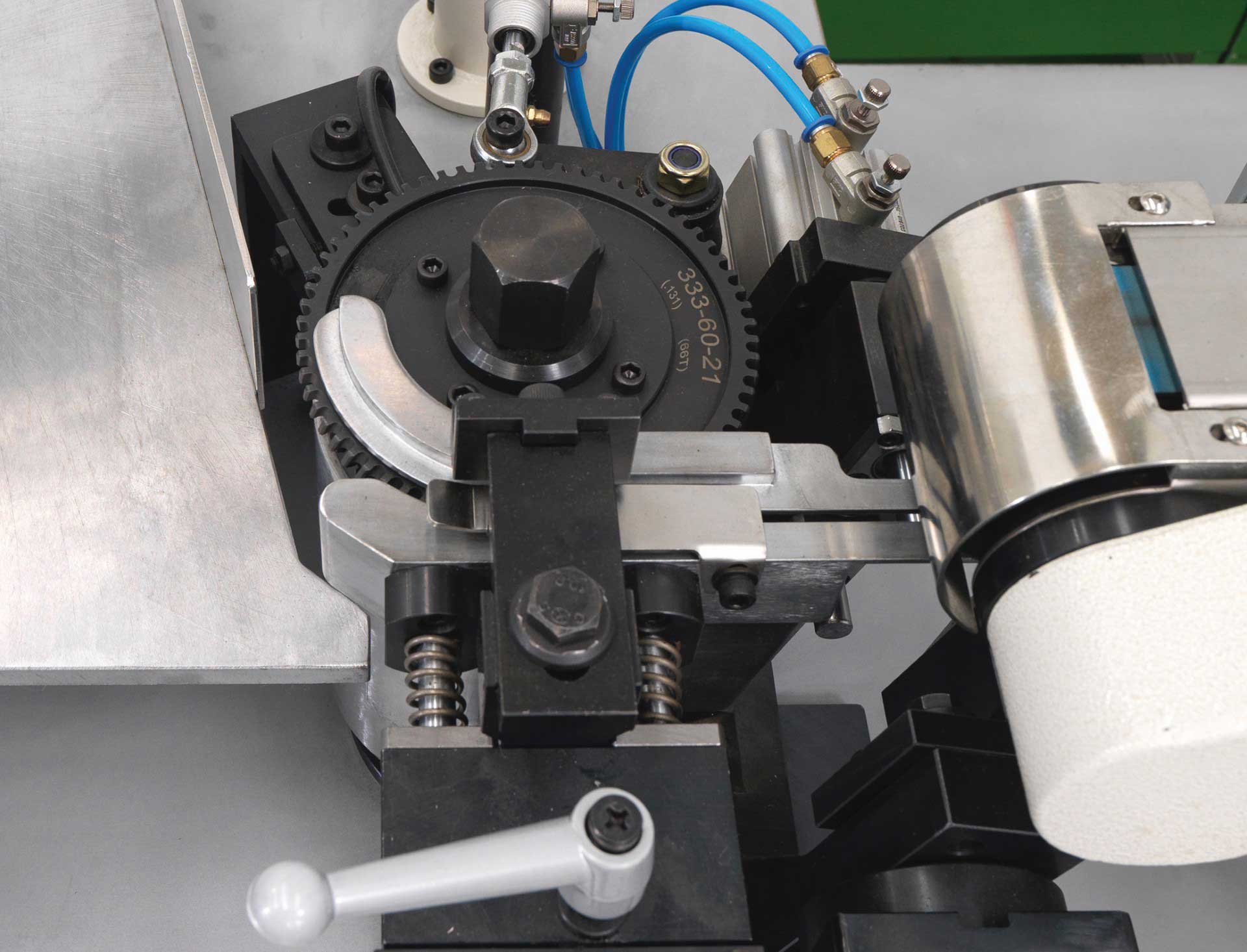

  • Cutter: Count gear with sensor makes nail numbers per strip exact.
  • Coating: Spray roller coating with recycling pump and stainless storage tank type.

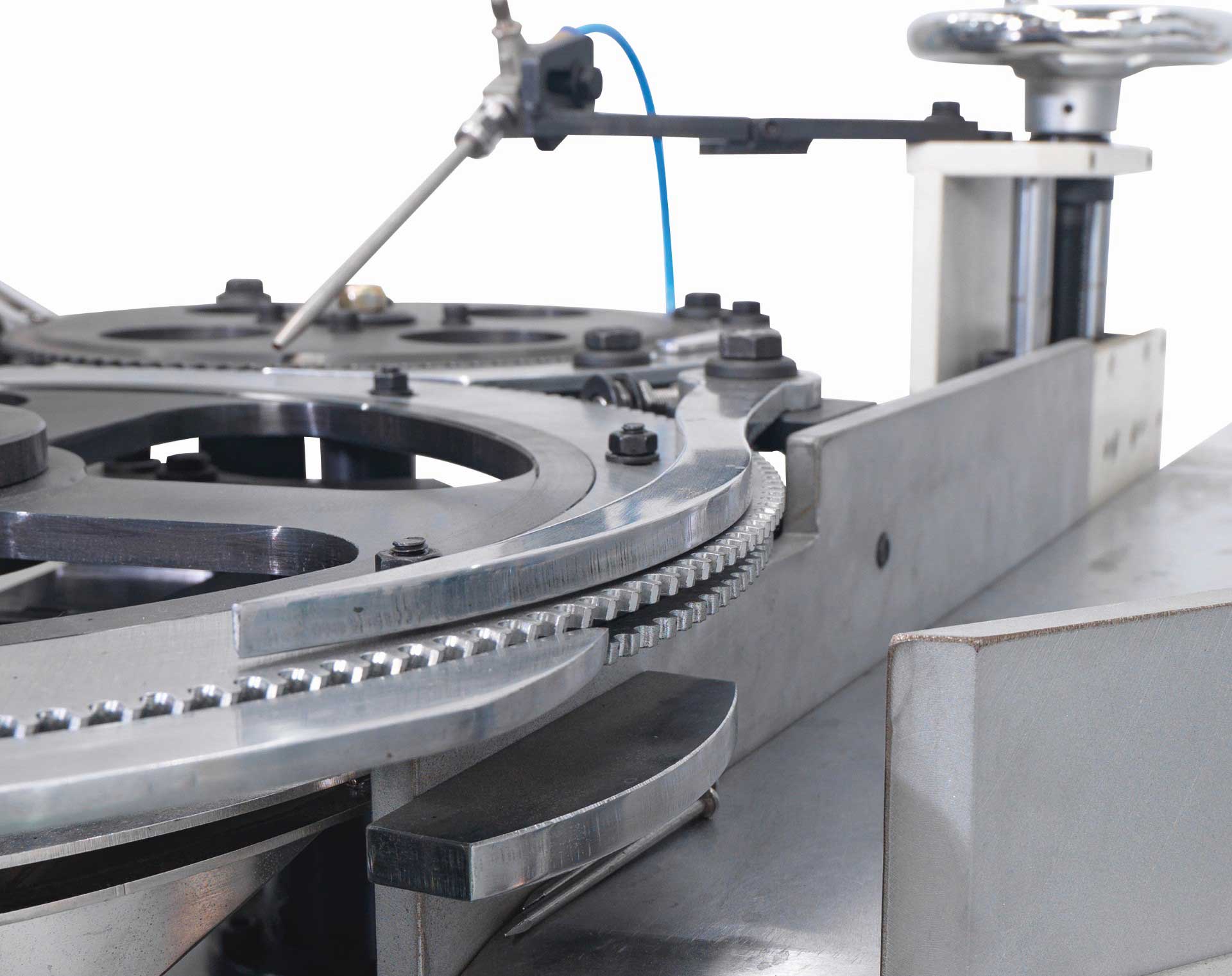

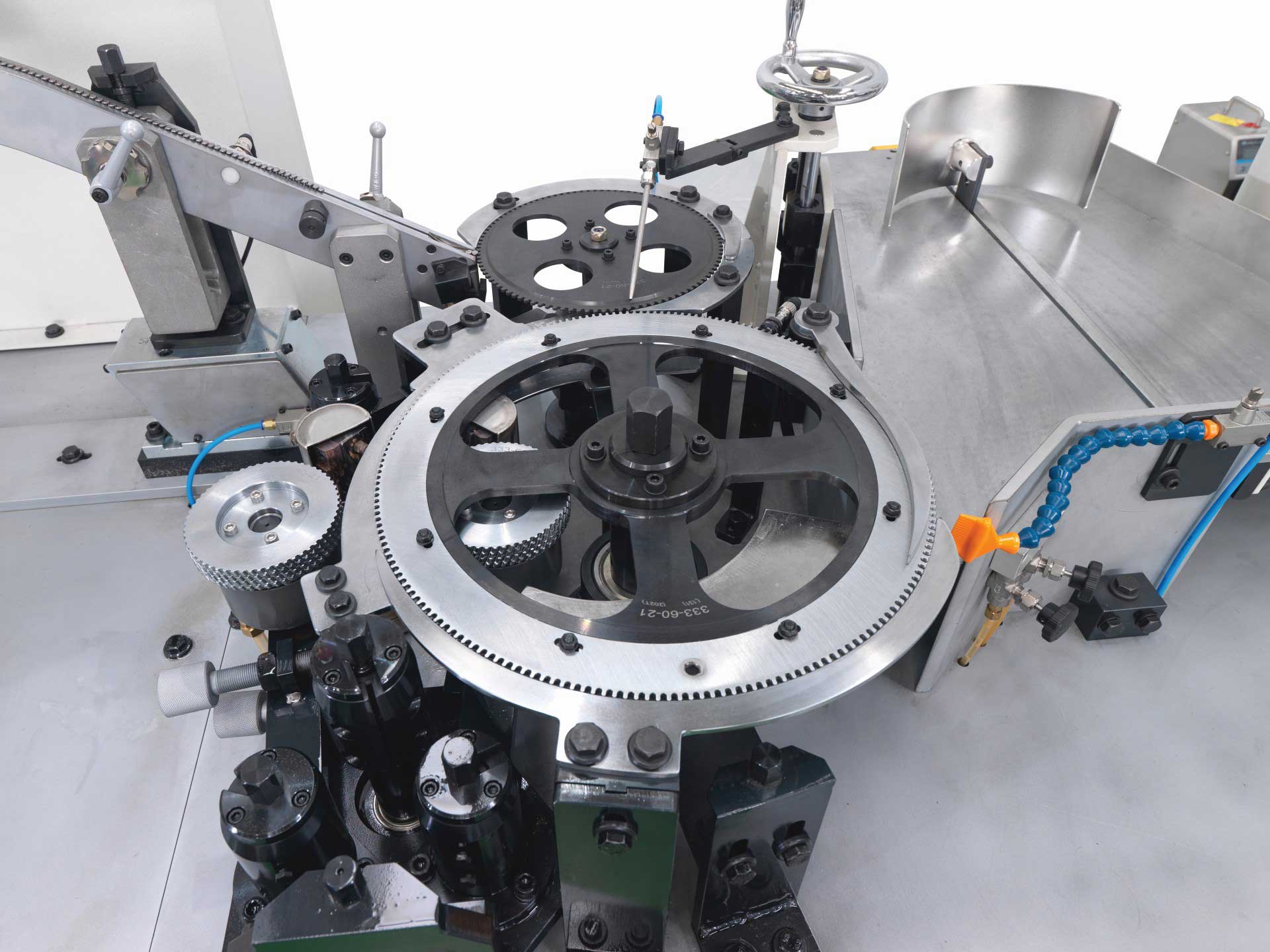

  • Magnet transit conveyor lead strip into carrousel pocket.

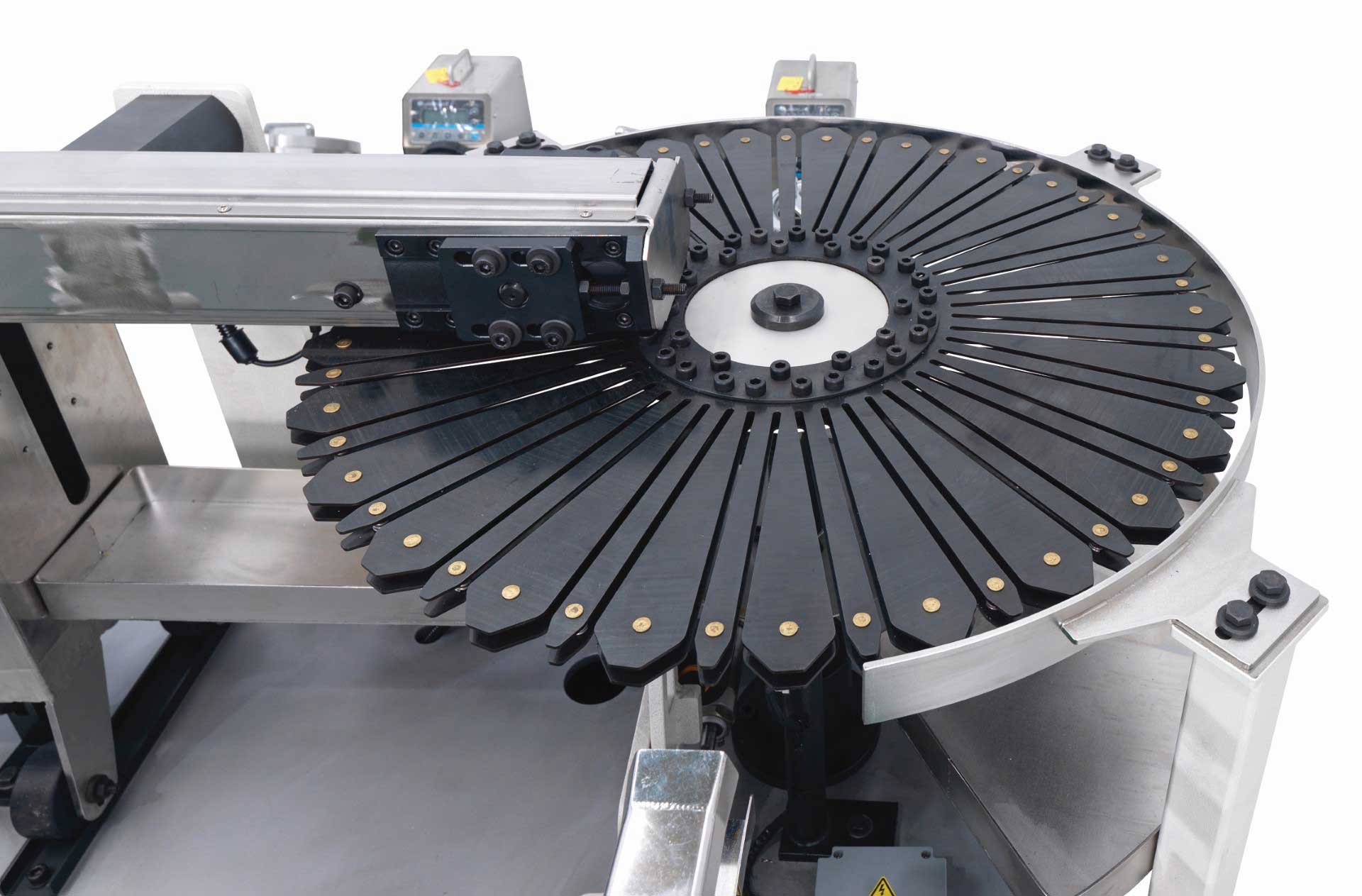

  • Drying carrousel dries coated strip with warm air dryer.

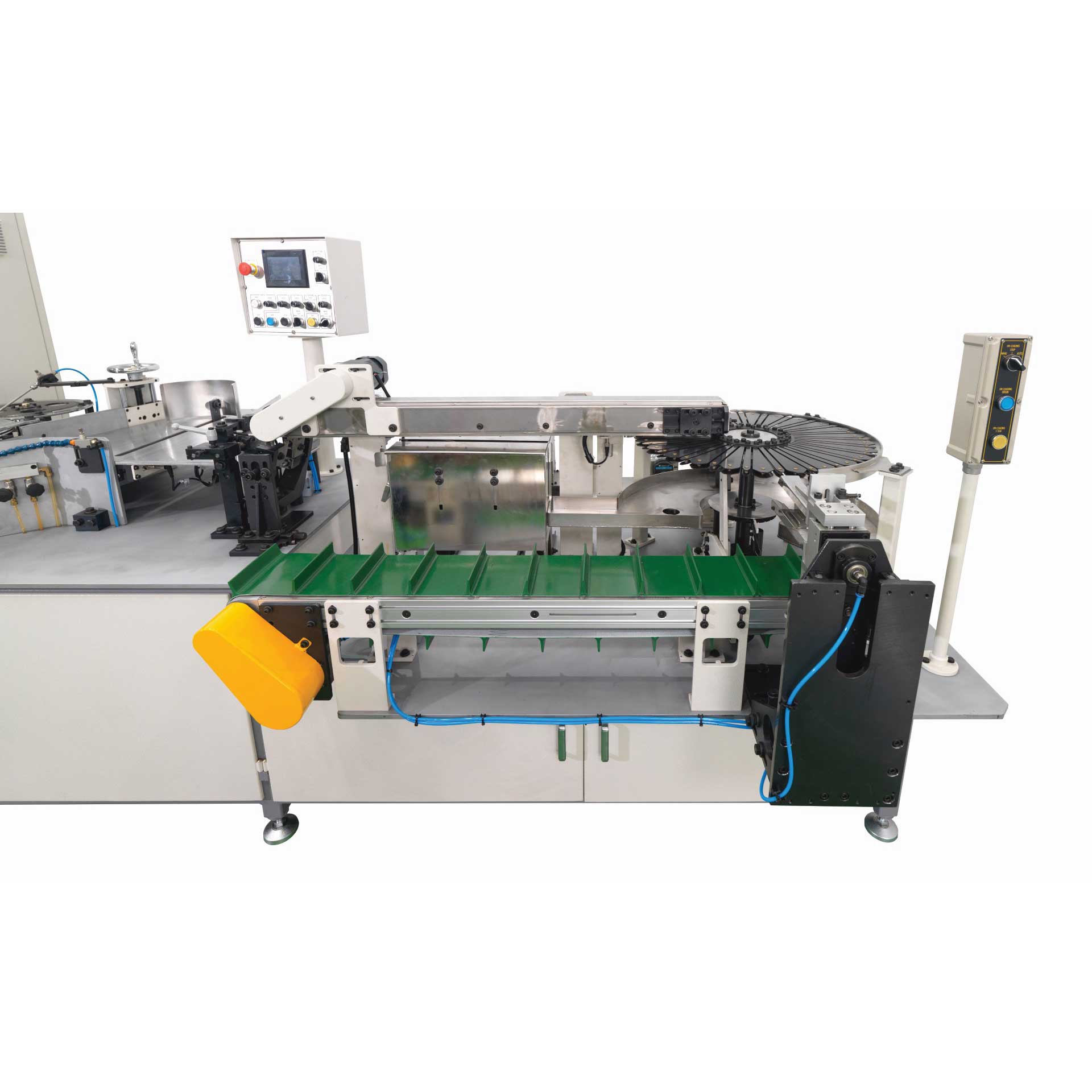

  • Stacker: Gripper stacks stirp onto conveyor.
  • Conveyor: A dozen of piled up stirps helps packing.
