MS-5

Plastic strip nail collator

Previous image MS-5 Next image

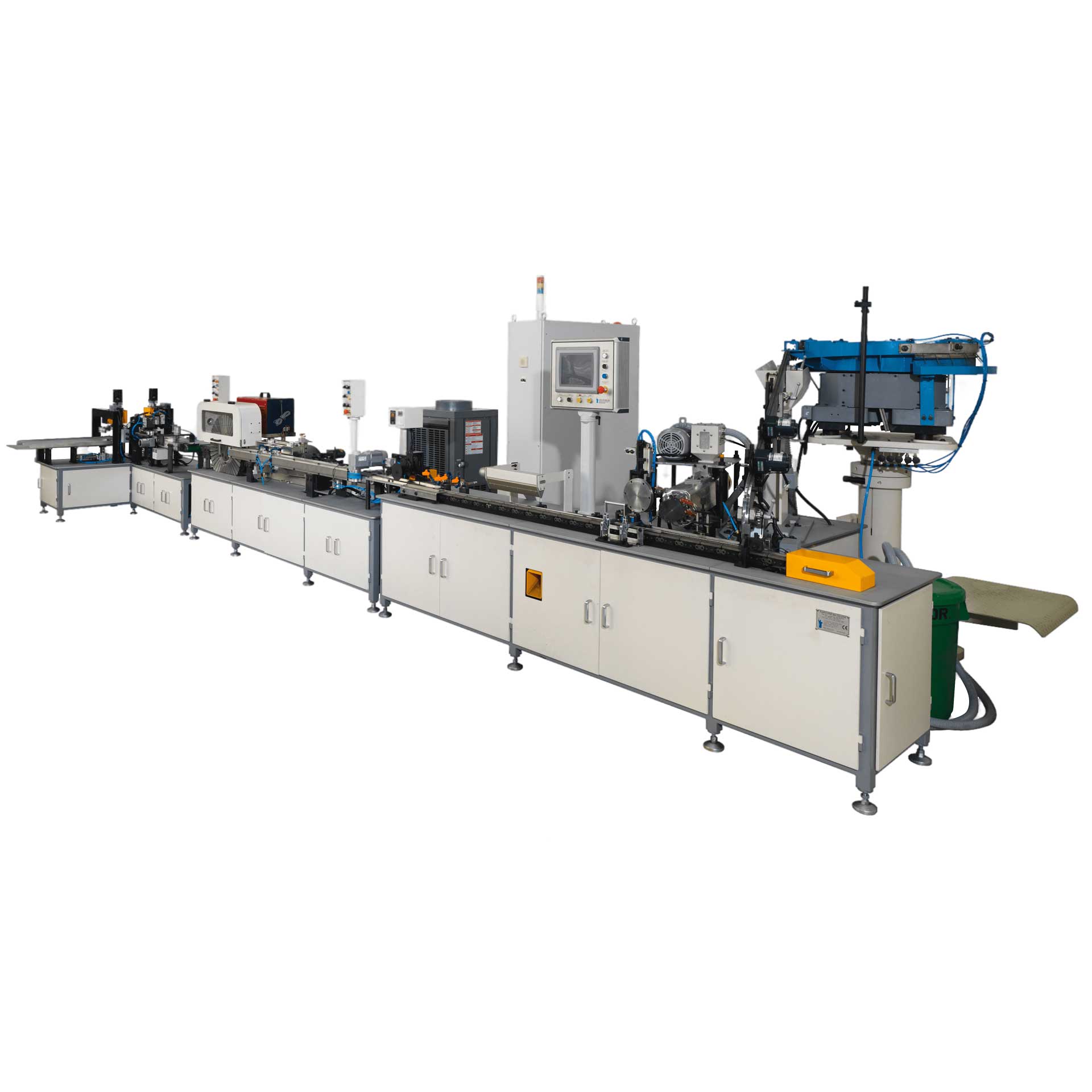

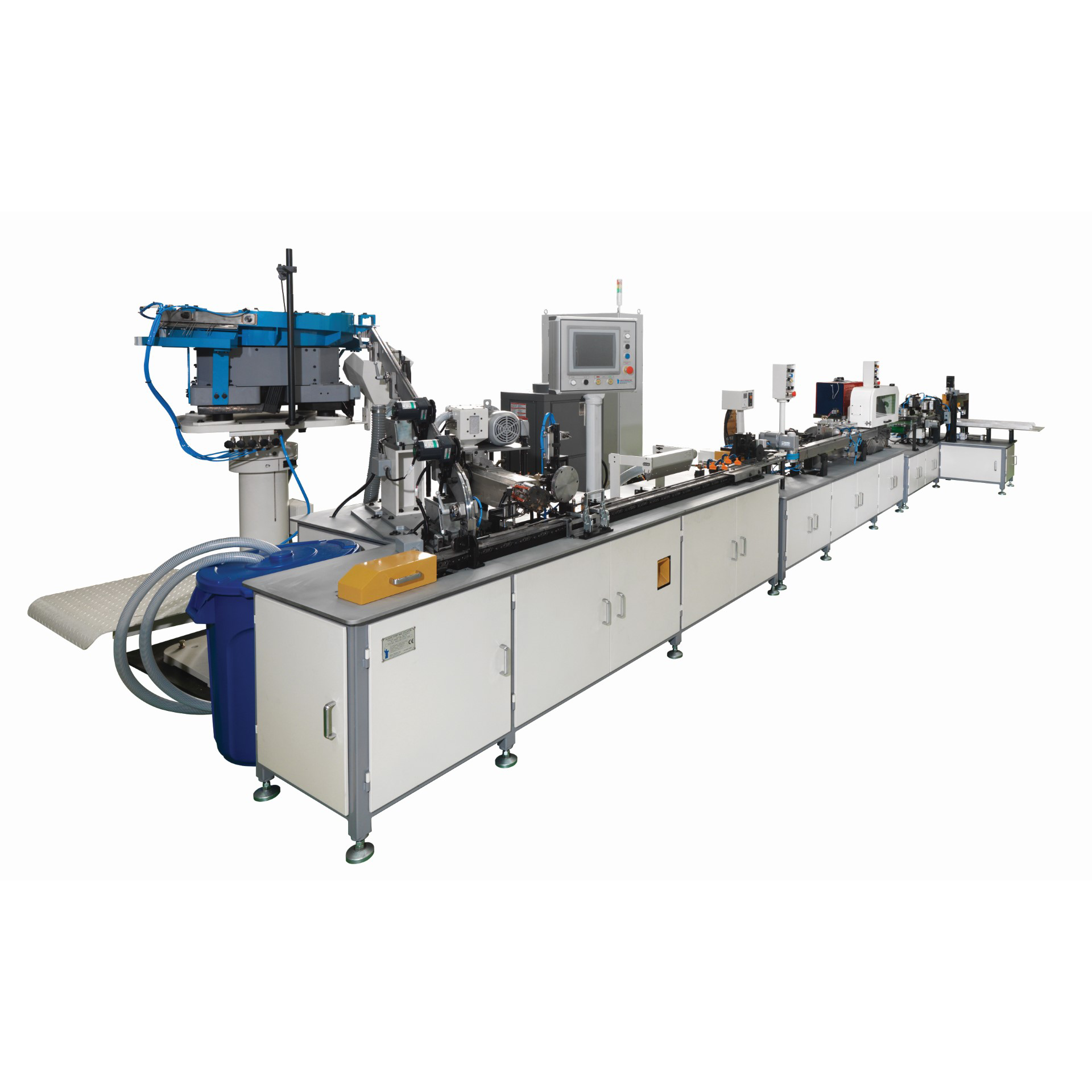

The MS-5 Plastic Strip Collator from ZEUS TECHNO INC

Plastic Strip Collator MS-5: Elevate your nail production to new heights with the MS-5 Plastic Strip Collator. Operating at a remarkable speed of 2,500 nails per minute, this machine is the epitome of efficiency and precision in nail collation. Its cutting-edge plastic strip collation technology, combined with versatile coiling capabilities, guarantees consistent and efficient nail manufacturing. The MS-5 is the ultimate solution for meeting your demanding nail production needs.

Watch the video of the MS-5


Watch video

Specifications:

Model:
MS-5
Nail Diameter Range:
2.5 - 3.77 mm (0.099 - 0.148 inch)
Nail Length Range:
45 - 100 mm (1 3/4 - 4 inch)
Speed:
Up to 2,500 nails/min.
Electric Power:
35 kW max, 3P, 210-230 V, 50/60 Hz
Nail Angle Range:
19 - 23 degree
Nails Per Strip:
20 - 30 pcs
Air Consumption:
500 litters/min.
Air Supply:
6 bar (87 psi), two 1/2 inch hoses
Weight:
4,000 kg (8,800 lbs)
Features:

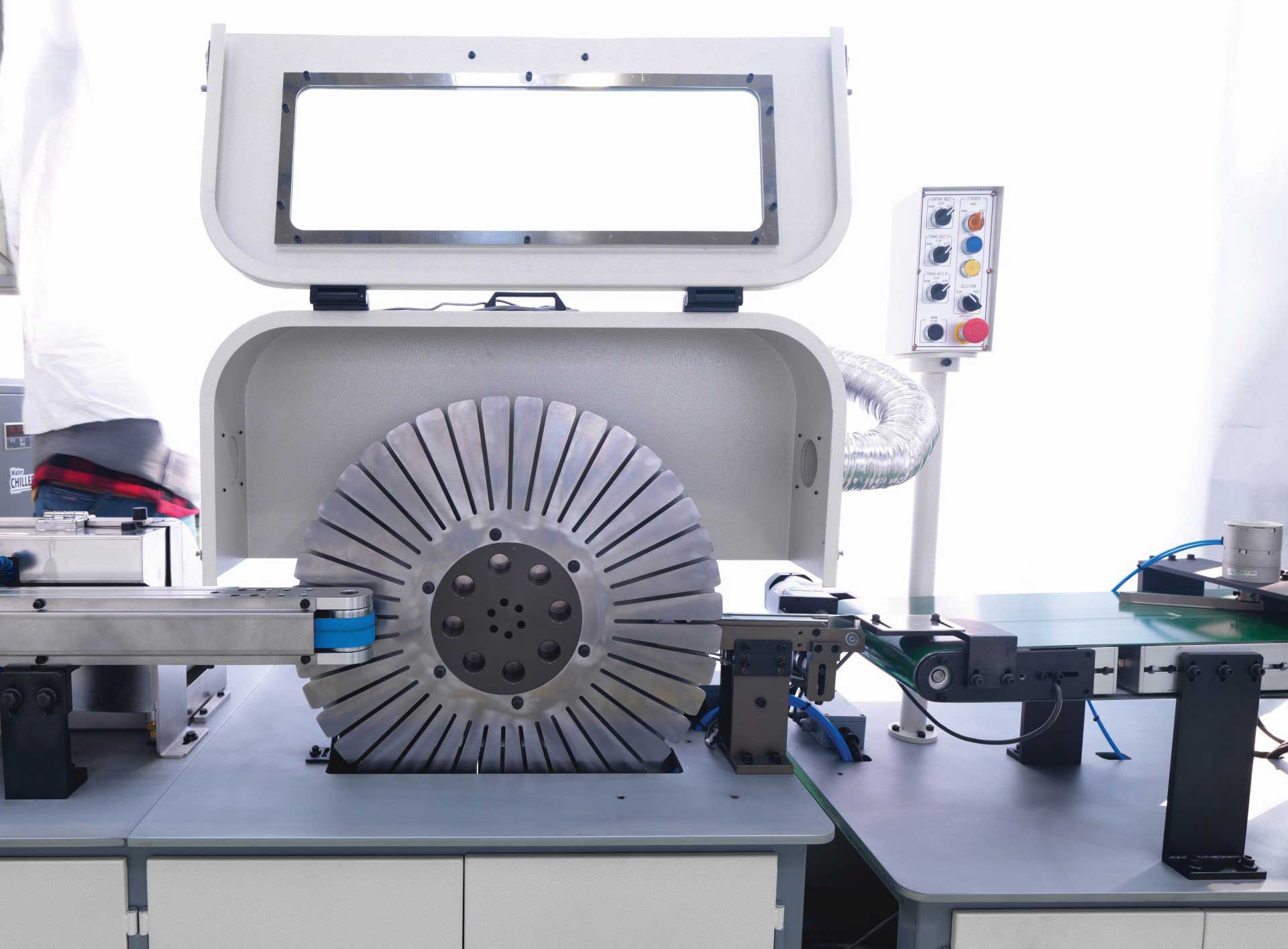

  • Dual collating brush wheels
  • Dual extruder
  • Resin dispenser
  • Flying wheel cutter
  • Dual forming wheels
  • Coating, air cooling and drying
  • Single lane autostacker
  • Stable coating liquid supply
  • Mirrored sets available
