RT-20C

Thread roller

Previous image RT-20C Next image

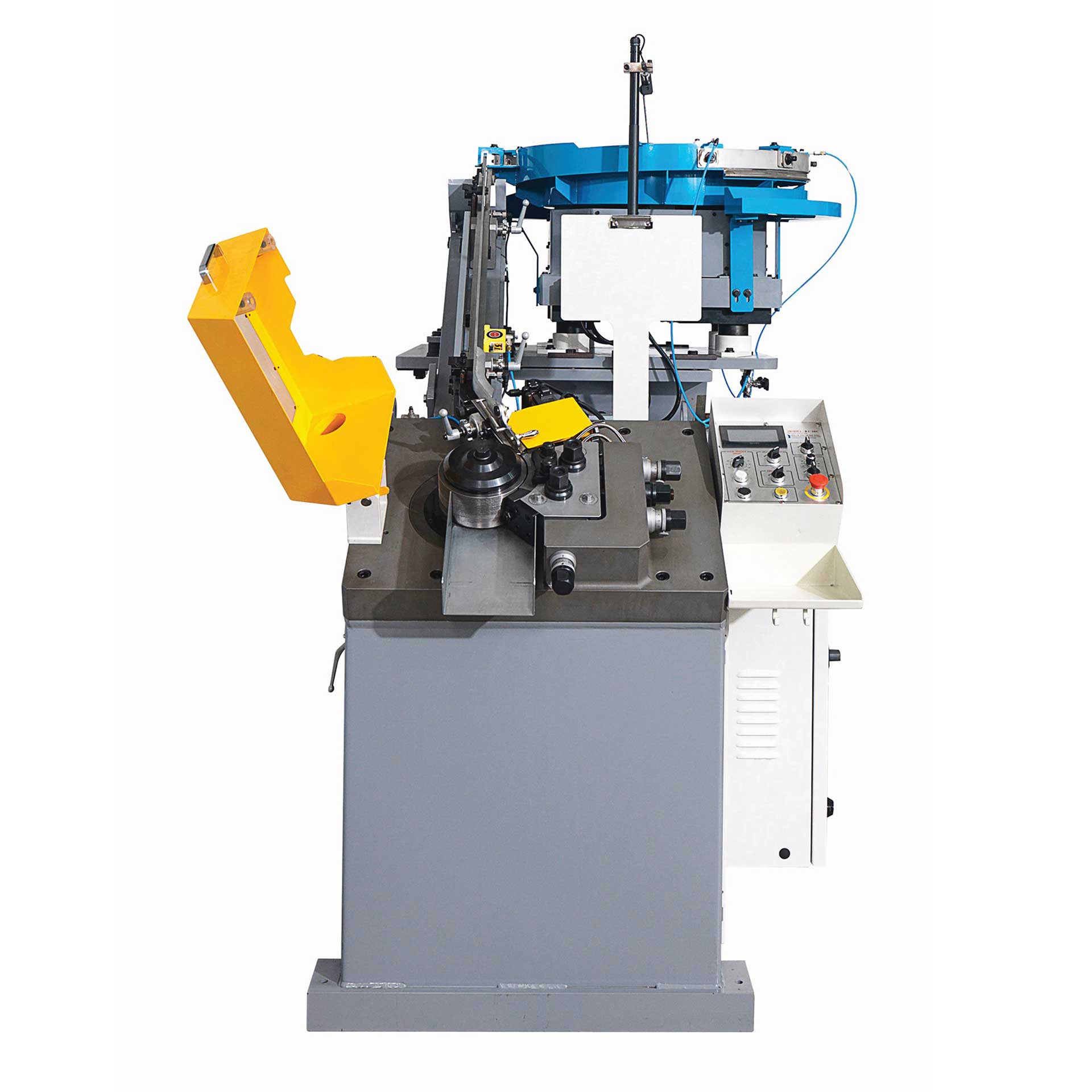

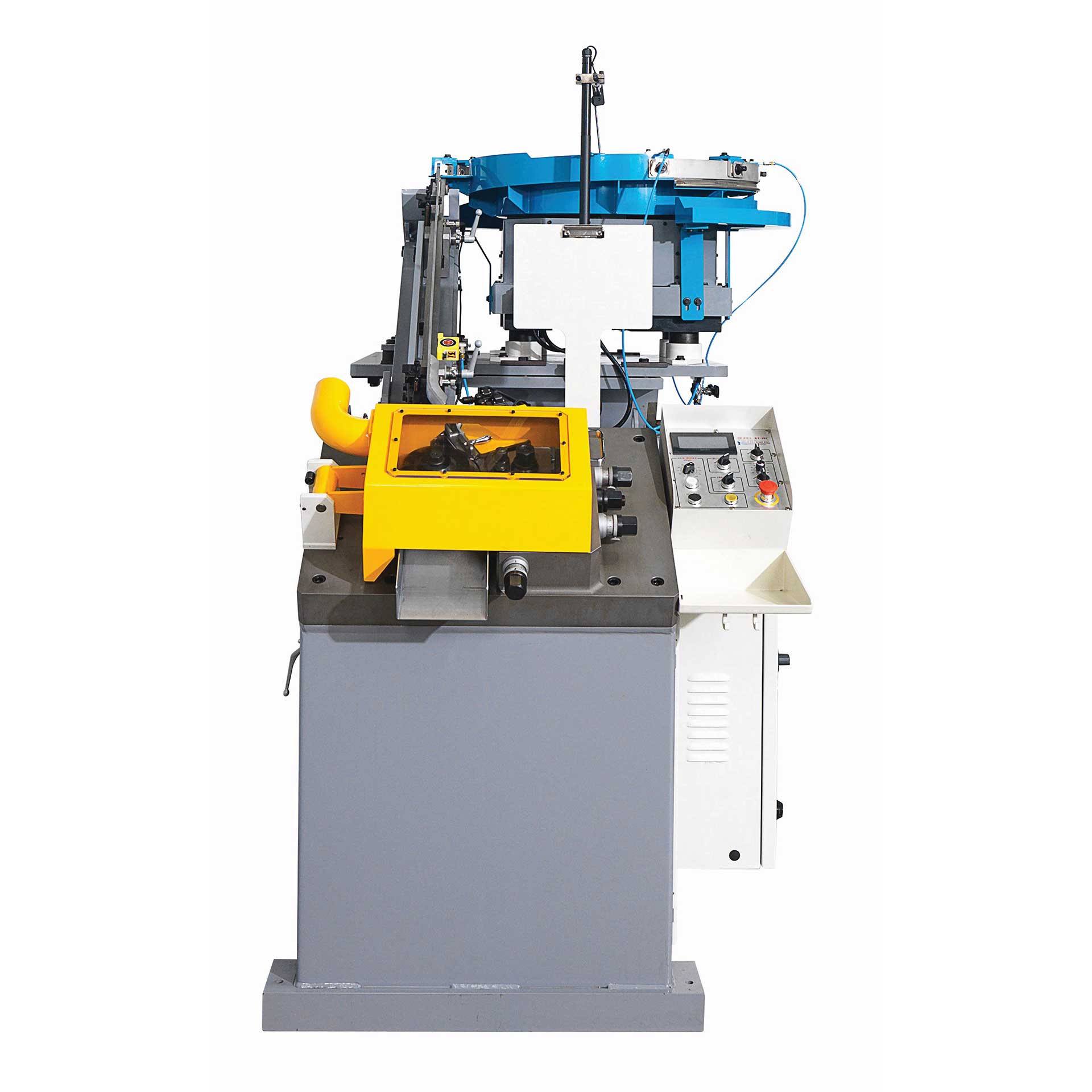

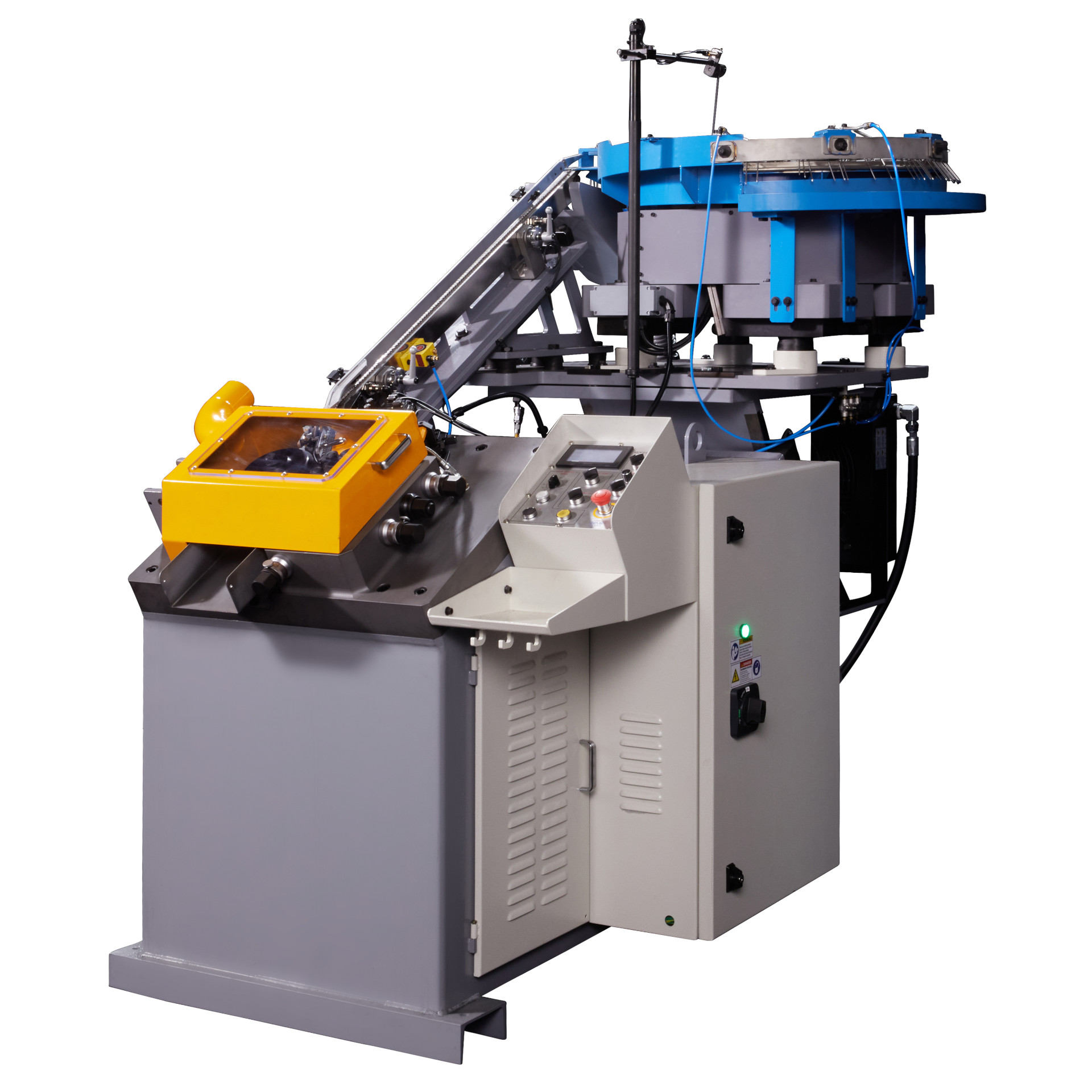

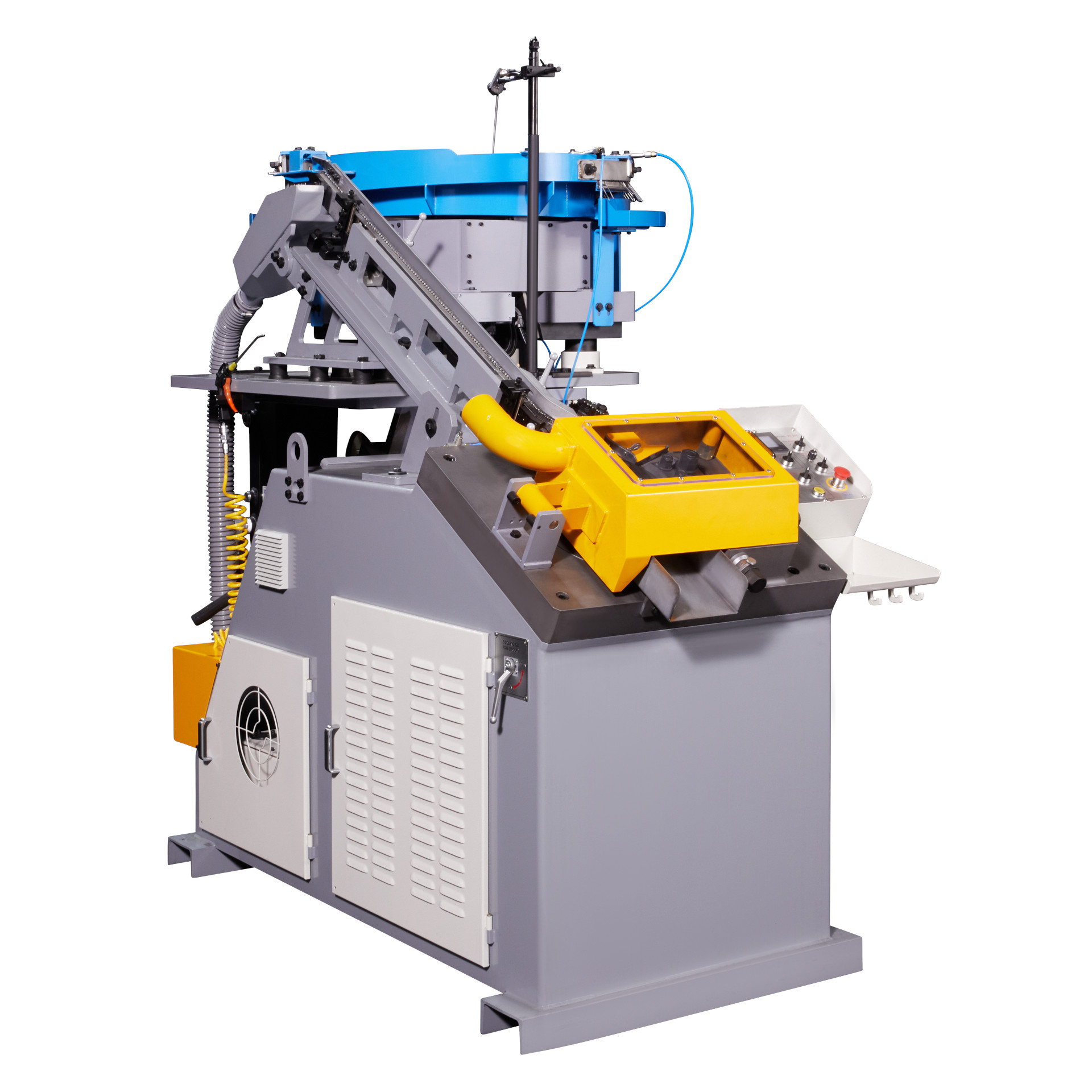

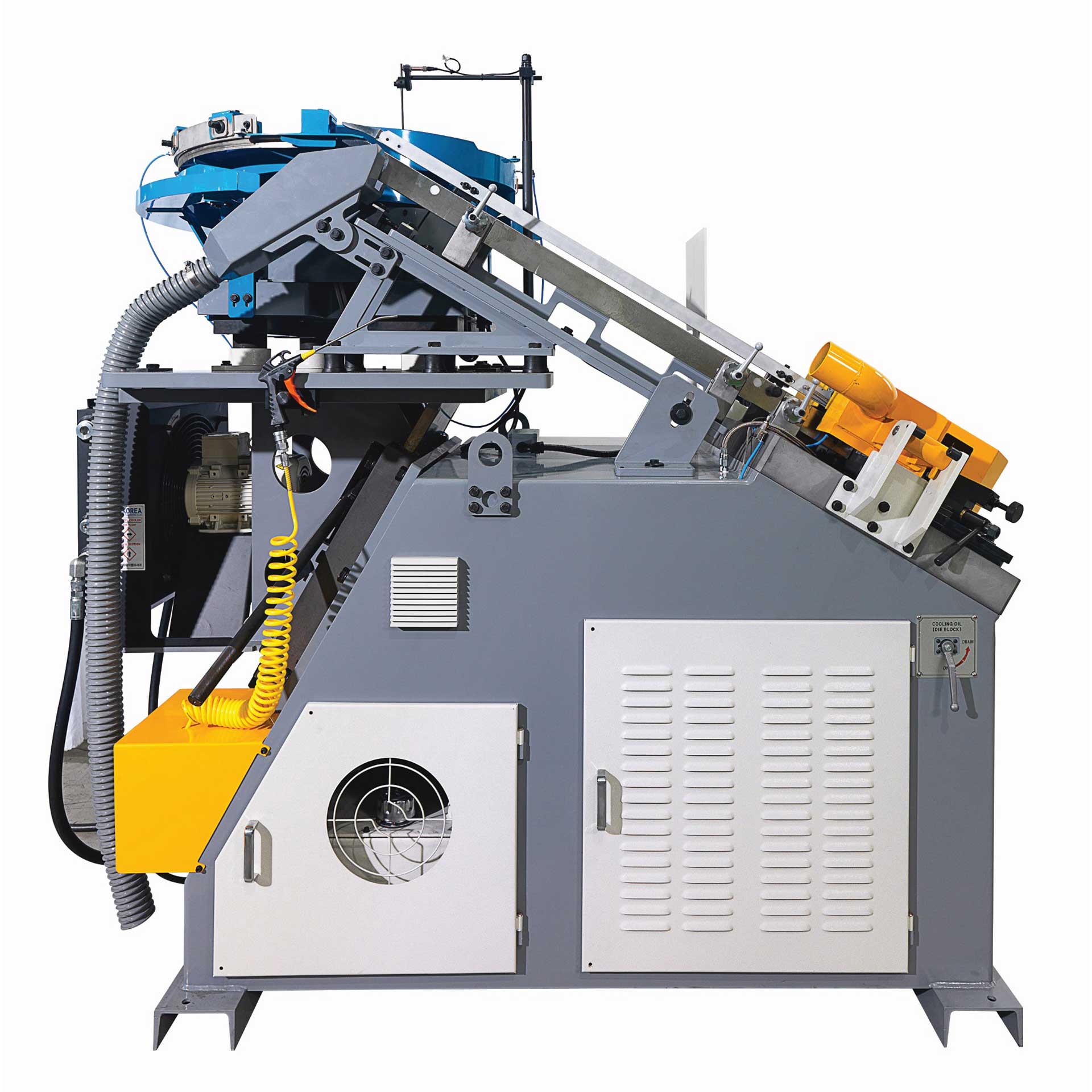

The RT-20C Thread roller from ZEUS TECHNO INC

Thread roller RT-20C is a high-speed and efficient solution for producing ring shank nails. With its Neo PWM vibrating systems and precise nail feeding servo motor driven screw system, it achieves production speeds of up to 2,500 nails per minute. The machine's main driving motor boasts a powerful 15 hp with a full feature vector drive, and its heavy-duty spiral bevel gear enhances durability. The RT-20C offers easy setup and maintenance, along with essential features like a cooling apparatus for extended die life. Its compact design and advanced features make it a valuable asset for nail manufacturing processes.

Watch the video of the RT-20C


Watch video

Specifications:

Machine Description:
Designed for producing standard nails such as spiral shanks and ring shanks, the RT-20 series showcases exceptional versatility and performance. With wire diameter range of 1.2mm to 4mm and nail length between 30mm to 100mm, these thread rollers offer remarkable adaptability for various nail manufacturing needs. The high-speed capabilities of up to 2500 nails per minute ensure rapid production without compromising on quality. Powered by a robust 15 HP main motor and featuring Neo PWM vibrating system, the RT-20 series guarantees consistent, high-quality threads every time. Its user-friendly features, such as the up/down setup for effortless thread height adjustment and fine-tuning adjusting bolt, further contribute to its reliability and easy operation.
Model:
RT-20C
Nail Diameter Range:
2.1 - 3.77 mm (0.083 - 0.148 inch)
Nail Length Range:
30 - 100 mm (1.181 - 4 inch)
Speed:
Up to 2,500 nails/min.
Electric Power:
15 kW max, 3P, 210-230 V, 50/60 Hz
Air Consumption:
200 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Thread Length Range:
75 mm (3 inch)
Weight:
2,000 kg (4,400 lbs)
Features:
  • Neo PWM vibrating systems.
  • Straight steep down rail: 1250mm length, 30 degrees aligned.
  • High speed nail feeding system, servo motor by Auger.

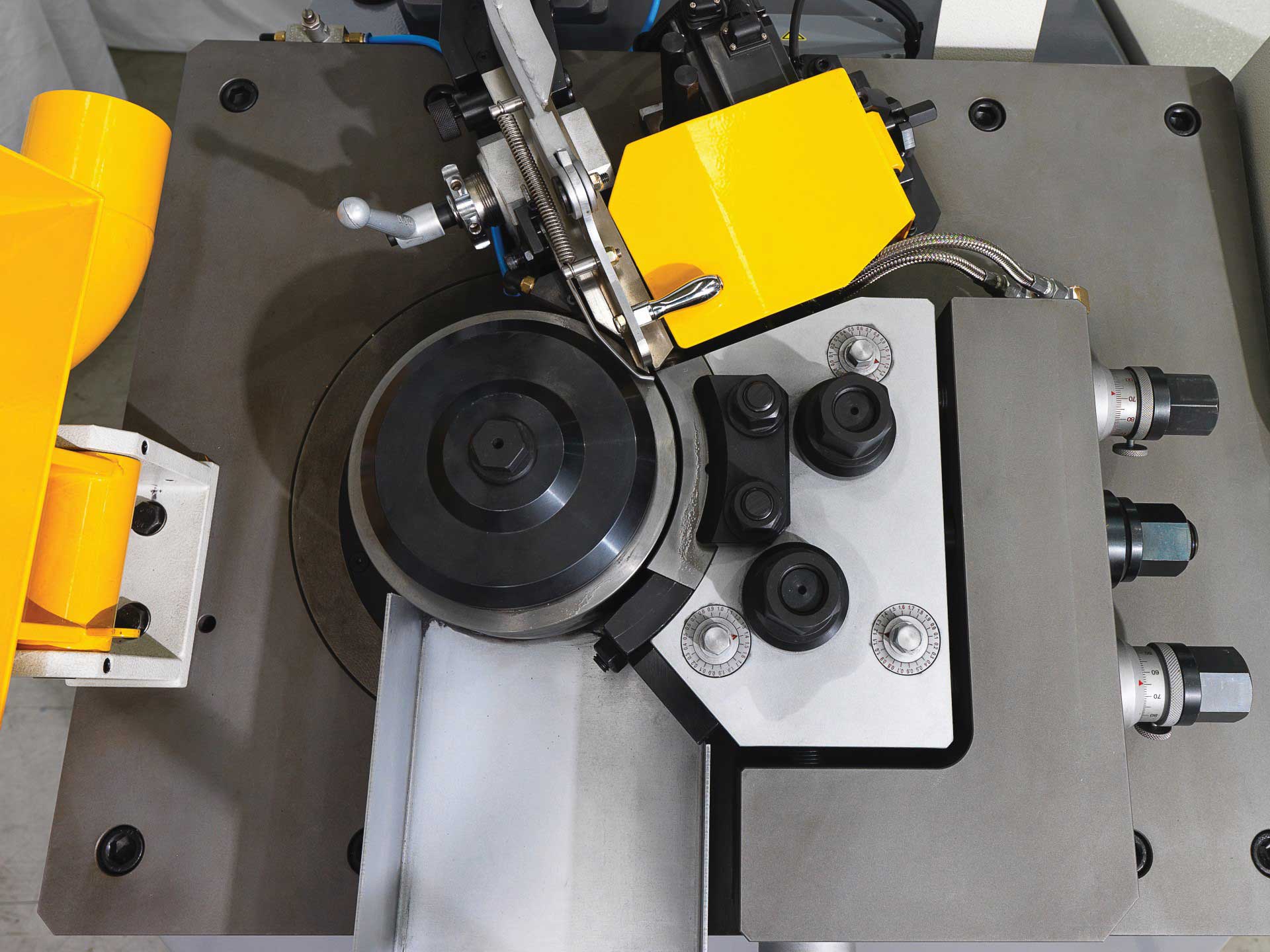

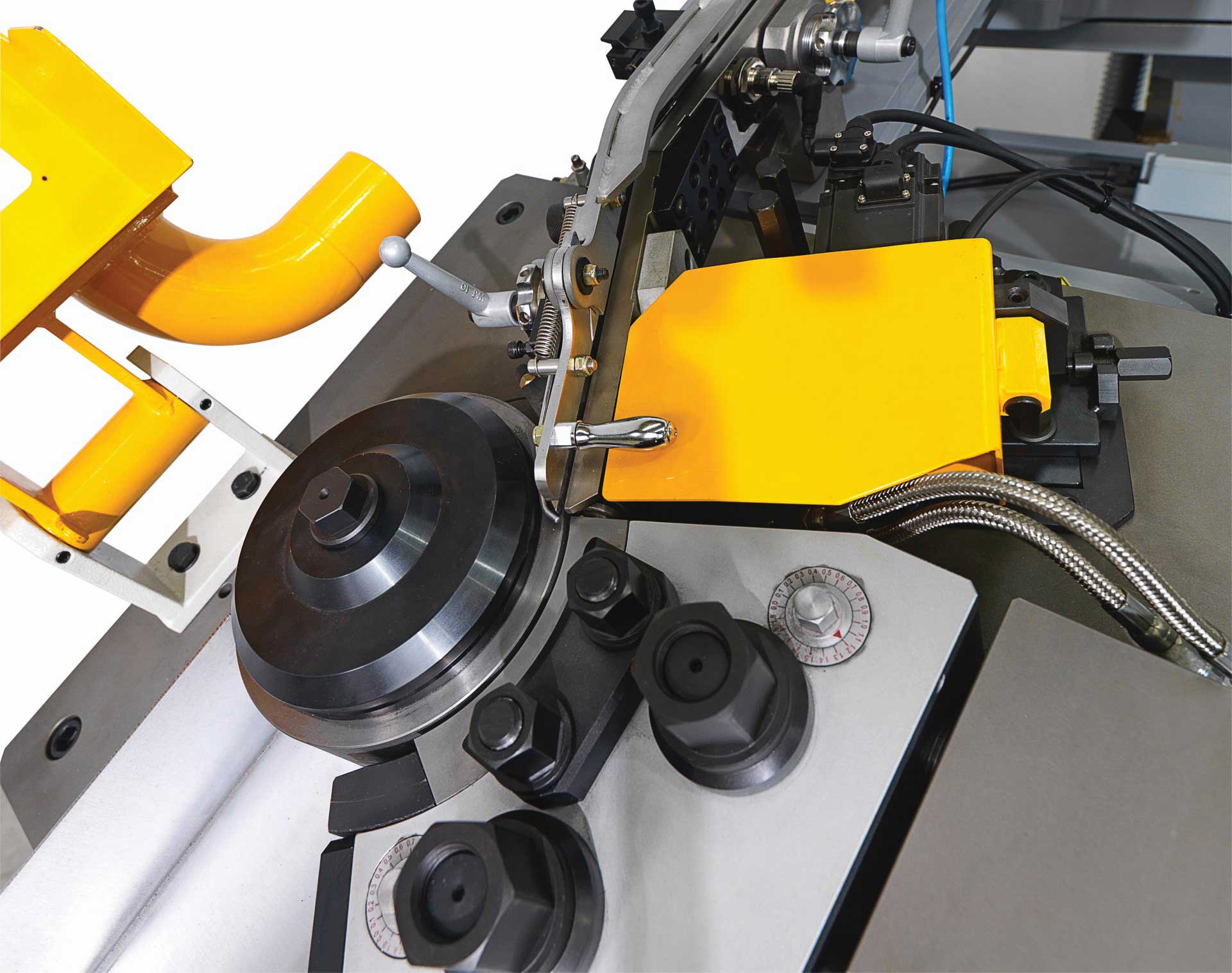

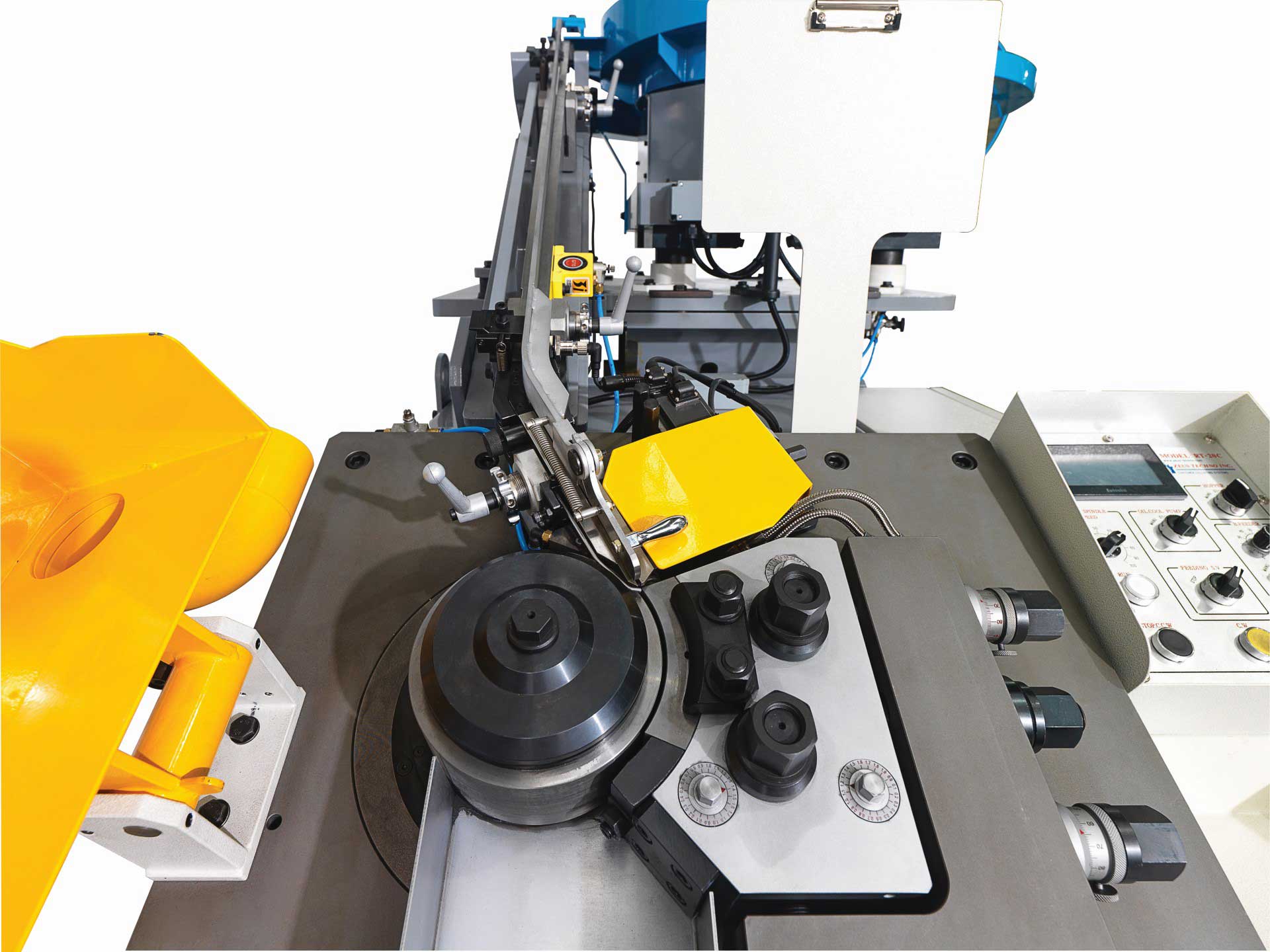

  • Up/down setup for effortless adjustment of the thread height.
  • Fine tuning adjusting bolt ensures production of threads of the highest quality.
  • Powerful 15 hp main driving motor equipped with a full feature vector drive for comprehensive functionality.
  • Main spindle driven by a heavy-duty spiral bevel gear for enhanced durability.

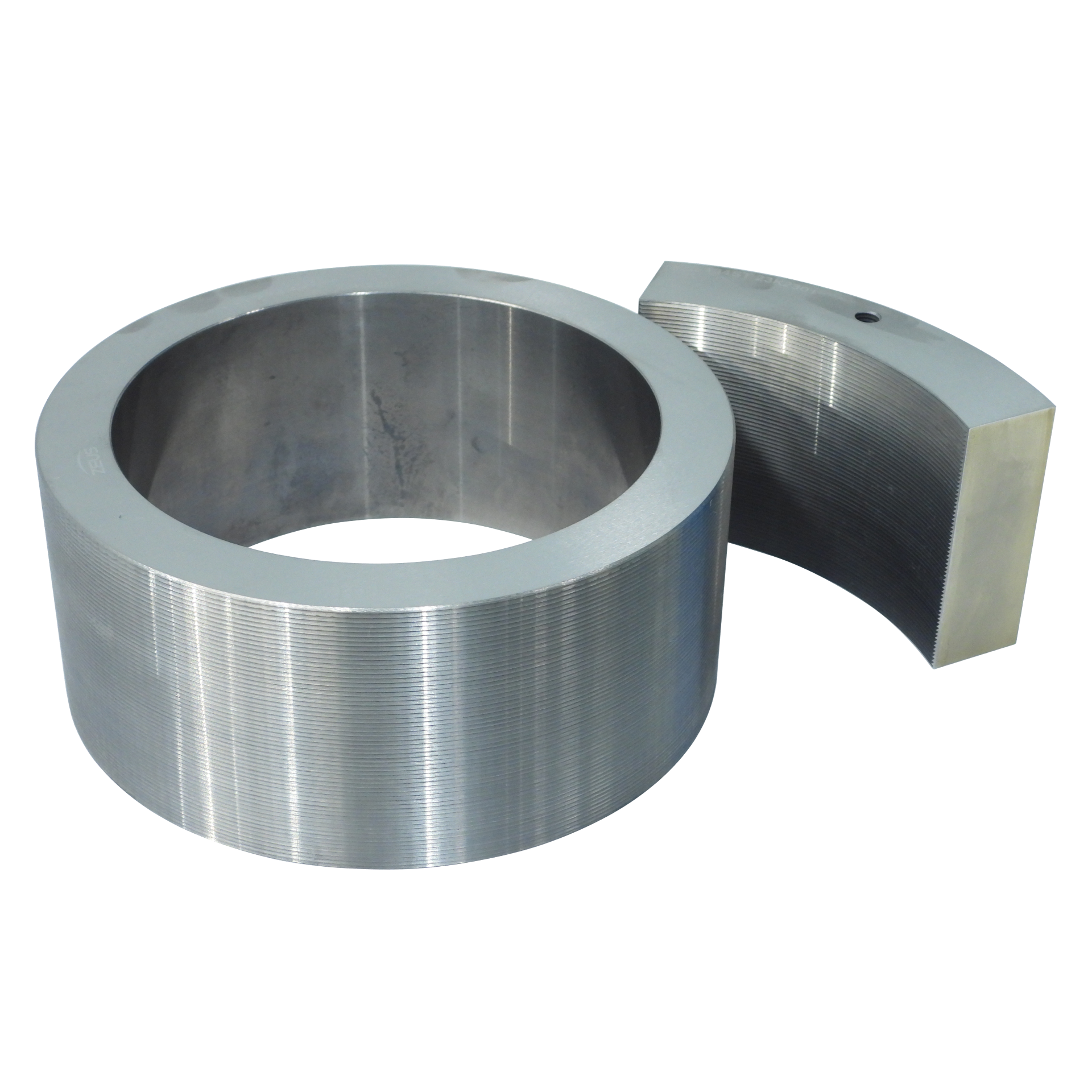

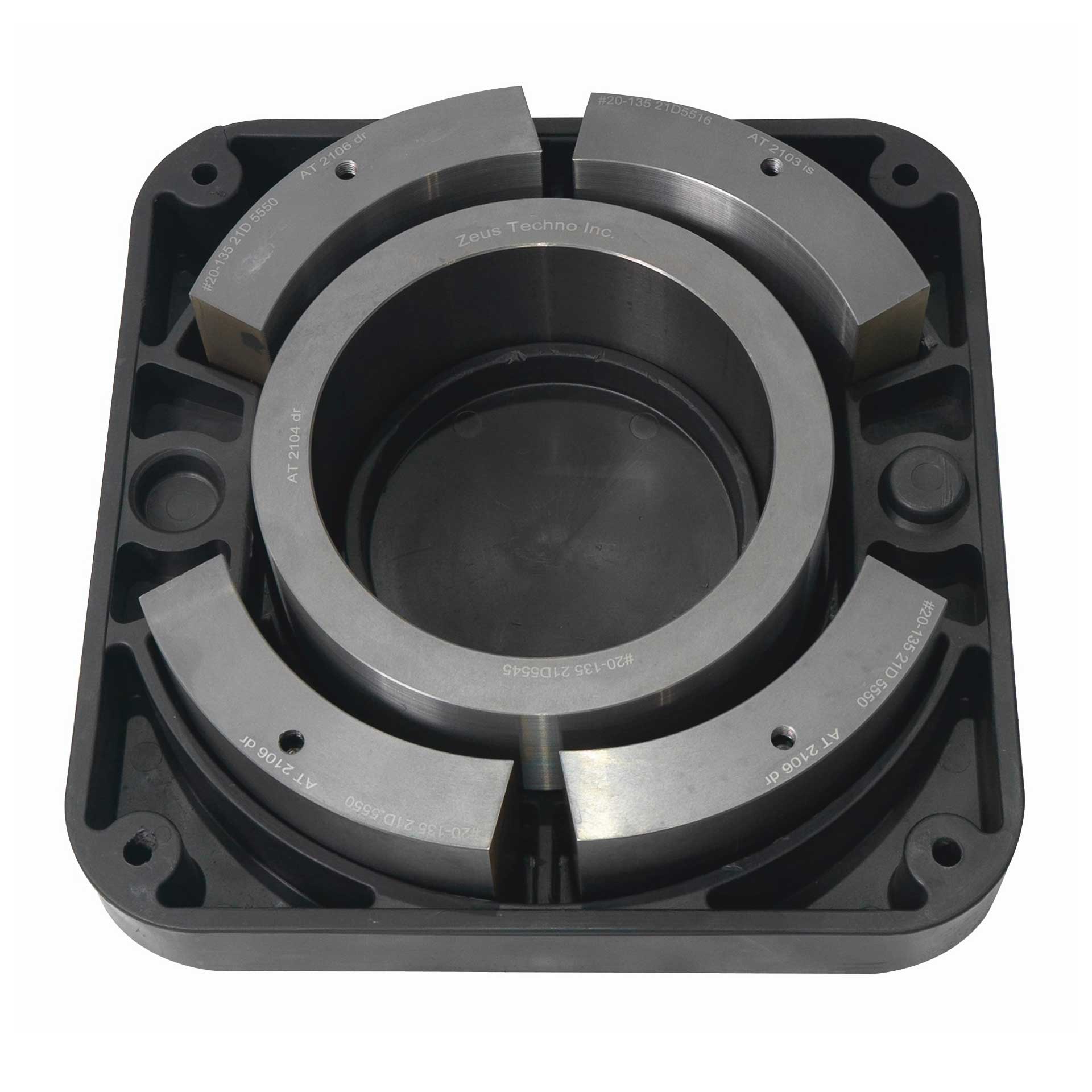

  • Cooling system for both gearbox & die block along with oil cooling radiator.
