B-5

Nail making machine

Previous image B-5 Next image

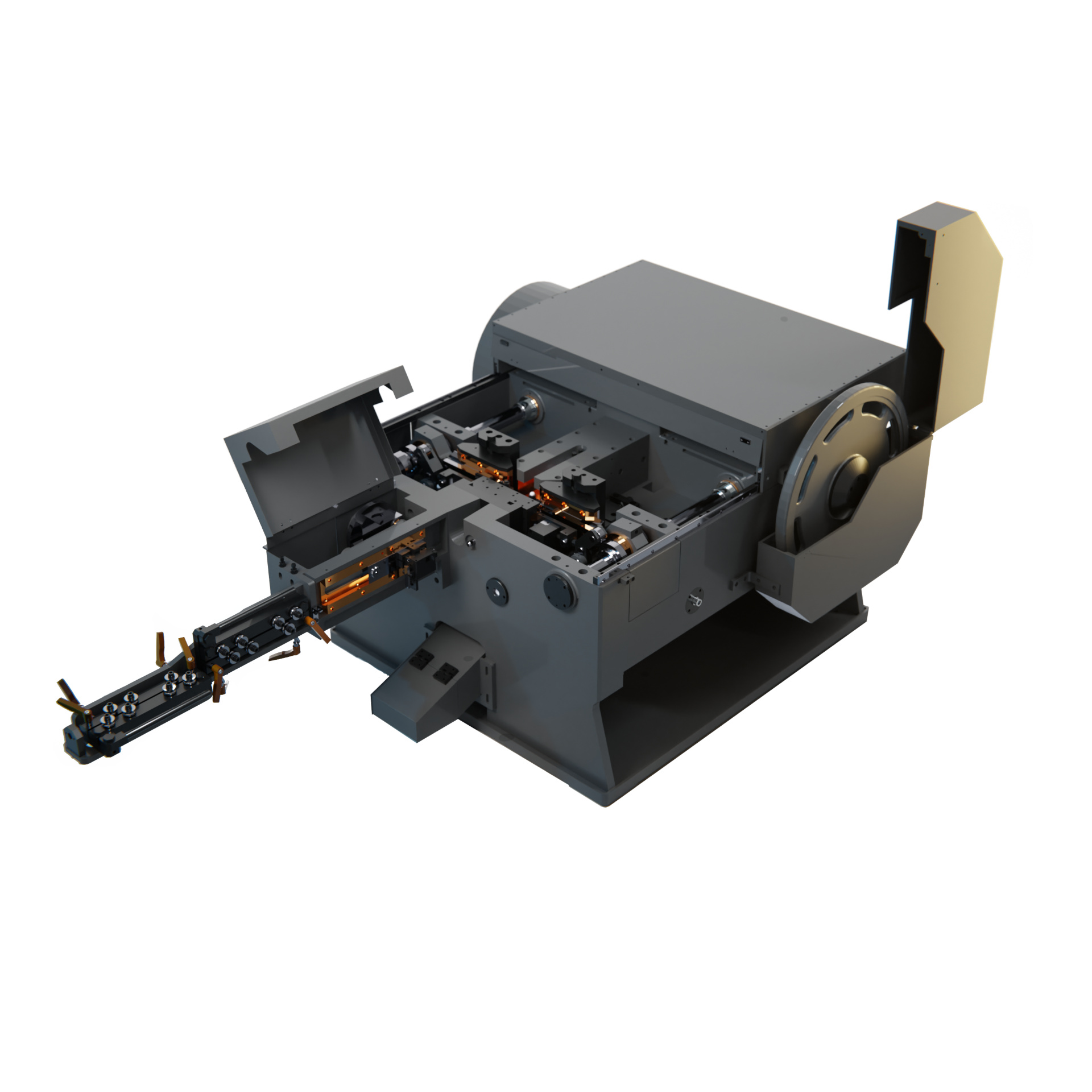

The B-5 Header from ZEUS TECHNO INC

Nail Header B-5 is a high-performance machine known for its precision and speed. With the ability to craft nails of exceptional quality at a rapid pace and with minimal maintenance requirements, it's the perfect choice for nail manufacturing. Its powerful hammer ensures precise nail head engraving, and the sound insulation cover effectively reduces noise. Additionally, the touch screen computer control unit simplifies operation, making it ideal for a wide range of production needs.

Watch the video of the B-5


Watch video

Specifications:

Regular:

Duplex:

Model:
B-5
Nail Diameter Range:
2.2 - 6.0 mm (0.087 - 0.236 inch)
Nail Length Range:
25 - 160 mm (1 - 6 1/4 inch)
Speed:
350 nails/min.
Main Motor:
11 kW (15 HP)
Electric Power:
13 kW max, 3P, 370 - 400 V, 50/60 Hz
Air Consumption:
300 liters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Space Required:
3 200 x 2 000 x 1 300 mm / 10' 6" x 6' 6,7" x 4' 3.2"
Weight:
5,100 kg (11,200 lbs)
Features:
  • Can produce high-quality nails at a high speed with consistency.
  • Nail heads are precisely engraved by using a powerful hammer.
  • Low maintenance cost.
  • Spare parts supply available at a reasonable price range.
  • Sound insulation cover can minimize noise.
  • Touch screen computer control unit.
