B-4

Nail making machine

Previous image B-4 Next image

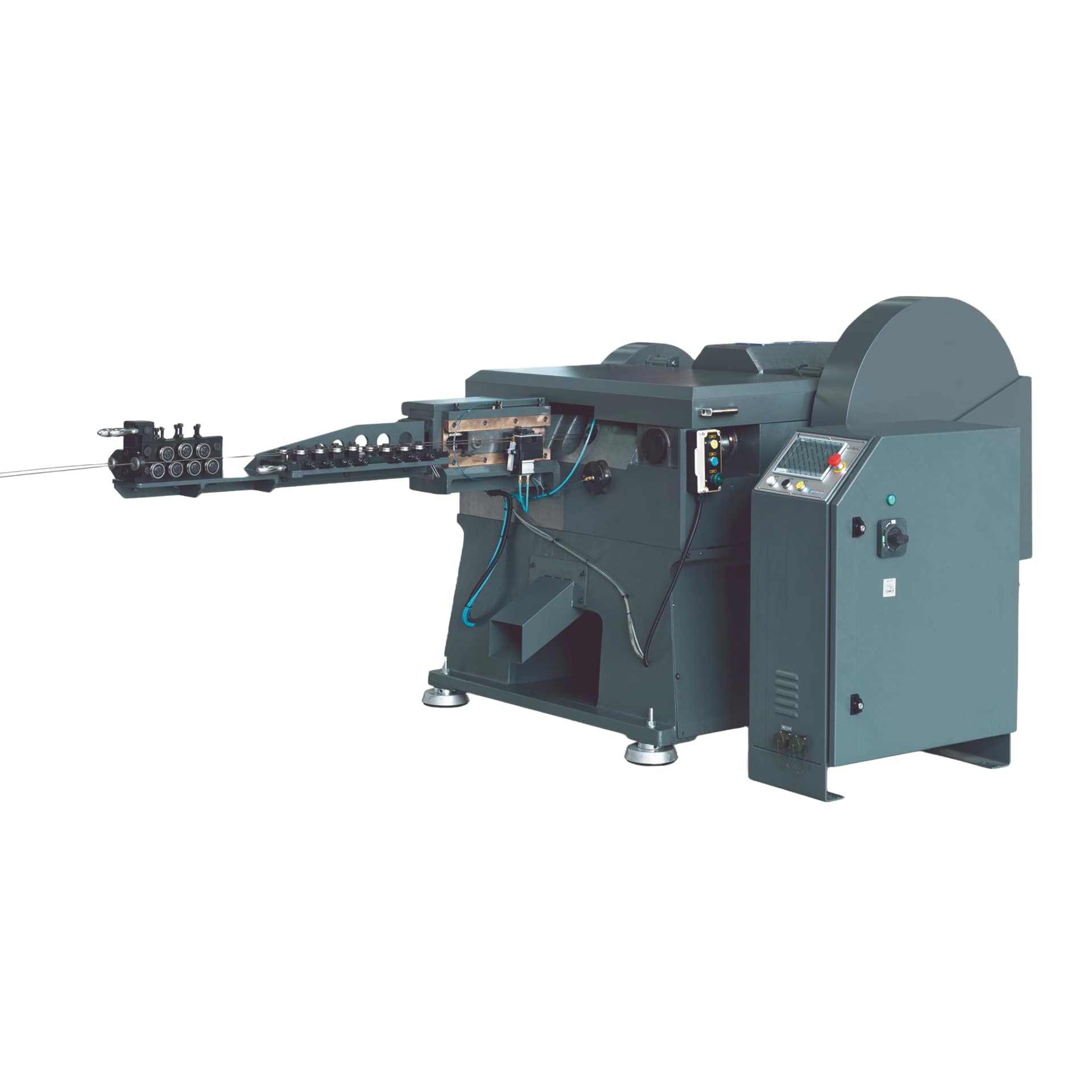

The B-4 Header from ZEUS TECHNO INC

Nail Header B-4 is a high-performance machine known for its precision and speed. With the ability to craft top-quality nails at a rapid pace and with minimal maintenance requirements, it's the ultimate choice for nail manufacturing. Its powerful hammer ensures precise nail head engraving, while the sound insulation cover effectively reduces noise. Additionally, the touch screen computer control unit simplifies operation.

Watch the video of the B-4


Watch video

Specifications:

Single Wire:

Double Wire:

Model:
B-4
Nail Diameter Range:
2.0 - 4.15 mm (0.078 - 0.163 inch)
Nail Length Range:
13 - 108 mm (1/2 - 4 1/4 inch)
Speed:
450 nails/min
Tensile Strength:
700 - 900 N/sqmm
Main Motor:
7.5 kW (10 HP)
Electric Power:
8 kW max, 3P, 370 - 400 V, 50/60 Hz
Air Consumption:
300 liters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Weight:
3,000 kg (6,600 lbs)
Features:
  • Can produce high-quality nails at a high speed with consistency.
  • Nail heads are precisely engraved by using a powerful hammer.
  • Low maintenance cost.
  • Spare parts supply available at a reasonable price range.

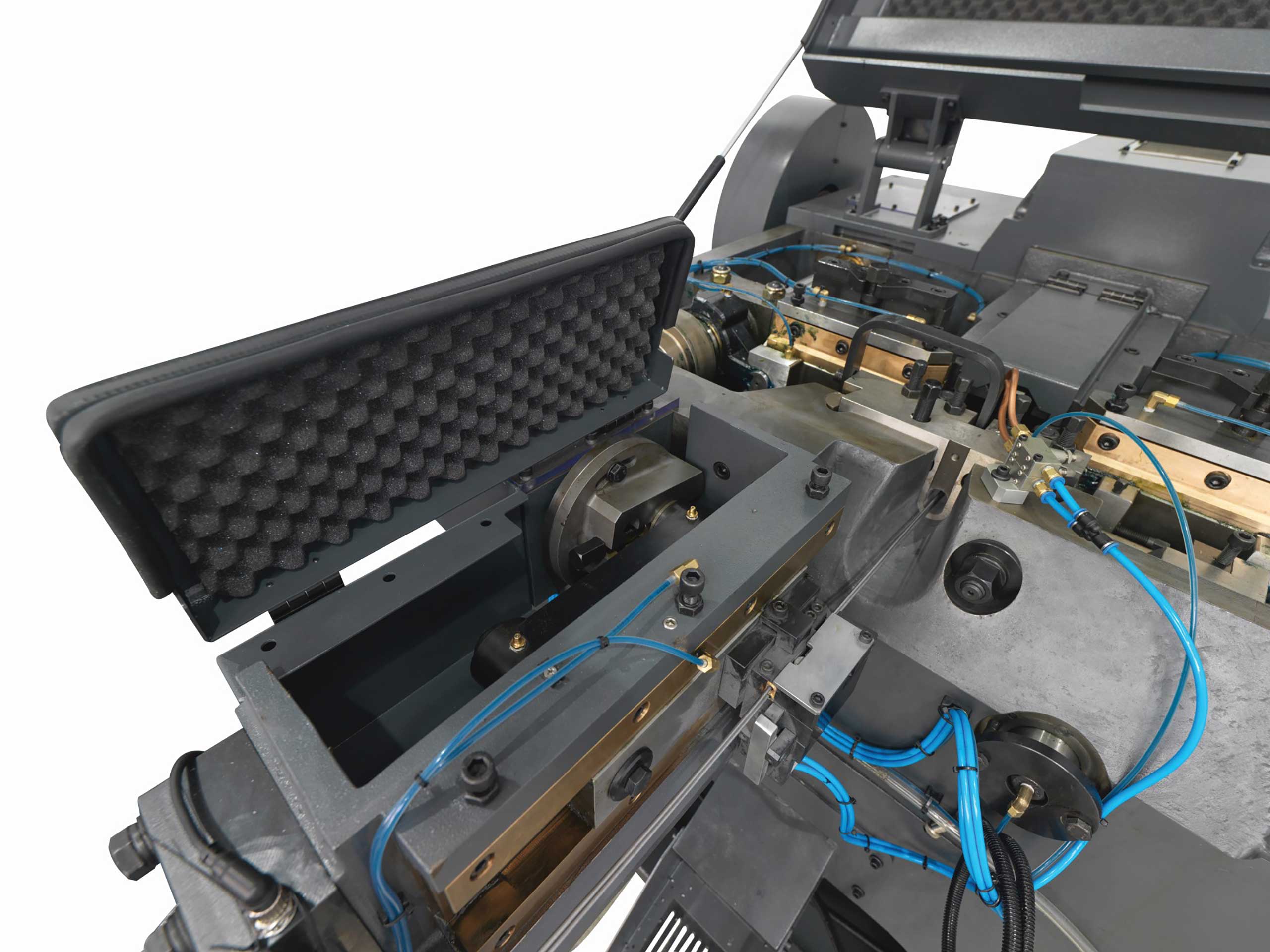

  • Sound insulation cover can minimize noise.
  • Touch screen computer control unit.
