B-3

Nail making machine

Previous image B-3 Next image

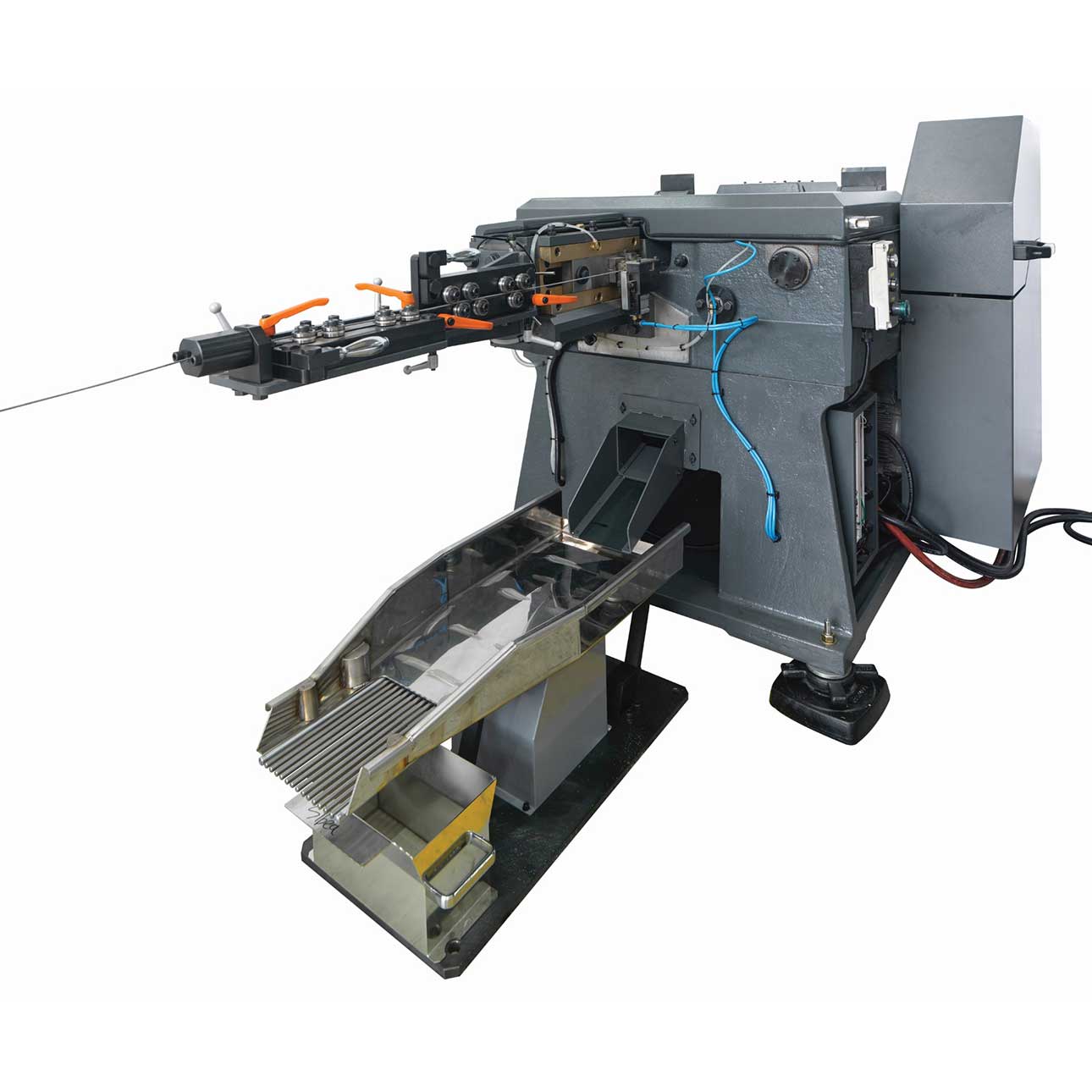

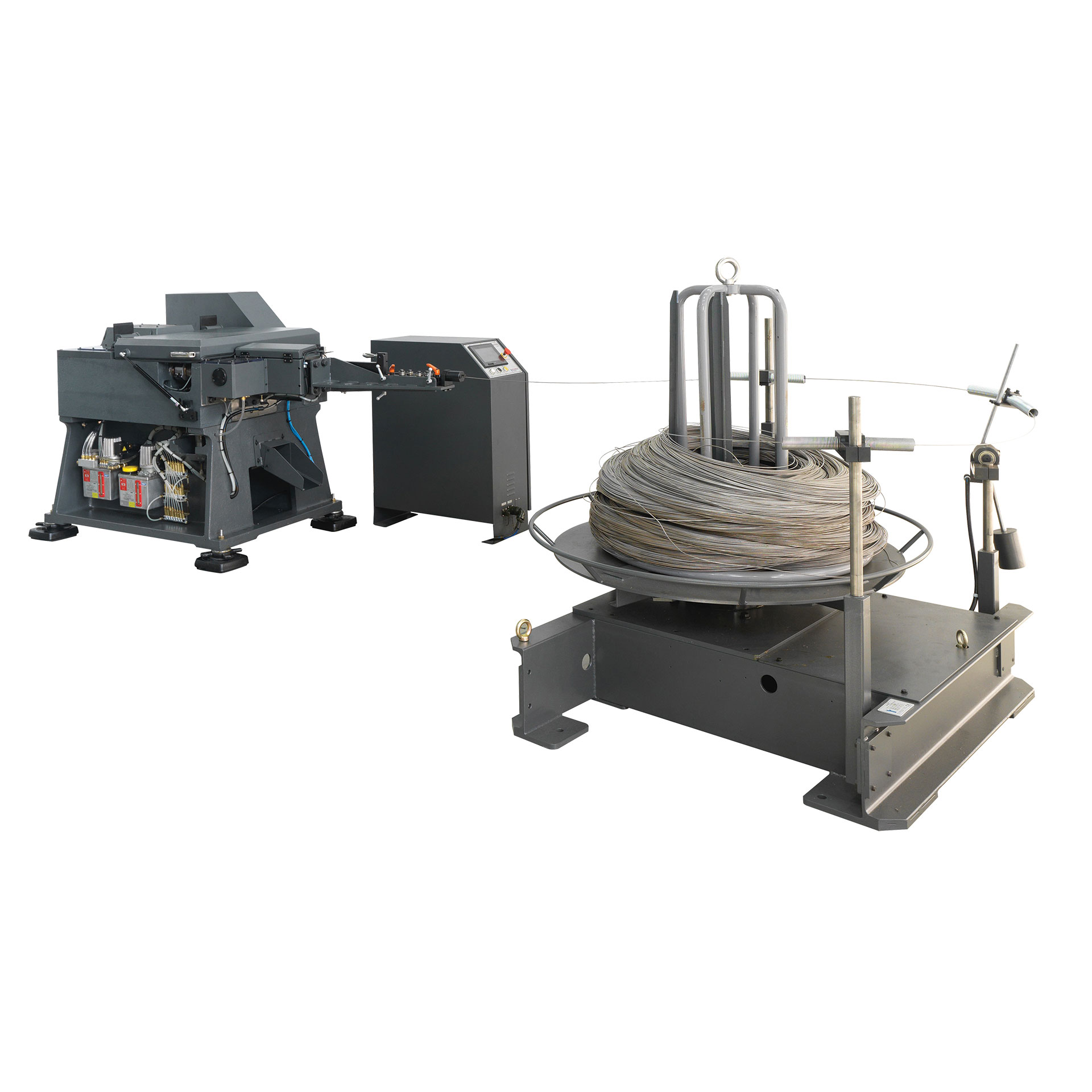

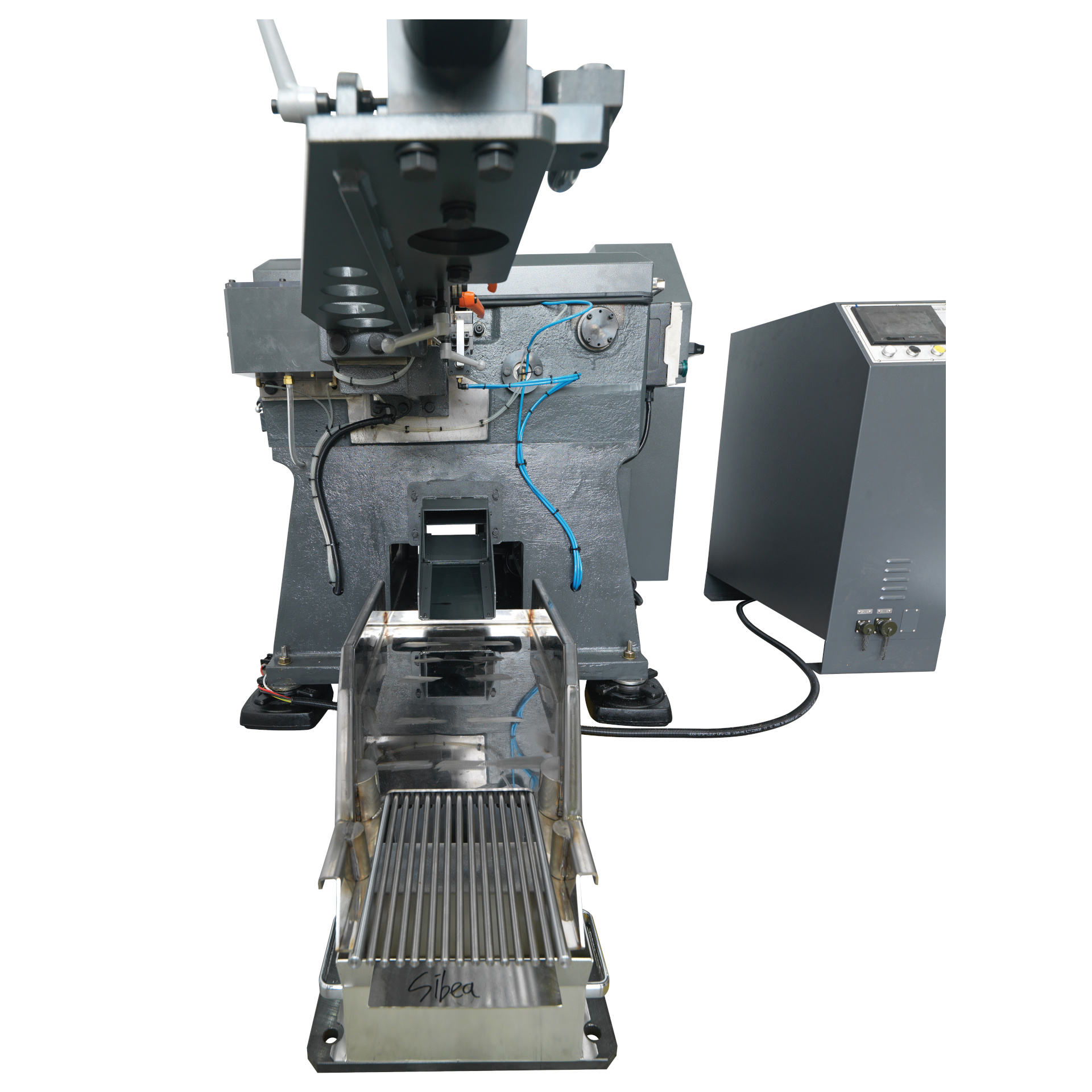

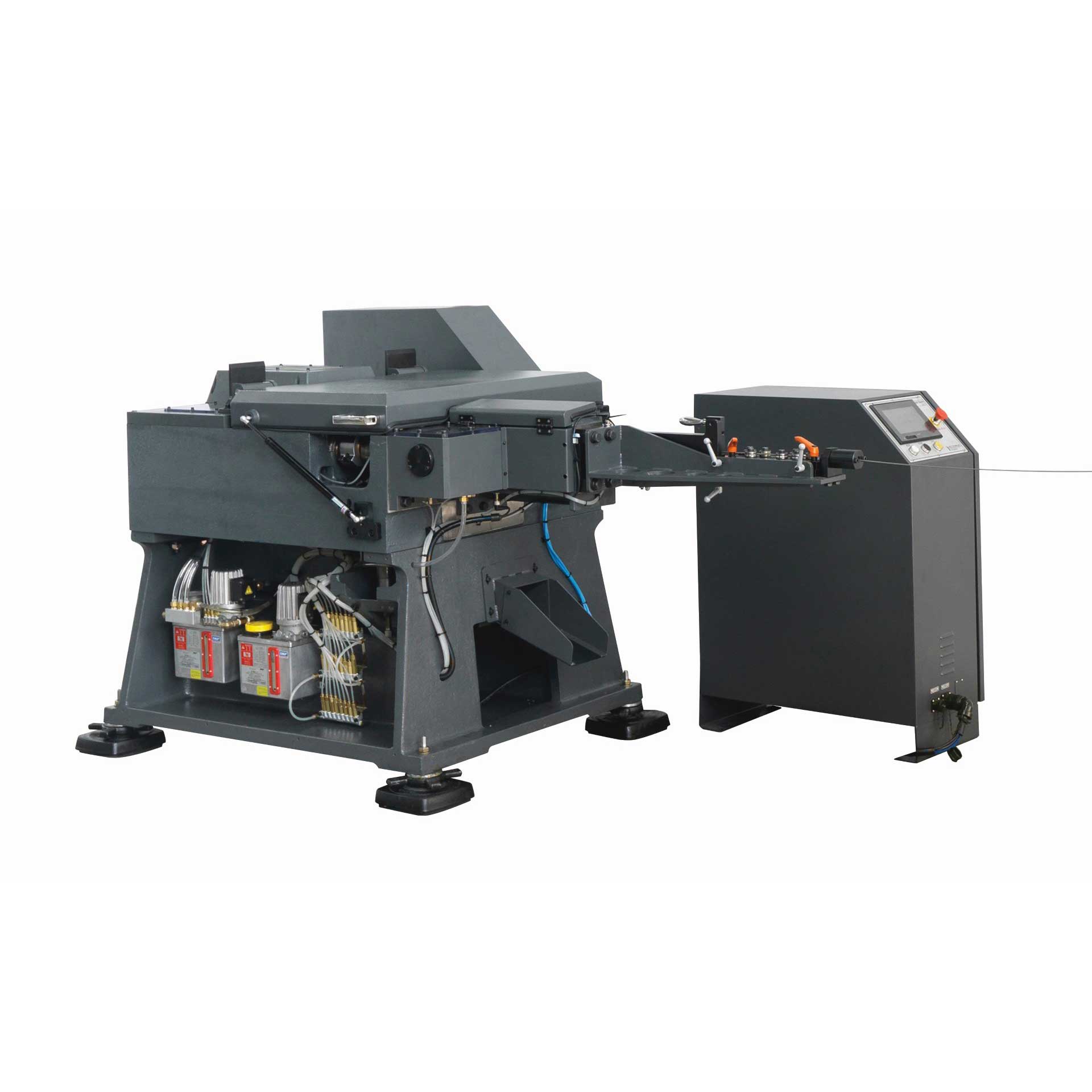

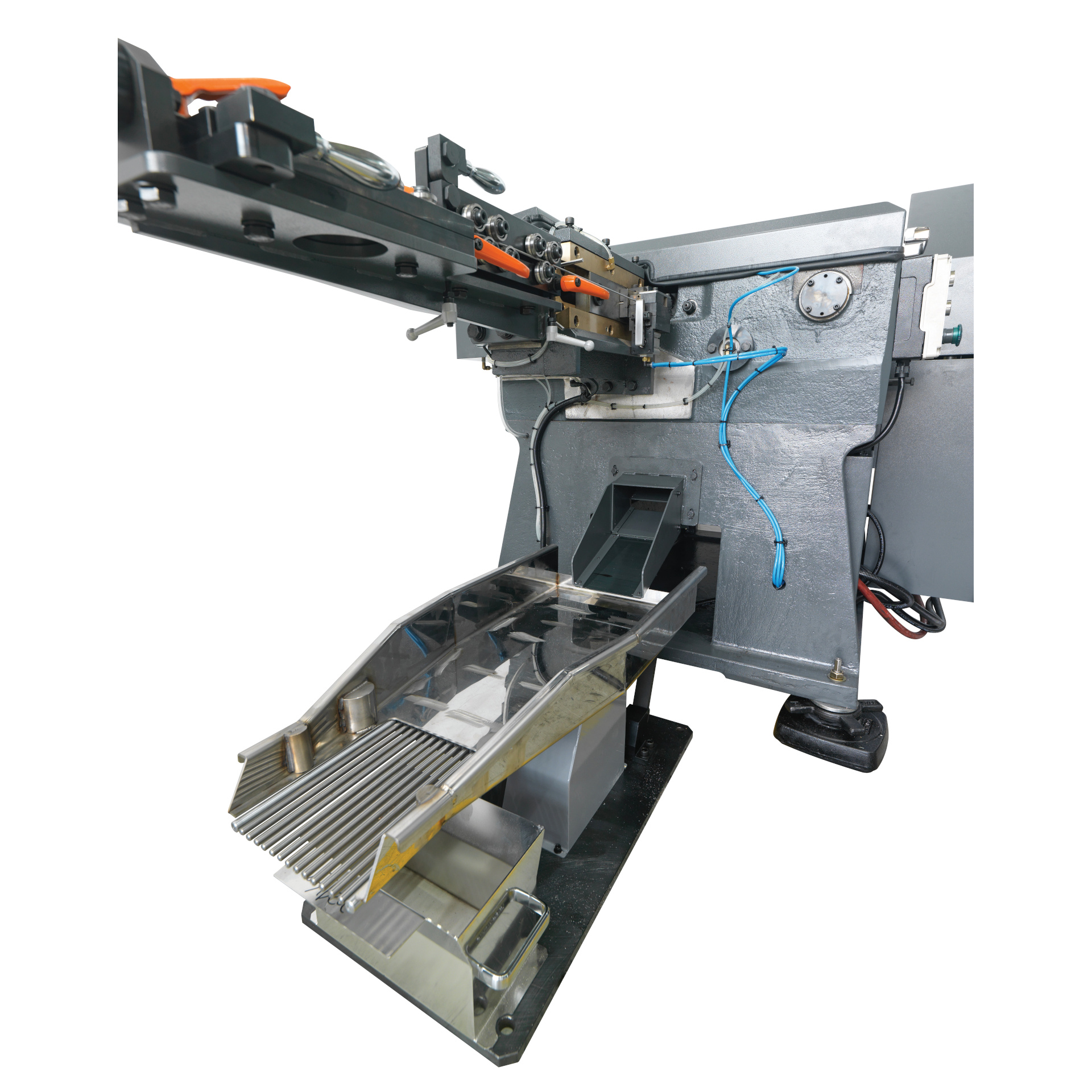

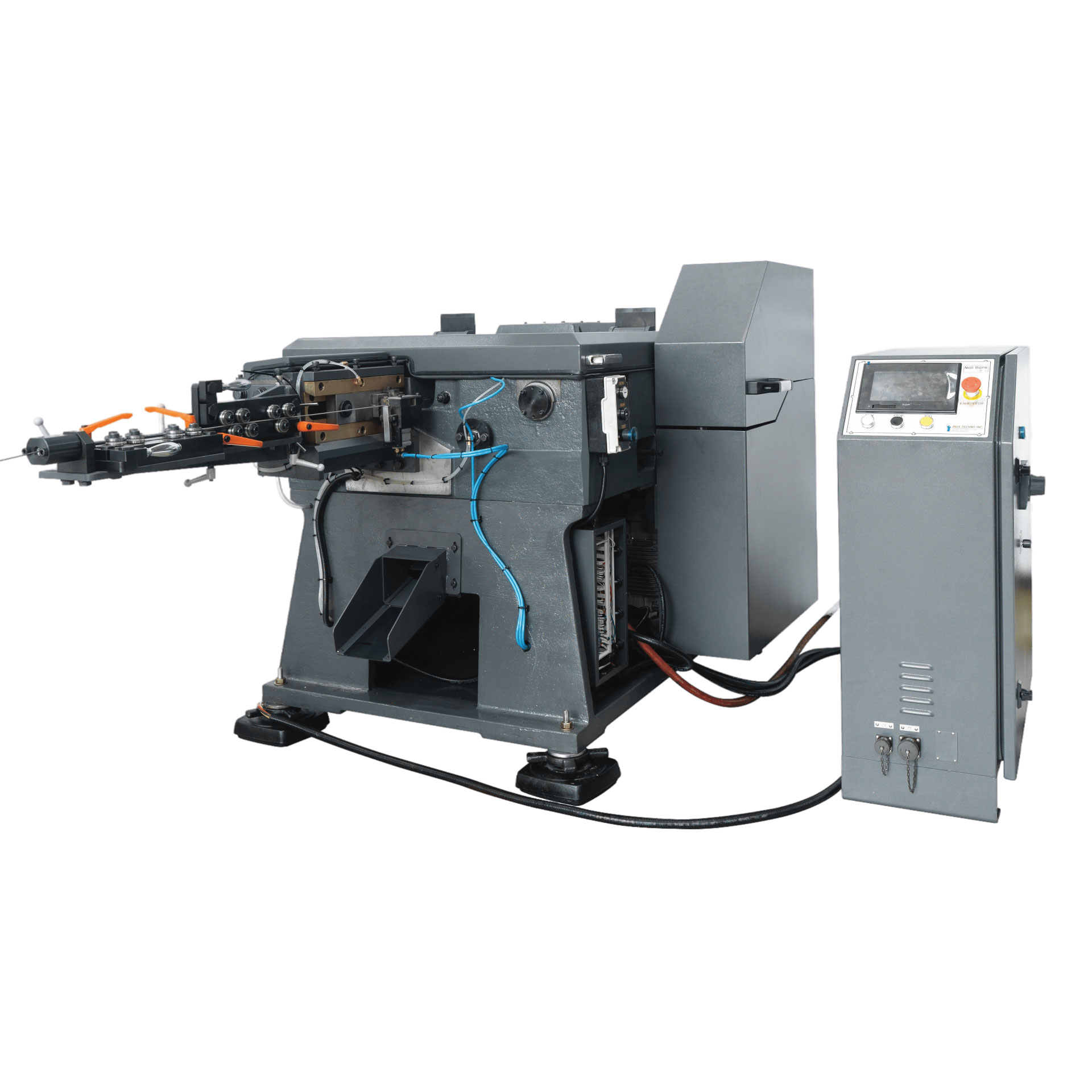

The B-3 Header from ZEUS TECHNO INC

Nail Header B-3 is a high-performance machine that excels in precision and speed. With the capability to craft high-quality nails at a rapid pace and minimal maintenance requirements, it's the ideal choice for nail manufacturing. Its powerful hammer ensures precise nail head engraving, and the sound insulation cover minimizes noise. Plus, the touch screen computer control unit simplifies operation.

Watch the video of the B-3


Watch video

Specifications:

Single Wire:

Double Wire:

Model:
B-3
Nail Diameter Range:
2.0 - 3.43 mm (0.078 - 0.135 inch)
Nail Length Range:
13 - 83 mm (1/2 – 3 1/4 inch)
Speed:
500 nails/min.
Tensile Strength:
700 - 900 N/sqmm
Main Motor:
5.5 kW (7.4 HP)
Electric Power:
6 kW max, 3P, 370 - 400 V, 50/60 Hz
Air Consumption:
300 liters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Space Required:
2 200 x 1 200 x 1 200 mm / 7' 2,6" x 3' 11,2" x 3' 11.2"
Weight:
2,500 kg (5,500 lbs)
Features:
  • Can produce high-quality nails at a high speed with consistency.
  • Nail heads are precisely engraved by using a powerful hammer.
  • Low maintenance cost.
  • Spare parts supply available at a reasonable price range.
  • Sound insulation cover can minimize noise.
  • Touch screen computer control unit.
