MC-5

Dual wire weld coil nail collator

Previous image MC-5 Next image

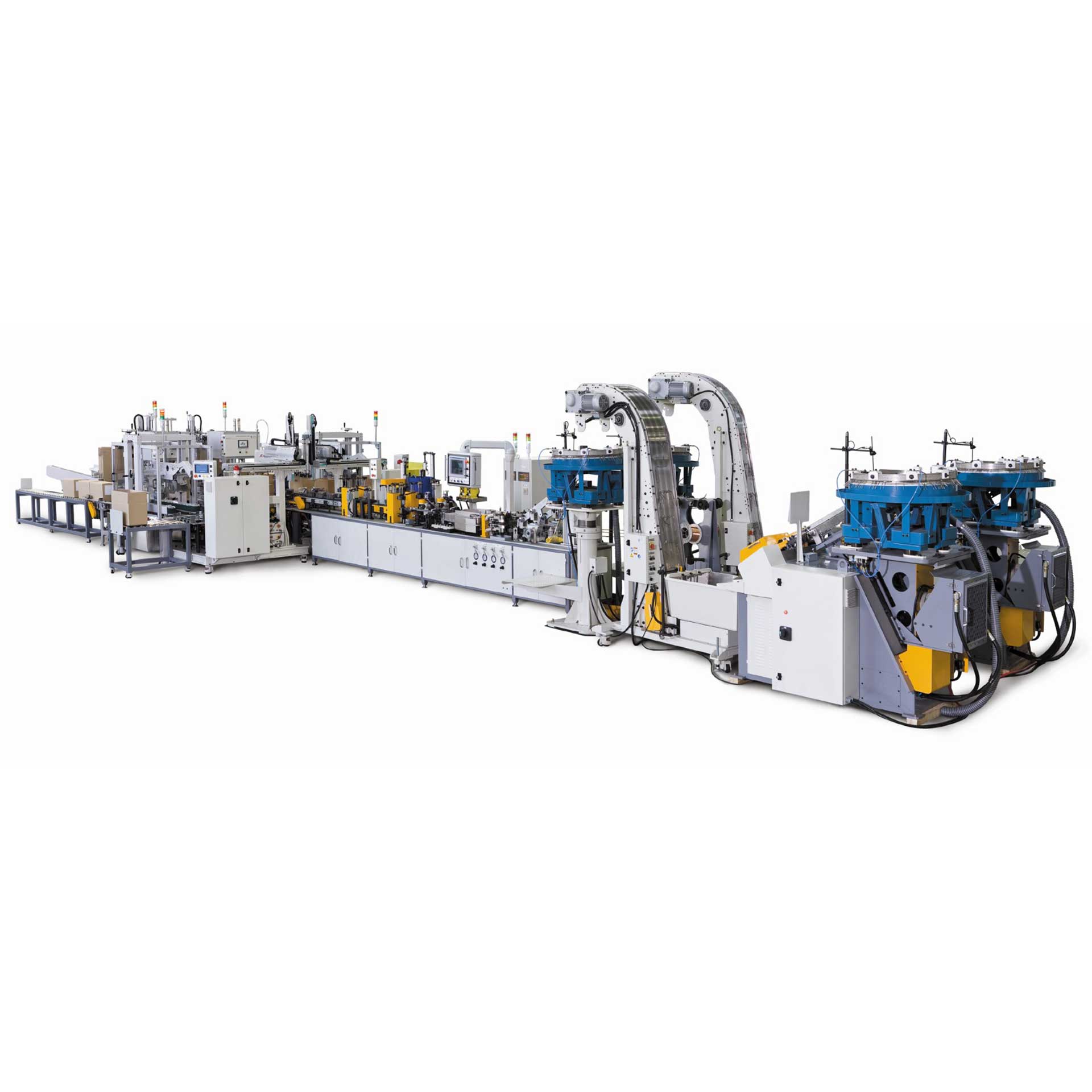

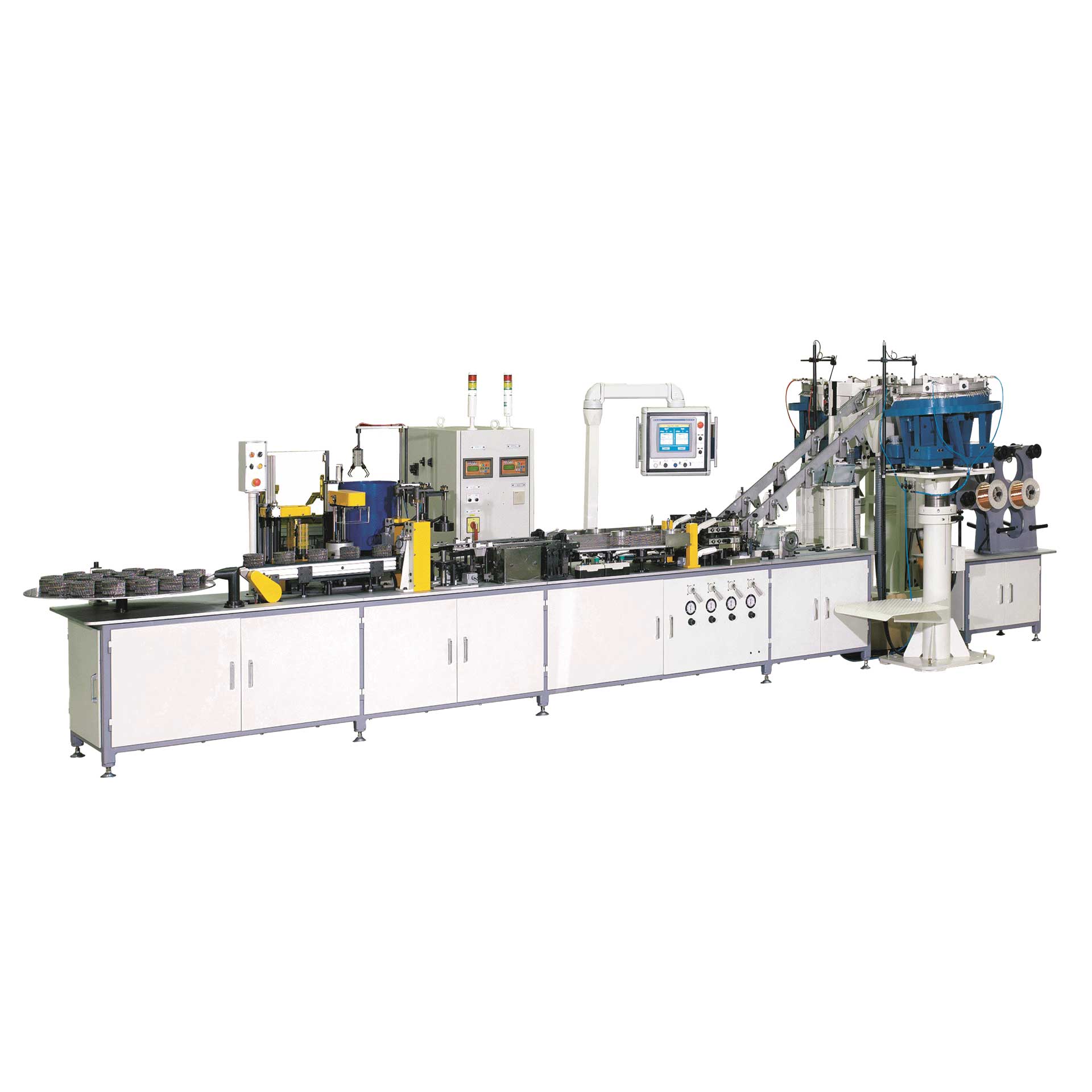

The MC-5 Wire Weld Collator from ZEUS TECHNO INC

Wire Weld Collator MC-5: Precision and speed converge with the MC-5 Wire Weld Collator. Operating at remarkable speeds of up to 5,000 nails per minute, this machine is engineered for high-speed and accurate nail production. The MC-5 seamlessly integrates advanced wire weld collation technology with versatile coiling capabilities, ensuring reliable and efficient nail manufacturing. Its robust construction and technical finesse make it an indispensable asset for meeting the demands of modern nail production. Elevate your production efficiency with the MC-5 and experience precision like never before.

Watch the video of the MC-5


Watch video

Specifications:

Model:
MC-5
Nail Diameter Range:
2.1 - 3.77 mm (0.083 - 0.148 inch)
Nail Length Range:
19 - 100 mm (3/4 - 4 inch)
Speed:
Up to 5,000 nails/min.
Electric Power:
45 kW max, 3P, 210-230 V, 50/60 Hz
Nail Angle Range:
15 - 16 degree
Nails Per Coil:
200 - 400 pcs
Air Consumption:
600 litters/min.
Air Supply:
6 bar (87 psi), two 1/2 inch hoses
Weight:
5,000 kg (11,000 lbs)
Features:
  • Neo PWM vibrating systems.
  • Dual straight steep down rail: 1,700mm length, 30 degrees aligned.
  • Dual high-frequency inverter welder.
  • Dual cutter, coater, coiler: plane and dome-type coiling.
  • Dual coating: Spray roller coating with recycling pump and stainless storage tank type.
  • Accumulating table with warm air dryer.
  • Carrier armed touch screen computer controls.
