CN-90

Wire weld coil nail collator

Previous image CN-90 Next image

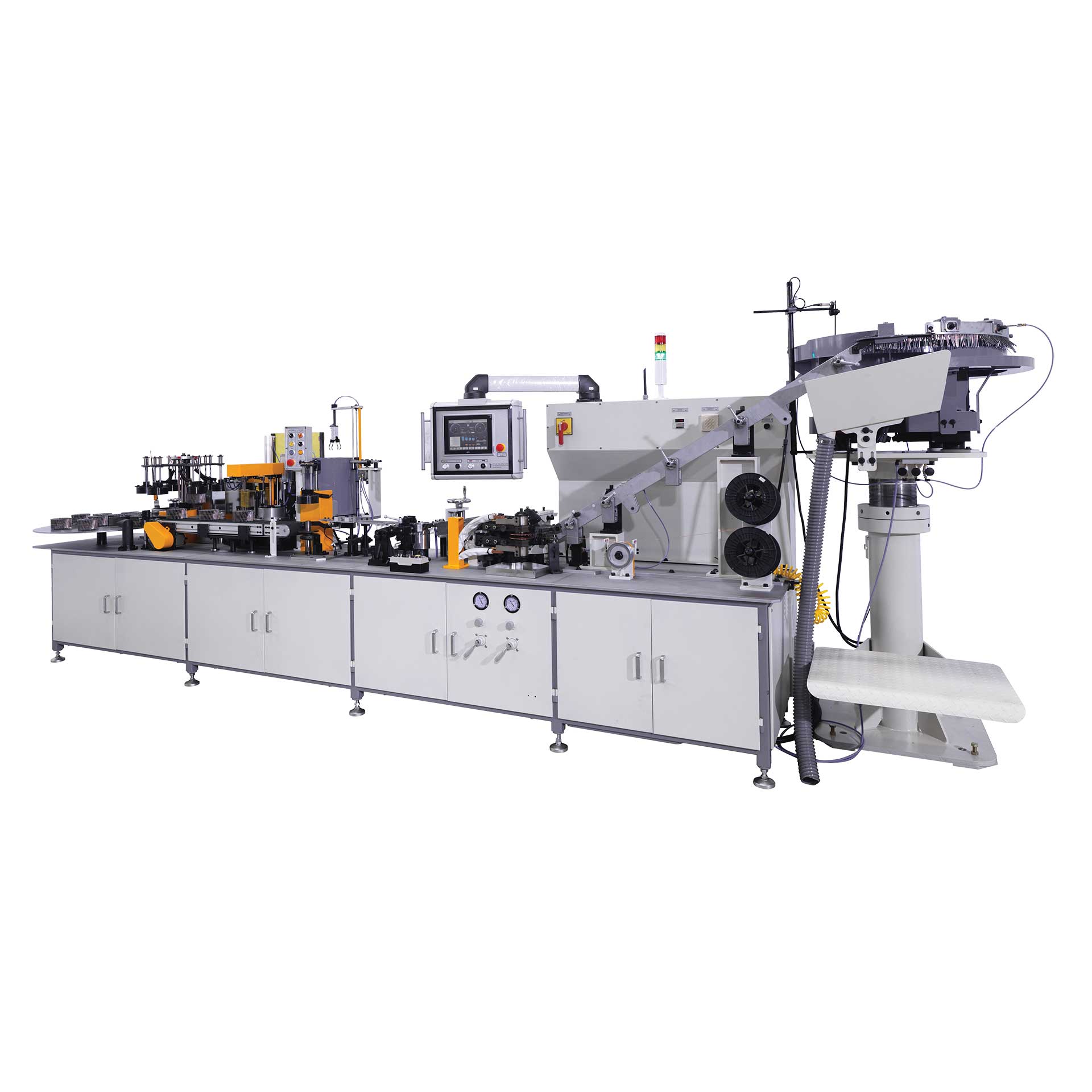

The CN-90 Wire Weld Collator from ZEUS TECHNO INC

Wire Weld Collator CN-90: Precision meets performance with the CN-90 Wire Weld Collator. Operating at speeds of up to 3,000 nails per minute, this machine is designed for high-volume and precise nail production. The CN-90 boasts advanced wire weld collation technology and adaptable coiling options, guaranteeing efficient and accurate nail manufacturing. Its robust construction and technical excellence make it an essential tool for meeting the demands of nail production. Elevate your production capabilities with the CN-90 and witness unmatched precision in action.

Watch the video of the CN-90


Watch video

Specifications:

Model:
CN-90
Nail Diameter Range:
2.1 - 3.77 mm (0.083 - 0.148 inch)
Nail Length Range:
19 - 100 mm (3/4 - 4 inch)
Speed:
Up to 3,000 nails/min.
Electric Power:
28 kW max, 3P, 210-230 V, 50/60 Hz
Nail Angle Range:
15 - 16 degree
Nails Per Coil:
200 - 400 pcs
Weight Kg-Lbs:
3 500 kg / 7,700 lbs
Air Consumption:
300 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Space Required:
4 800 x 1 300 x 1 800 mm / 15' 9" x 4' 3.2" x 5' 10.9"
Weight:
3,500 kg (7,700 lbs)
Features:
  • Neo PWM vibrating systems.
  • Straight steep down rail: 1,700mm length, 30 degrees aligned.

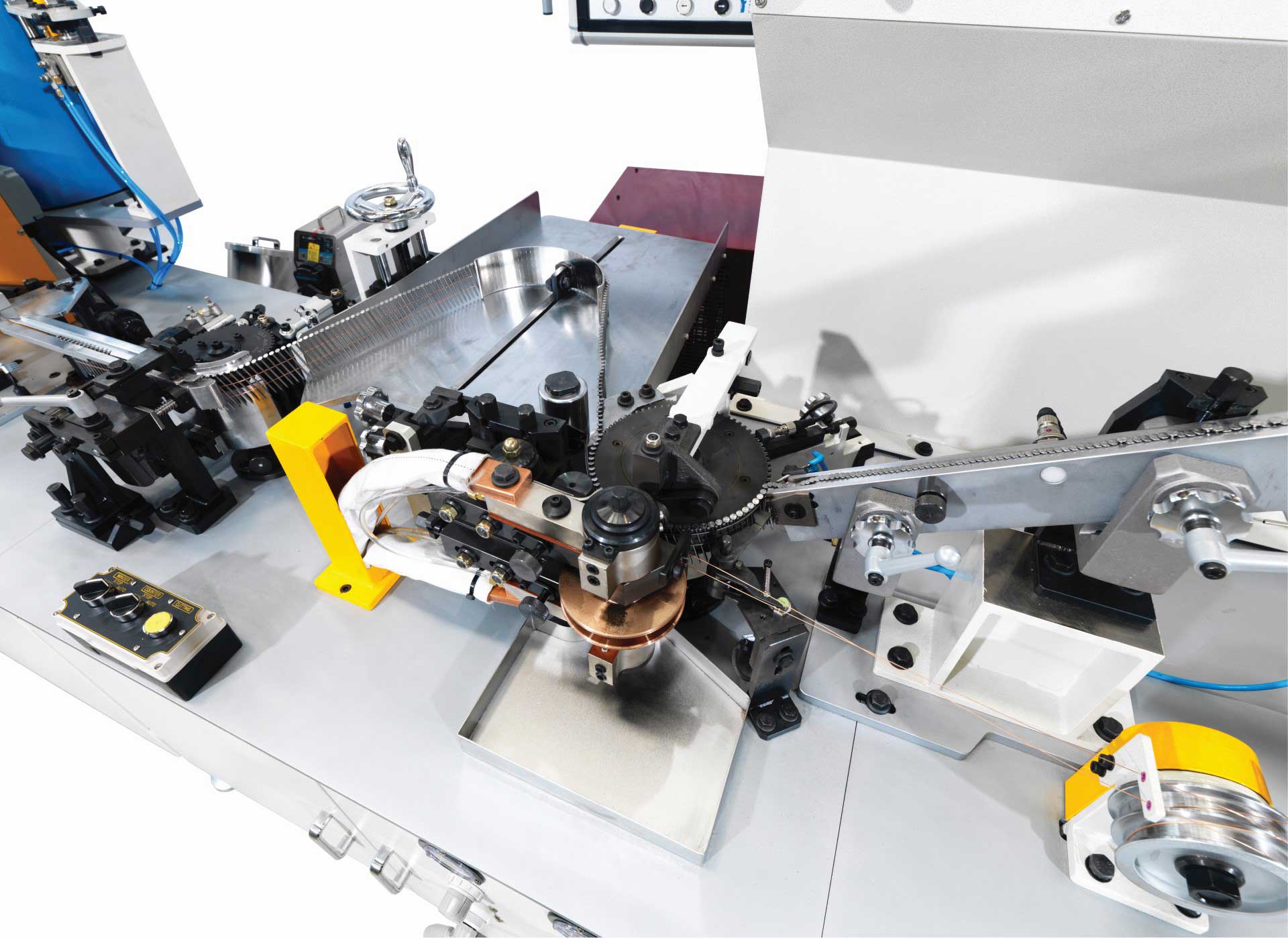

  • High-frequency inverter welder.

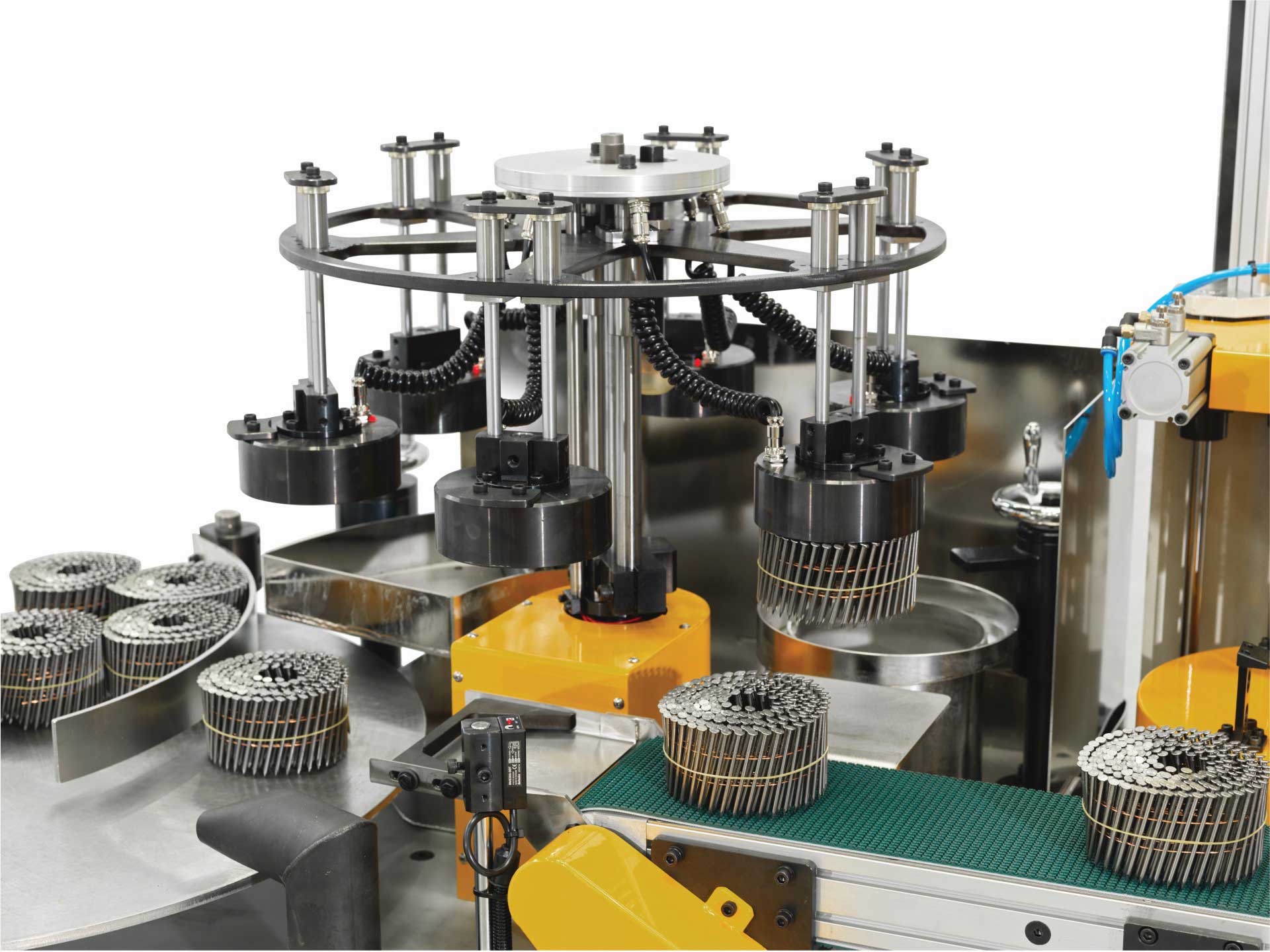

  • Cutter, coater, coiler: plane and dome-type coiling.
  • Coating: Spray roller coating with recycling pump and stainless storage tank type.

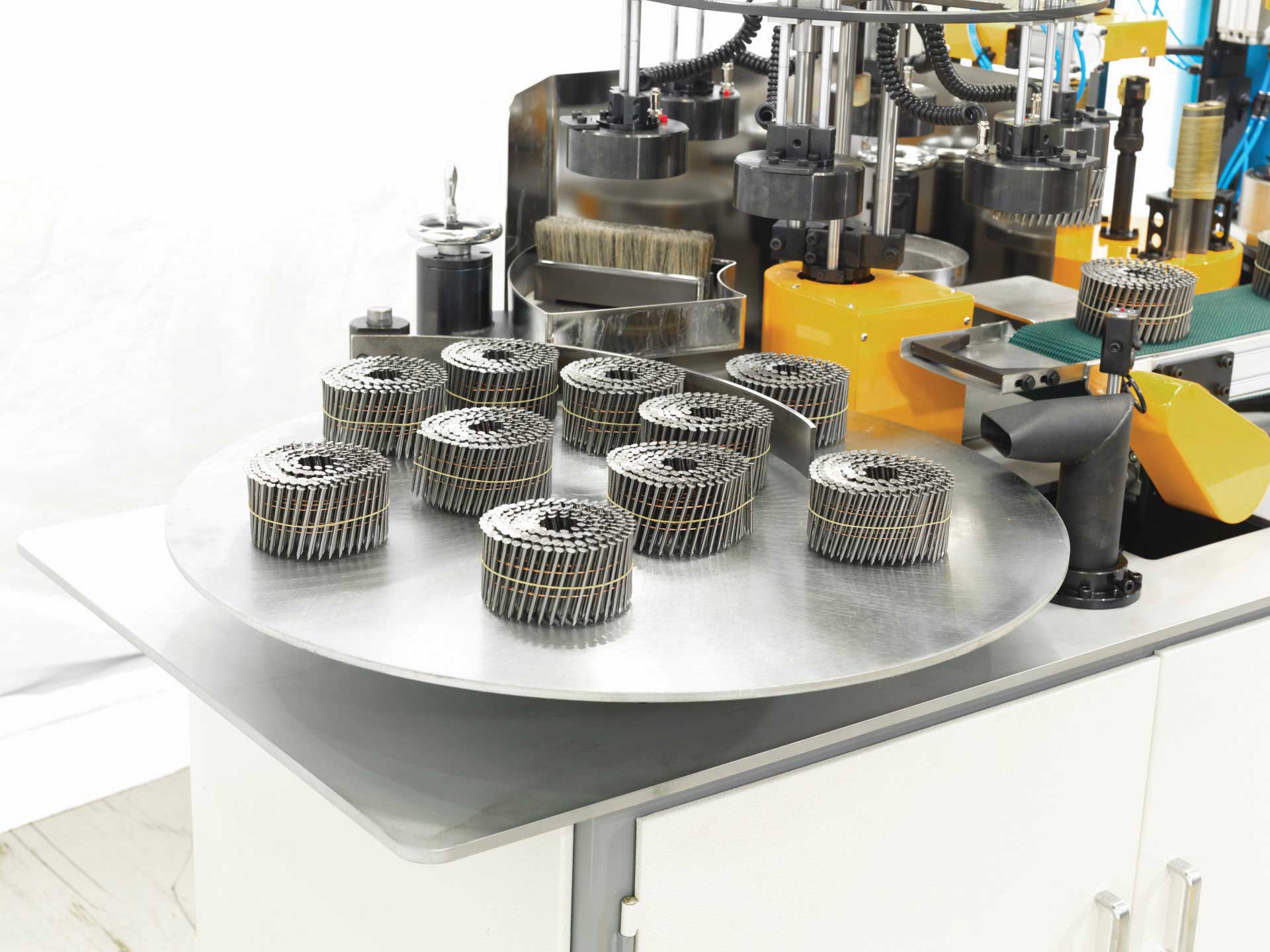

  • Accumulating table with warm air dryer.
  • Carrier armed touch screen computer controls.
