CM-90

Wire weld coil nail collator L type

Previous image CM-90 Next image

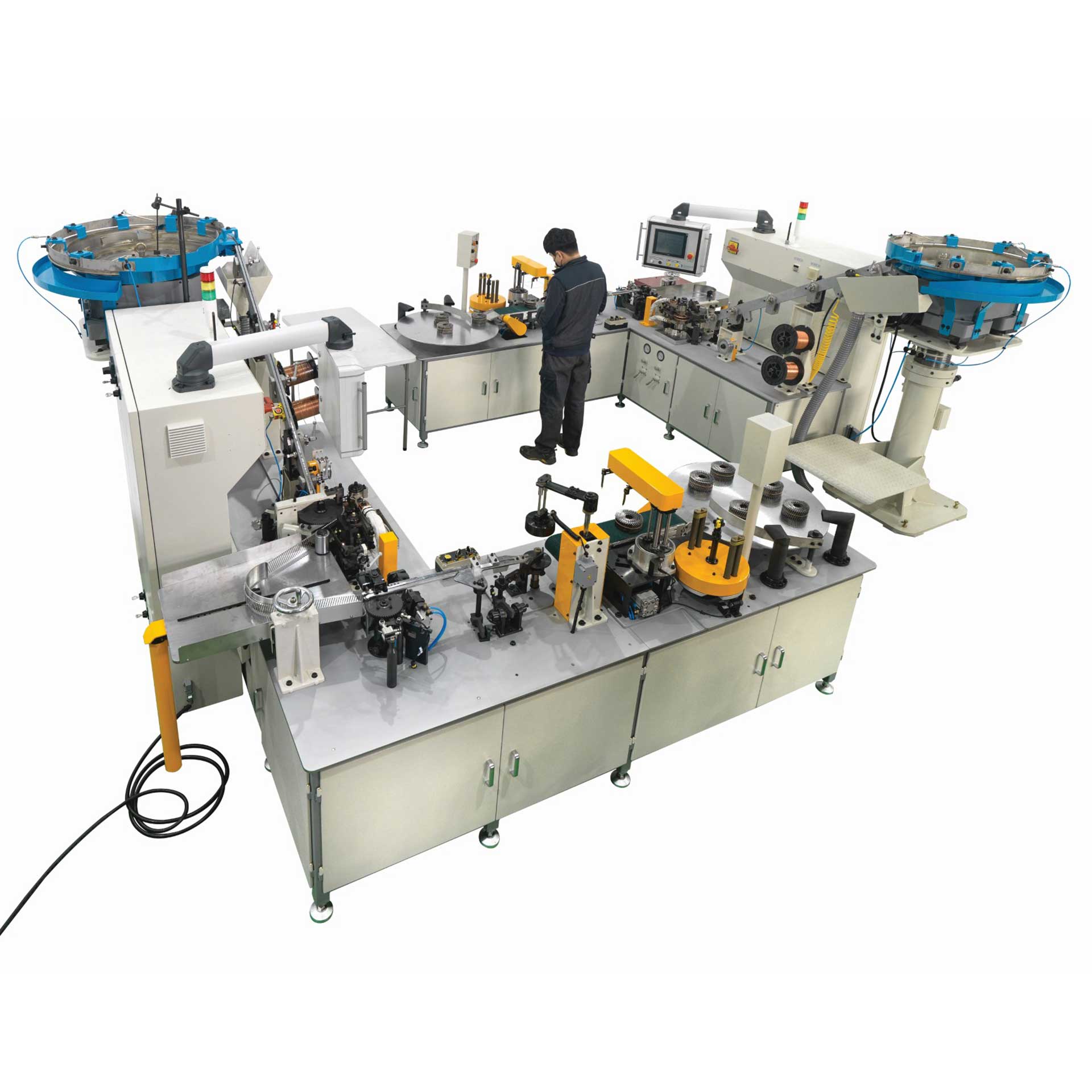

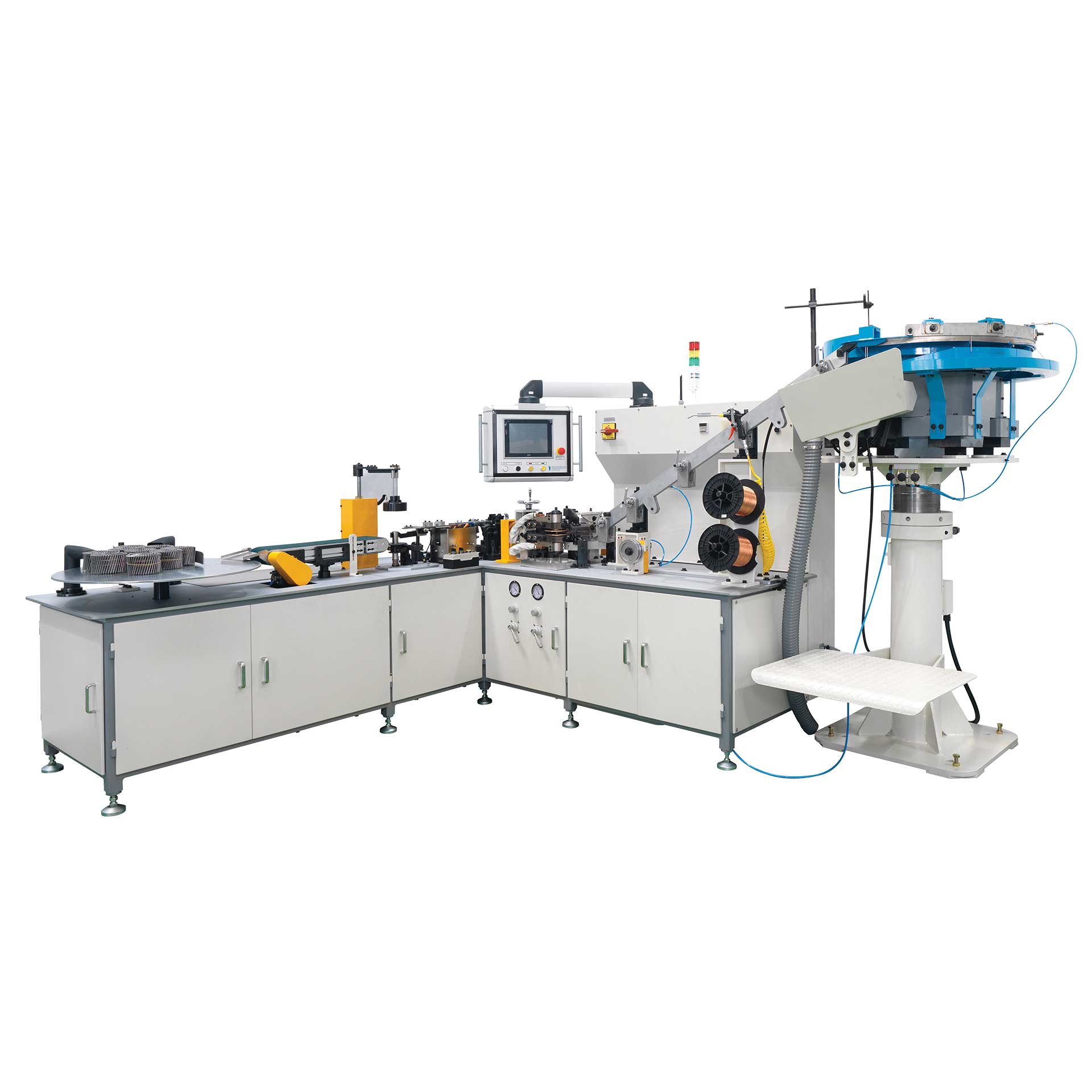

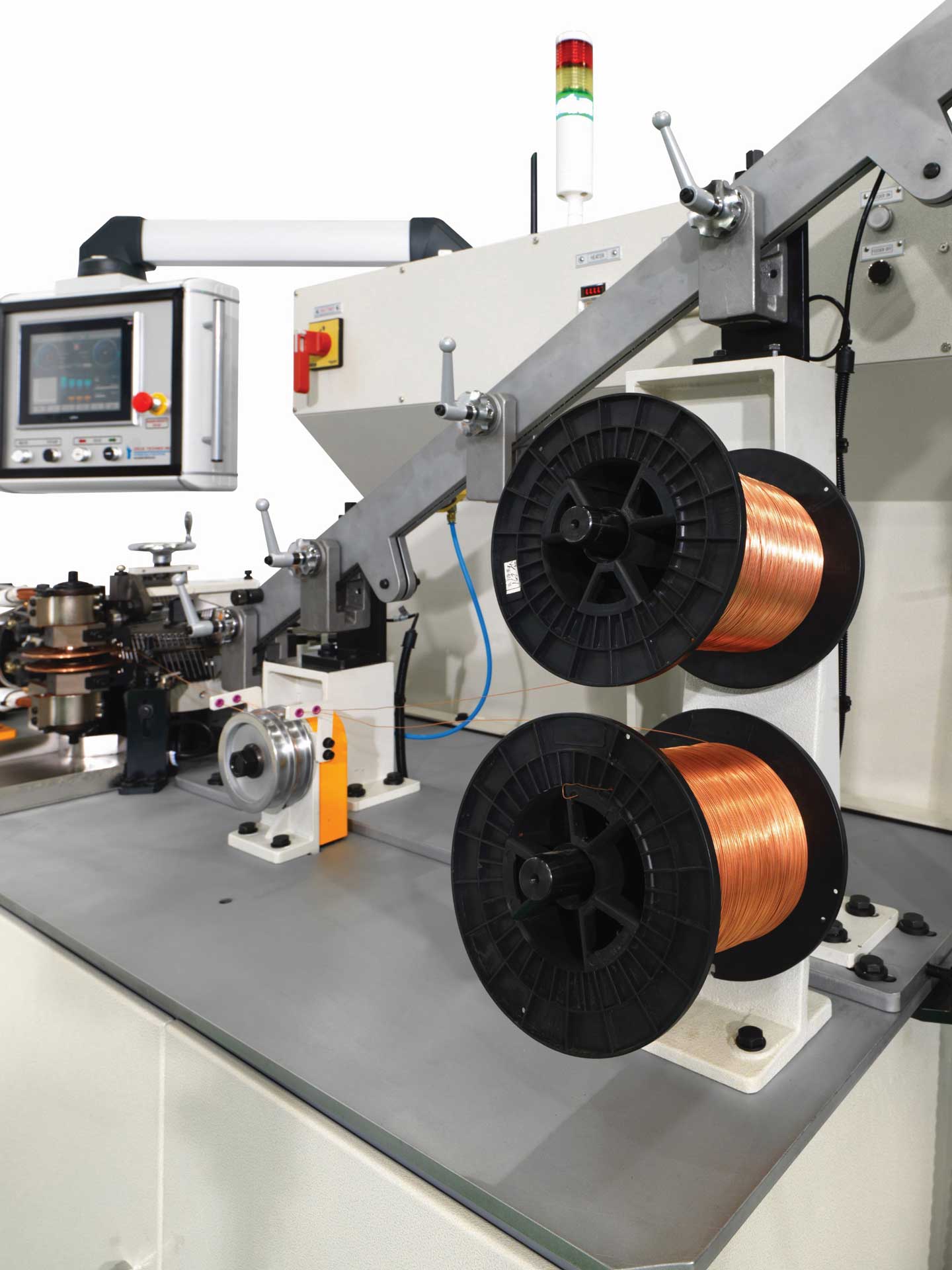

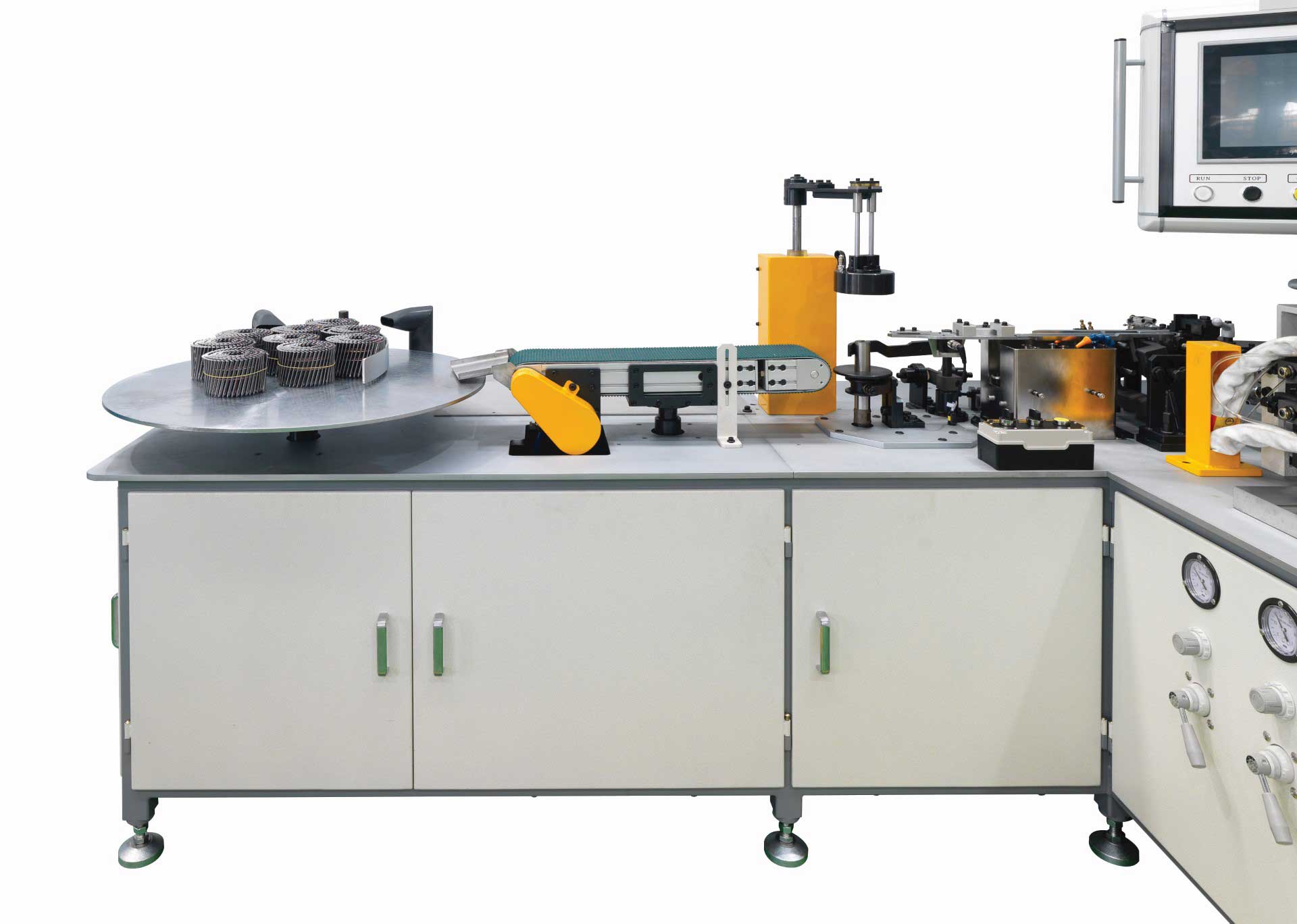

The CM-90 Wire Weld Collator from ZEUS TECHNO INC

Wire Weld Collator CM-90: Unleash the power of precision with the CM-90 Wire Weld Collator. This cutting-edge machine operates at speeds of up to 3,000 nails per minute, making it the ultimate solution for high-speed and accurate nail production. The CM-90 combines advanced wire weld technology with versatile coiling options, ensuring reliable and efficient nail manufacturing. Its robust capabilities and technical finesse make it an indispensable asset for meeting the demands of modern nail production. Elevate your production efficiency with the CM-90 and experience precision like never before.

Watch the video of the CM-90


Watch video

Specifications:

Model:
CM-90
Nail Diameter Range:
2.1 - 3.77 mm (0.083 - 0.148 inch)
Nail Length Range:
19 - 100 mm (3/4 - 4 inch)
Speed:
Up to 3,000 nails/min.
Electric Power:
28 kW max, 3P, 210-230 V, 50/60 Hz
Nail Angle Range:
15 - 16 degree
Nails Per Coil:
200 - 400 pcs
Air Consumption:
300 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Space Required:
2 900 x 3 200 x 1 800 mm / 9' 6.2" x 10' 6" x 5' 10.9"
Weight:
3,500 kg (7,700 lbs)
Features:
  • Neo PWM vibrating systems.

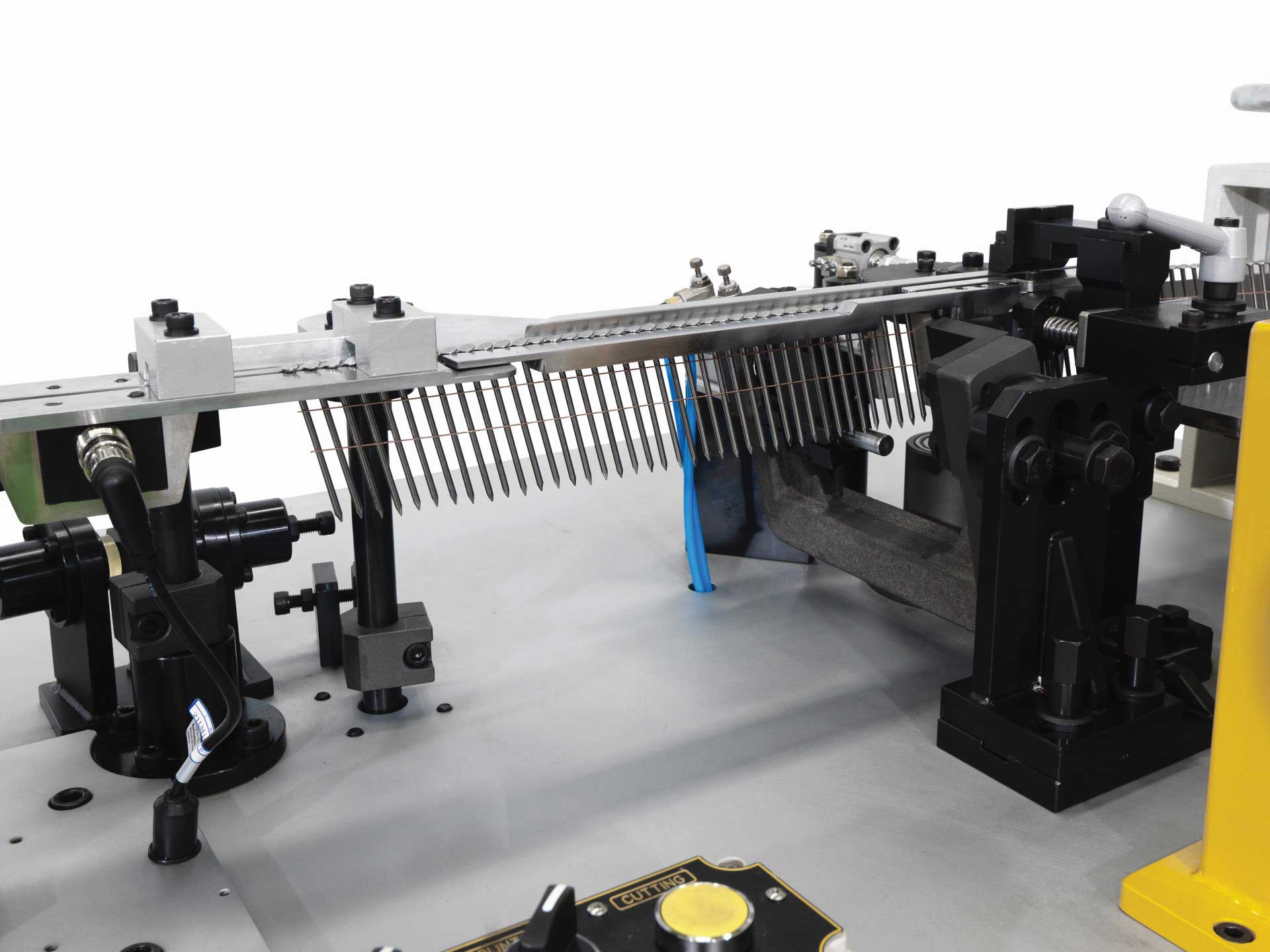

  • Straight steep down rail: 1,700mm length, 30 degrees aligned.

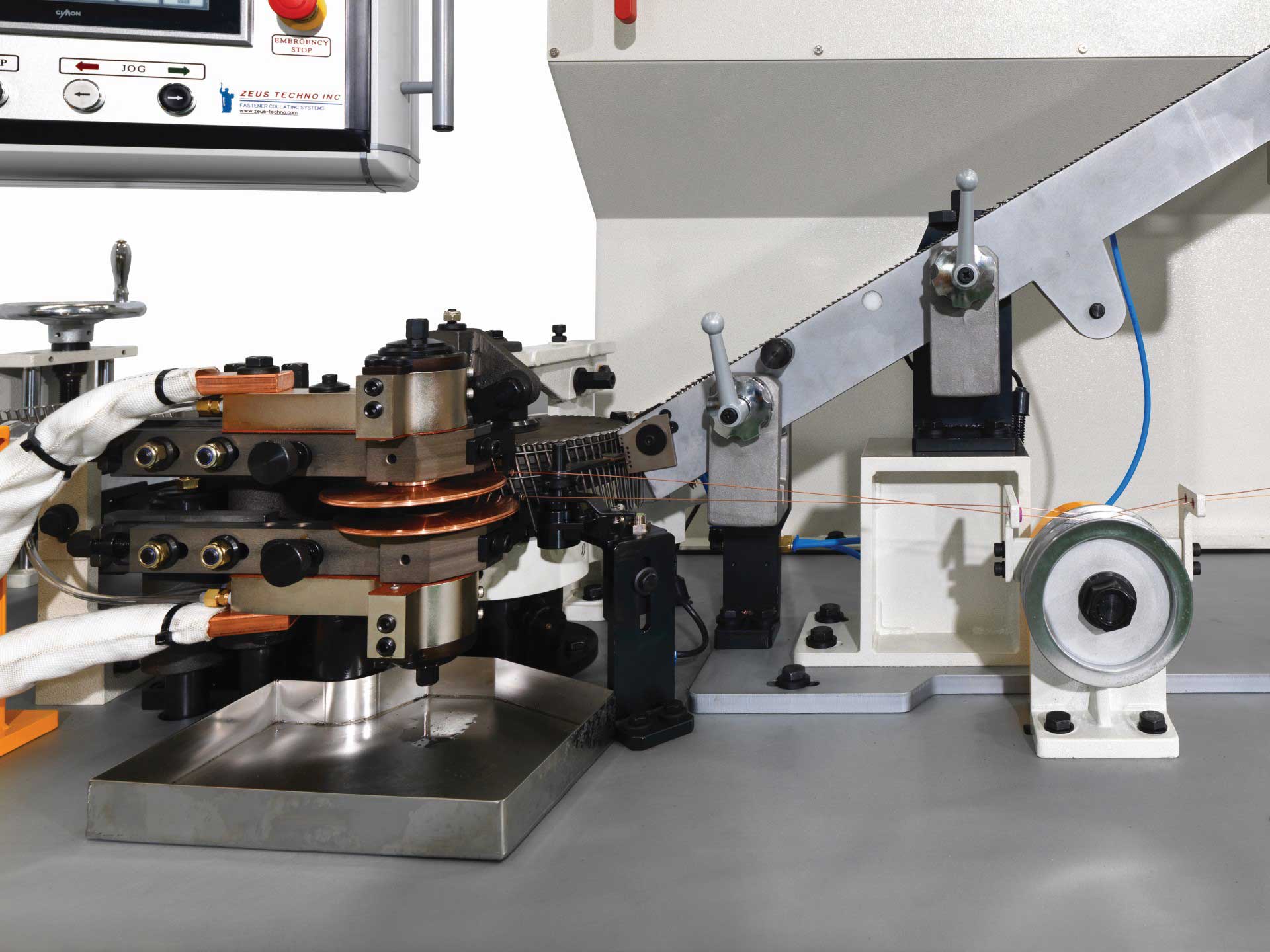

  • High-frequency inverter welder.

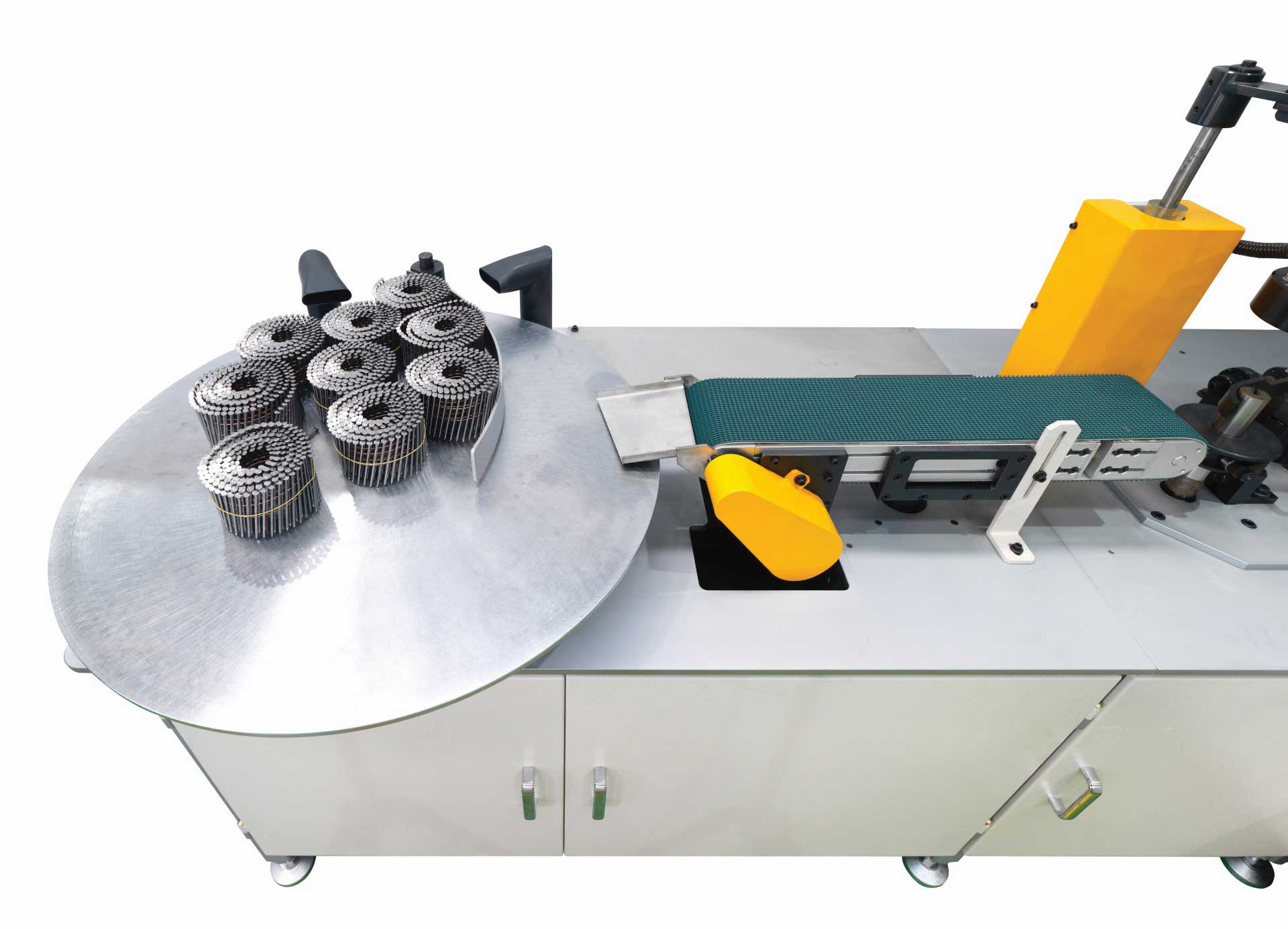

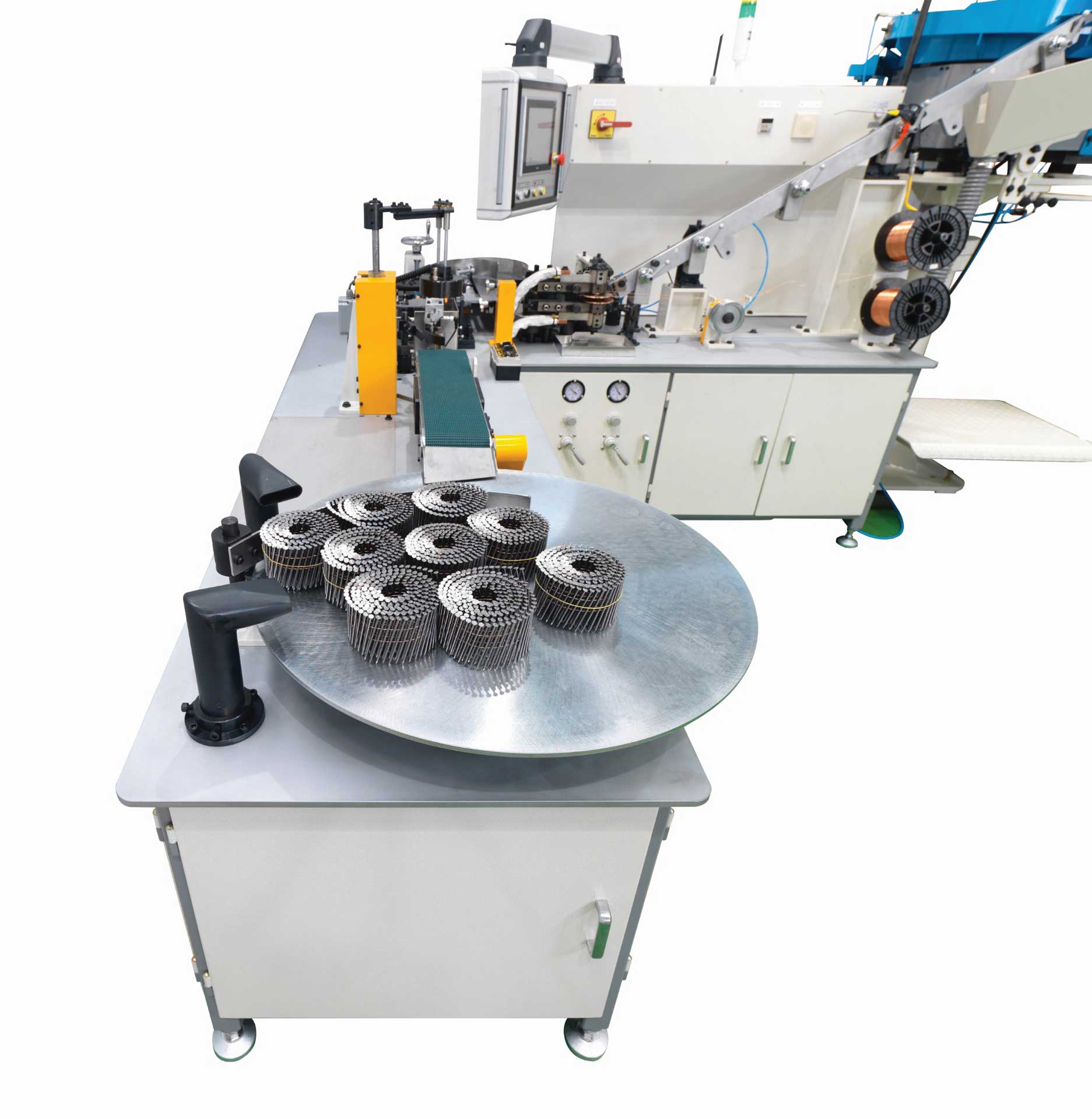

  • Cutter, coater, coiler: plane and dome-type coiling.
  • Coating: Spray roller coating with recycling pump and stainless storage tank type.
  • Accumulating table with warm air dryer.

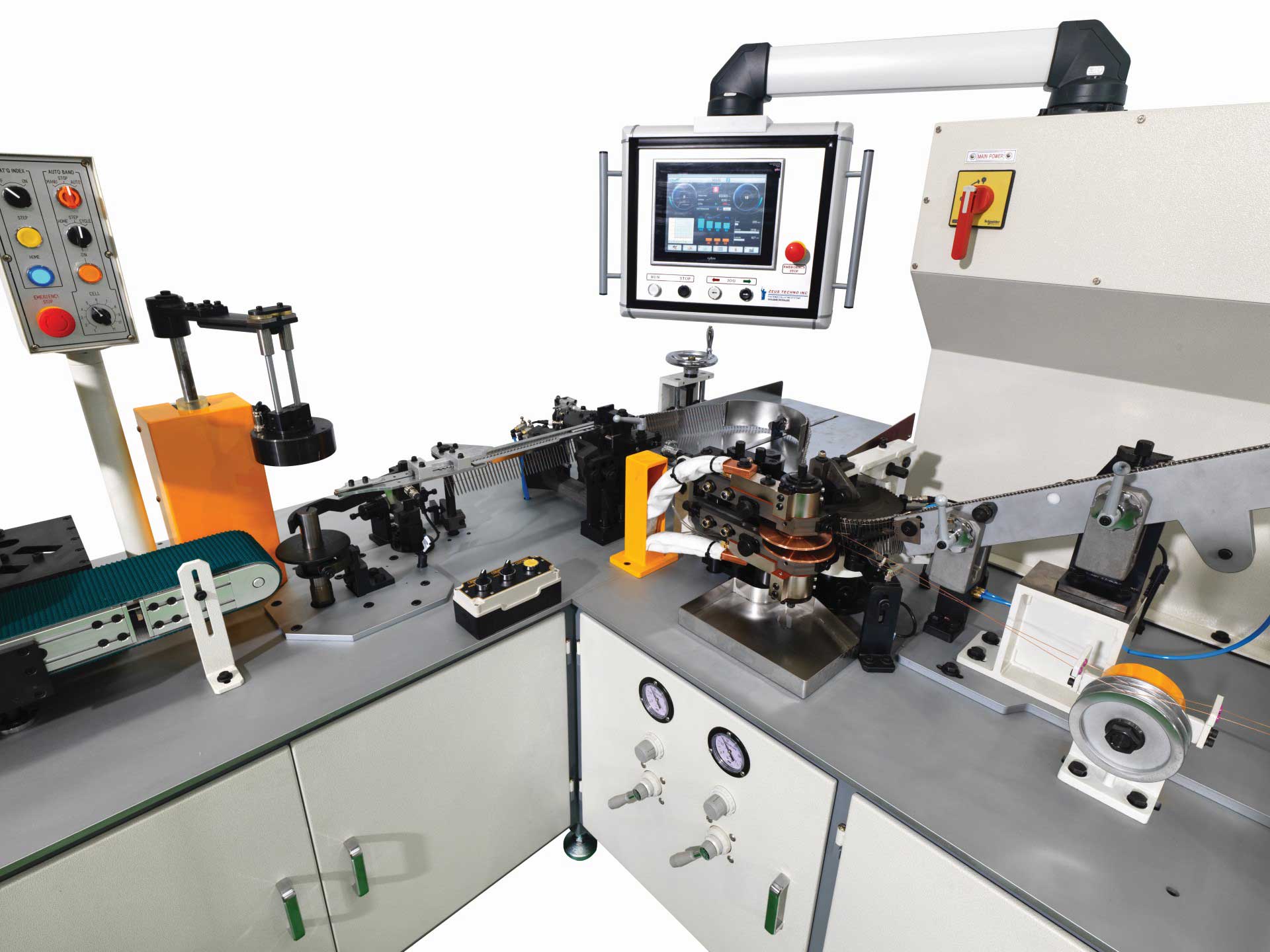

  • Carrier armed touch screen computer controls.
