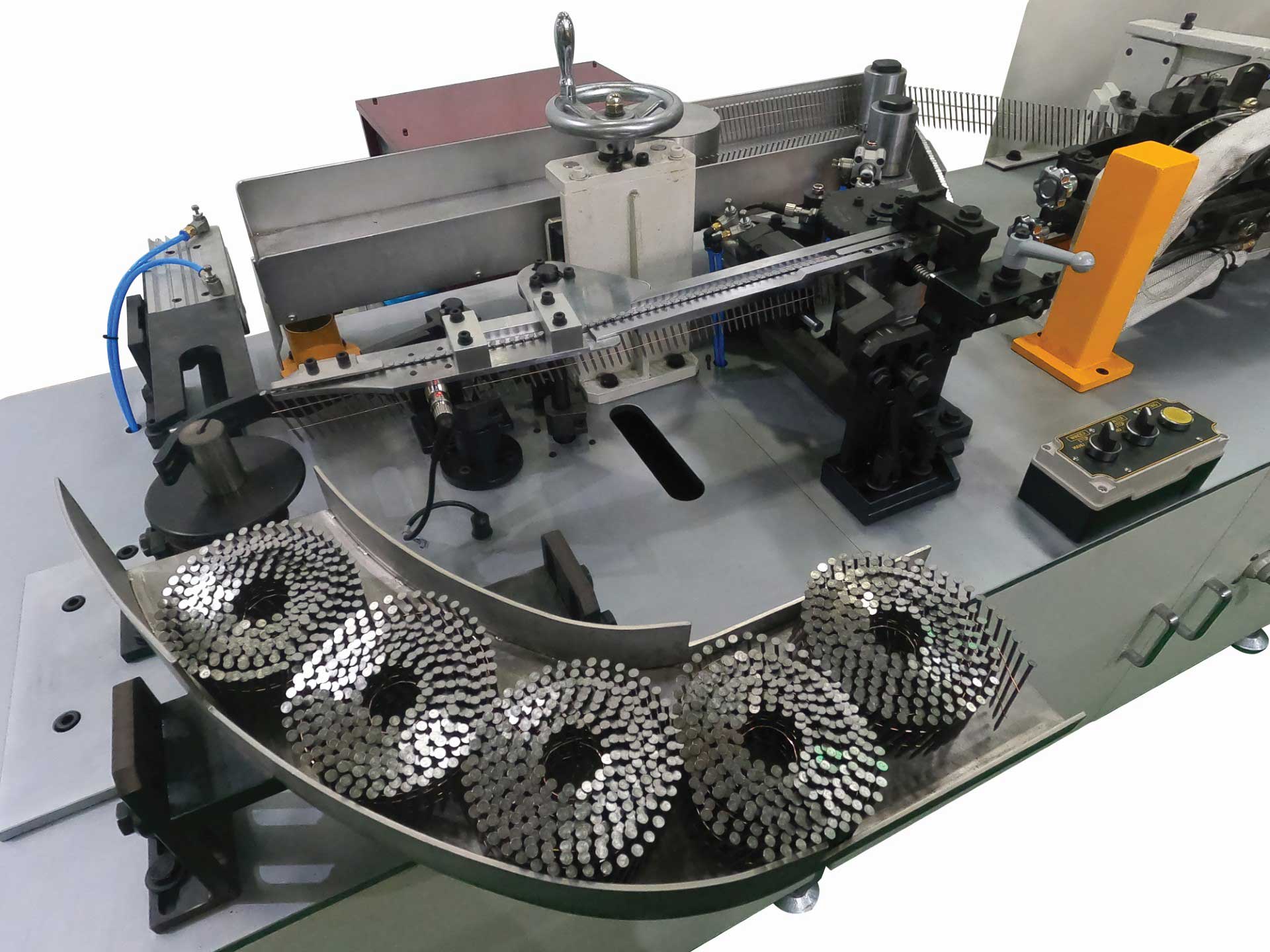

Detail of the CL-20 machine

Elevate Your Nail Production with CL-20, Precision Wire Weld Collation Excellence.

Previous image CL-20 Next image

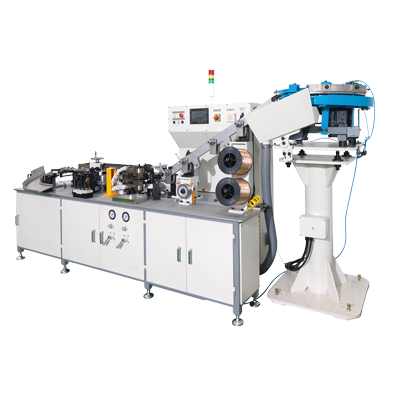

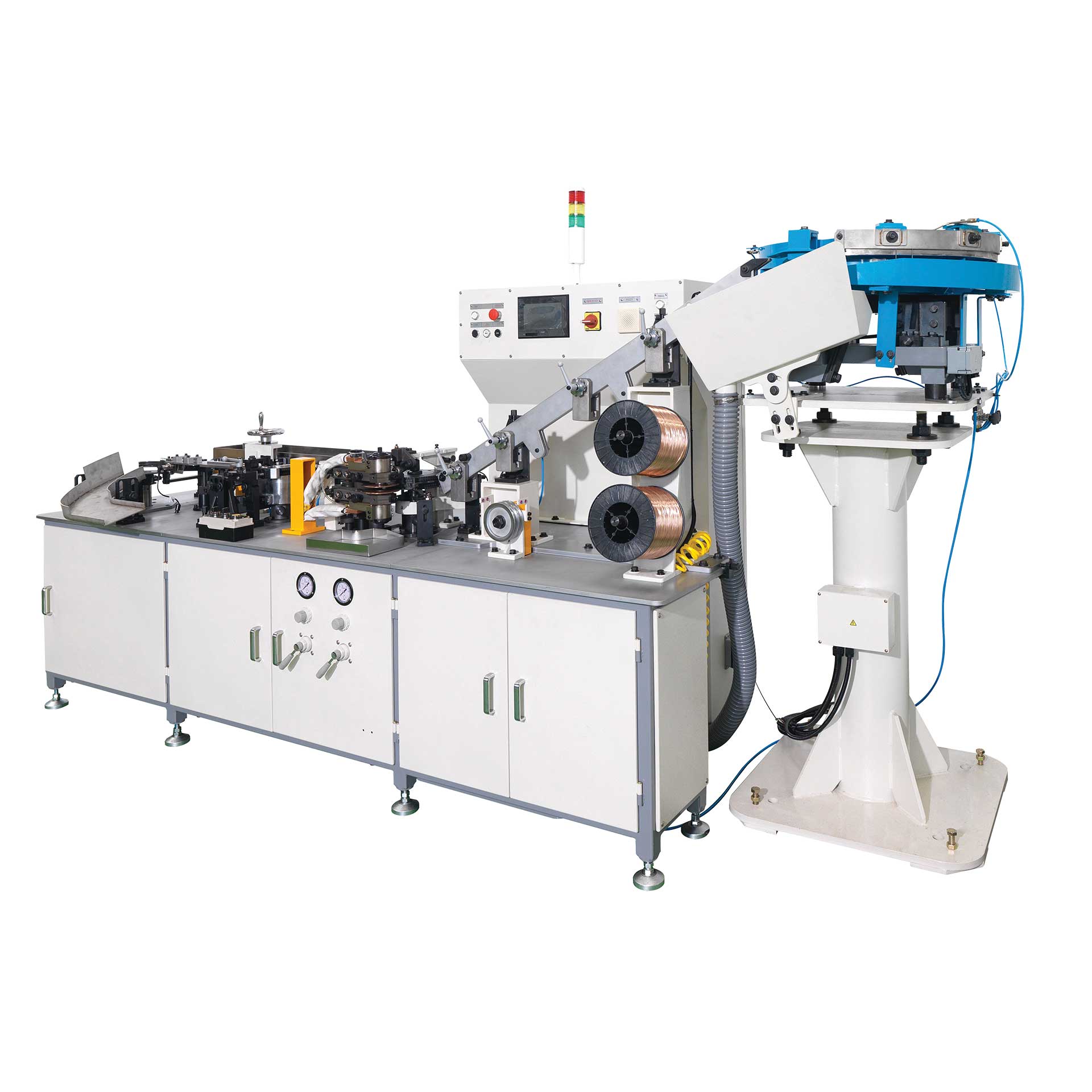

The CL-20 Wire Weld Collator from ZEUS TECHNO INC

Wire Weld Collator CL-20: Experience the pinnacle of wire weld collation technology with the CL-20. This machine sets the standard for precision and efficiency in nail production. With a remarkable operating speed of up to 2,000 nails per minute, the CL-20 ensures dependable and accurate nail manufacturing. Its advanced wire weld collation technology and versatile coiling capabilities make it the top choice for achieving superior nail production. Elevate your manufacturing process with the CL-20 and witness unmatched precision in action.

Watch the video of the CL-20


Watch video

Specifications:

Model:
CL-20
Nail Diameter Range:
1,6 - 3,05 mm / 0.0625" - 0.12"
Nail Length Range:
19 - 76 mm / 3/4" - 3"
Speed:
Up to 2 300 Nails/min
Electric Power:
30 kVA, 3P, 210 - 230 V, 50 - 60 Hz
Nail Angle Range:
0° - 16°
Nails Per Coil:
225 - 400 pcs
Weight Kg-Lbs:
2 500 kg / 5,500 lbs

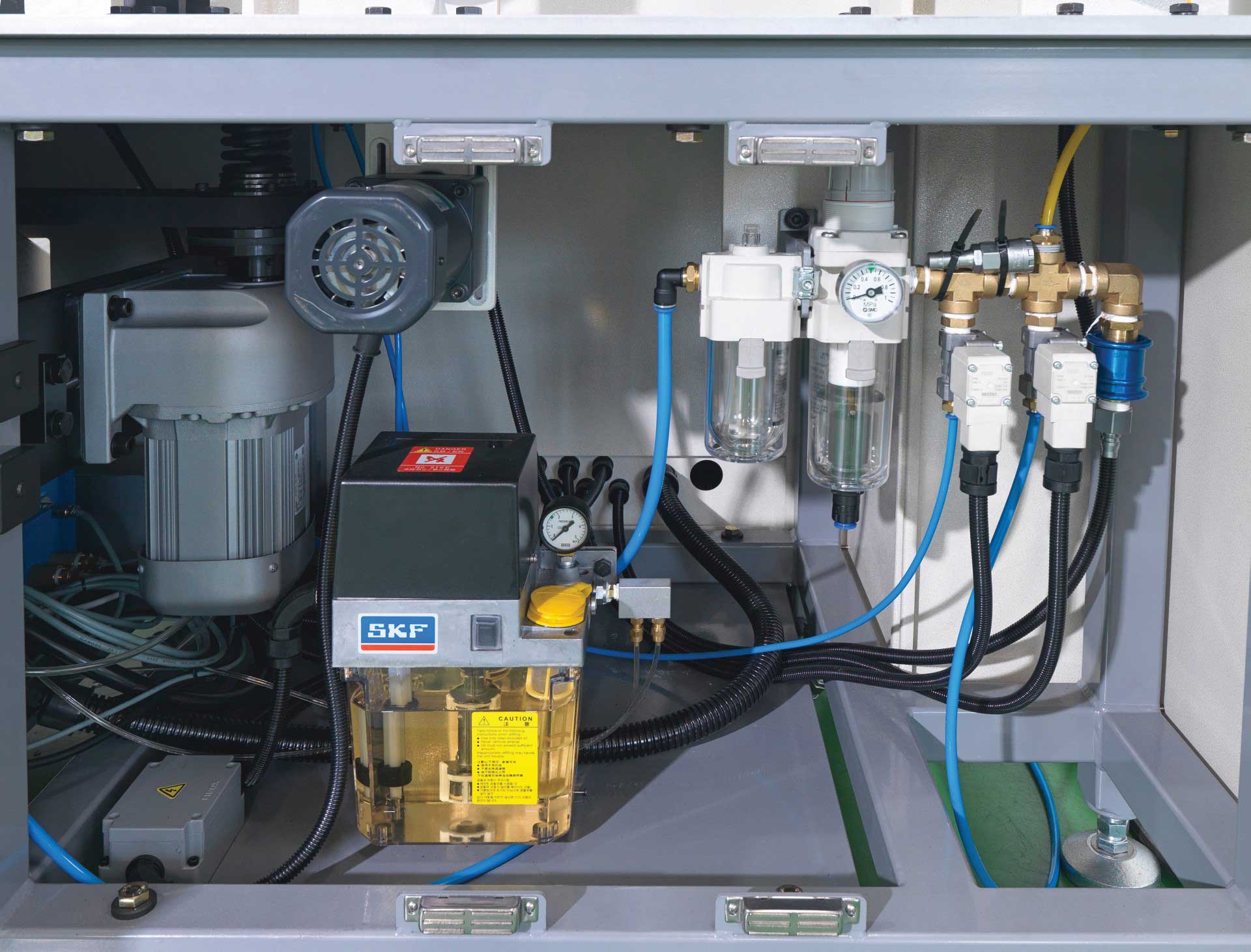

Air Consumption:
300 l/min. / 18 m³/hod. / 10.6 CFM
Air Supply:
6 bar / 87 psi / (One 1/2" hose)
Space Required:
3 400 x 1 300 x 1 700 mm / 11' 1.9" x 4' 3.2" x 5' 6.9"
Machine Noise:
80 dBA
Weight:
2 500 kg
Depth:
1 300 mm
Height:
1 700 mm
Width:
3 400 mm
Features:

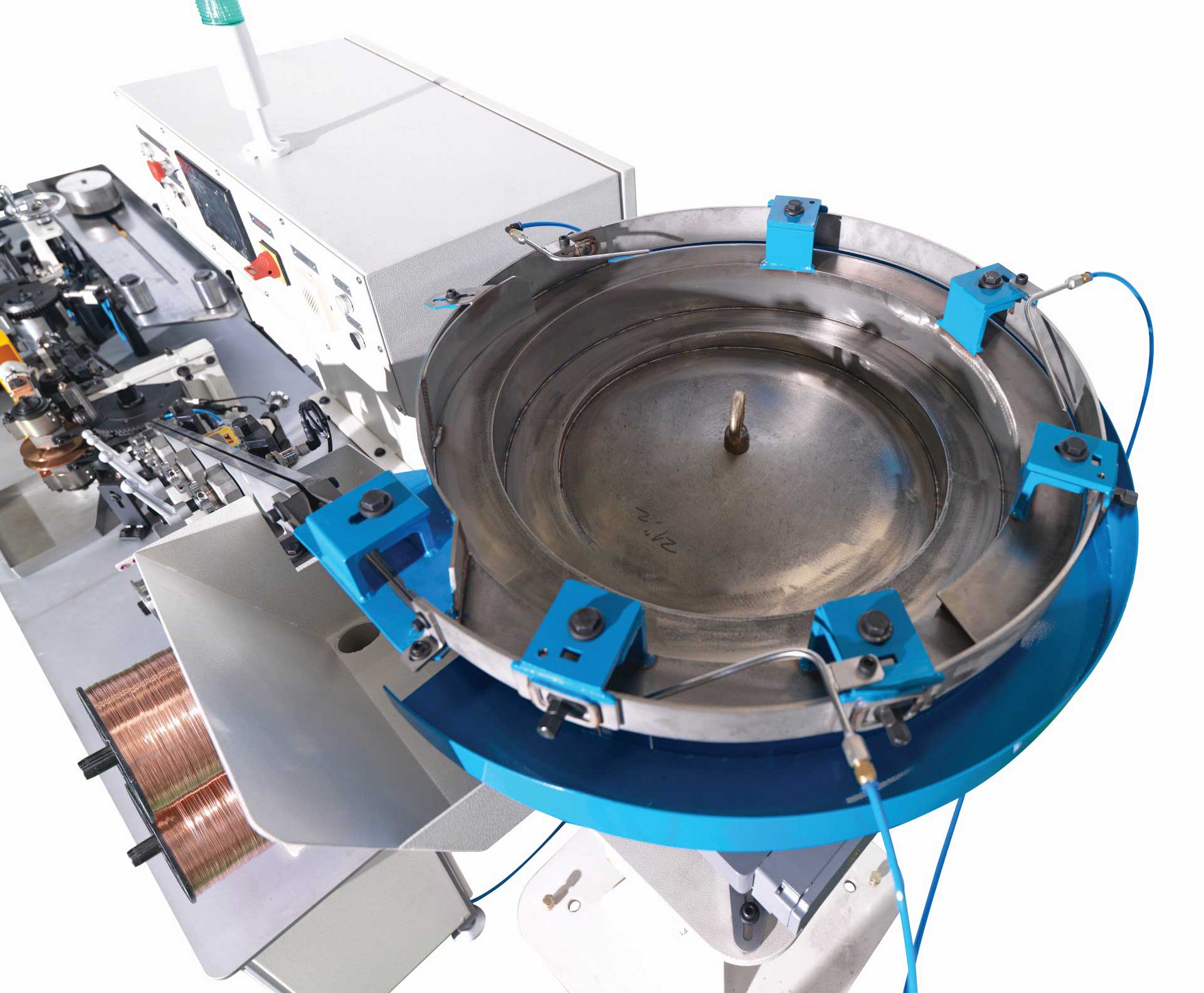

  • Neo PWM vibrating systems.

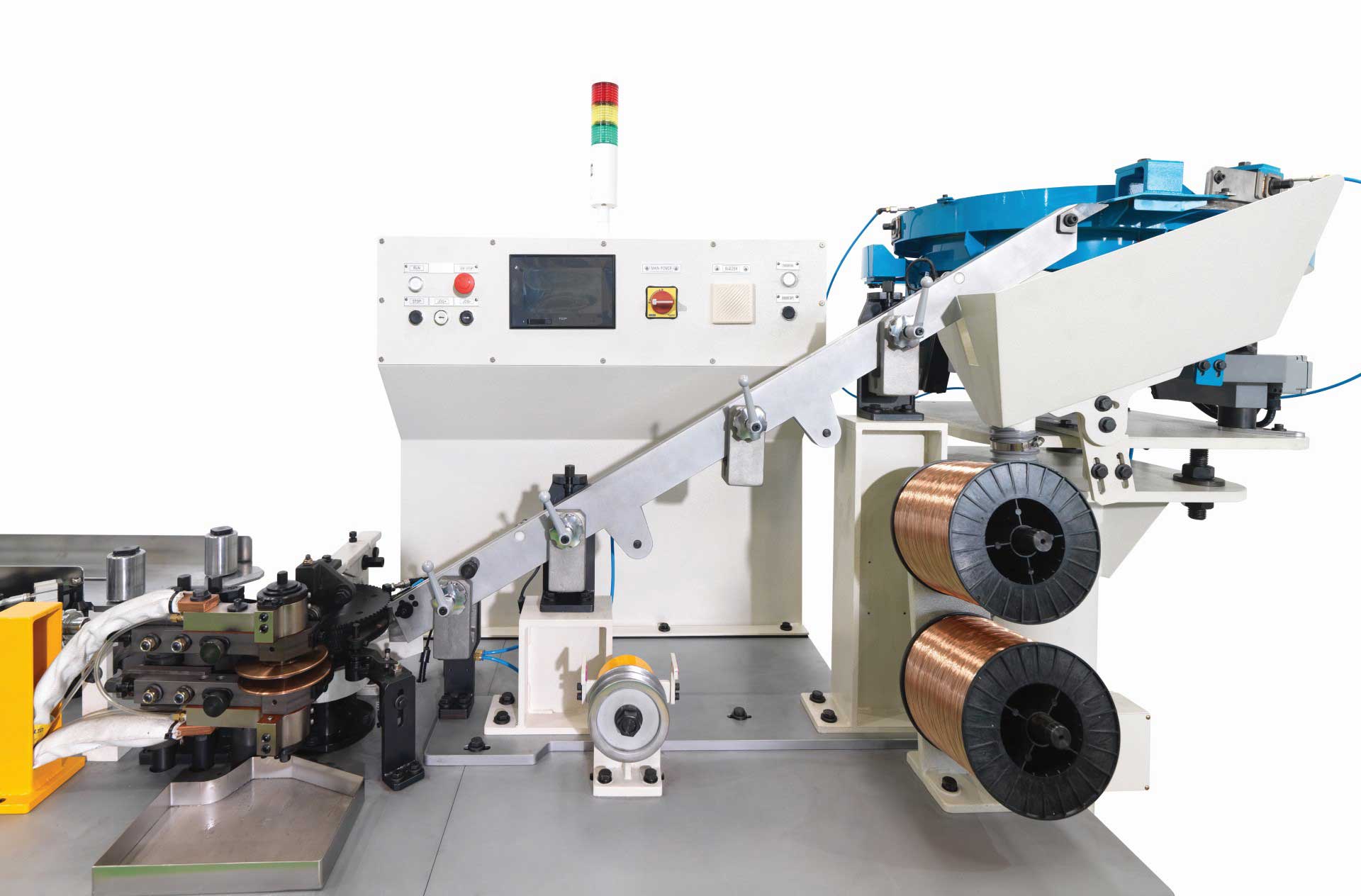

  • Straight steep down rail: 1,700mm length, 30 degrees aligned.

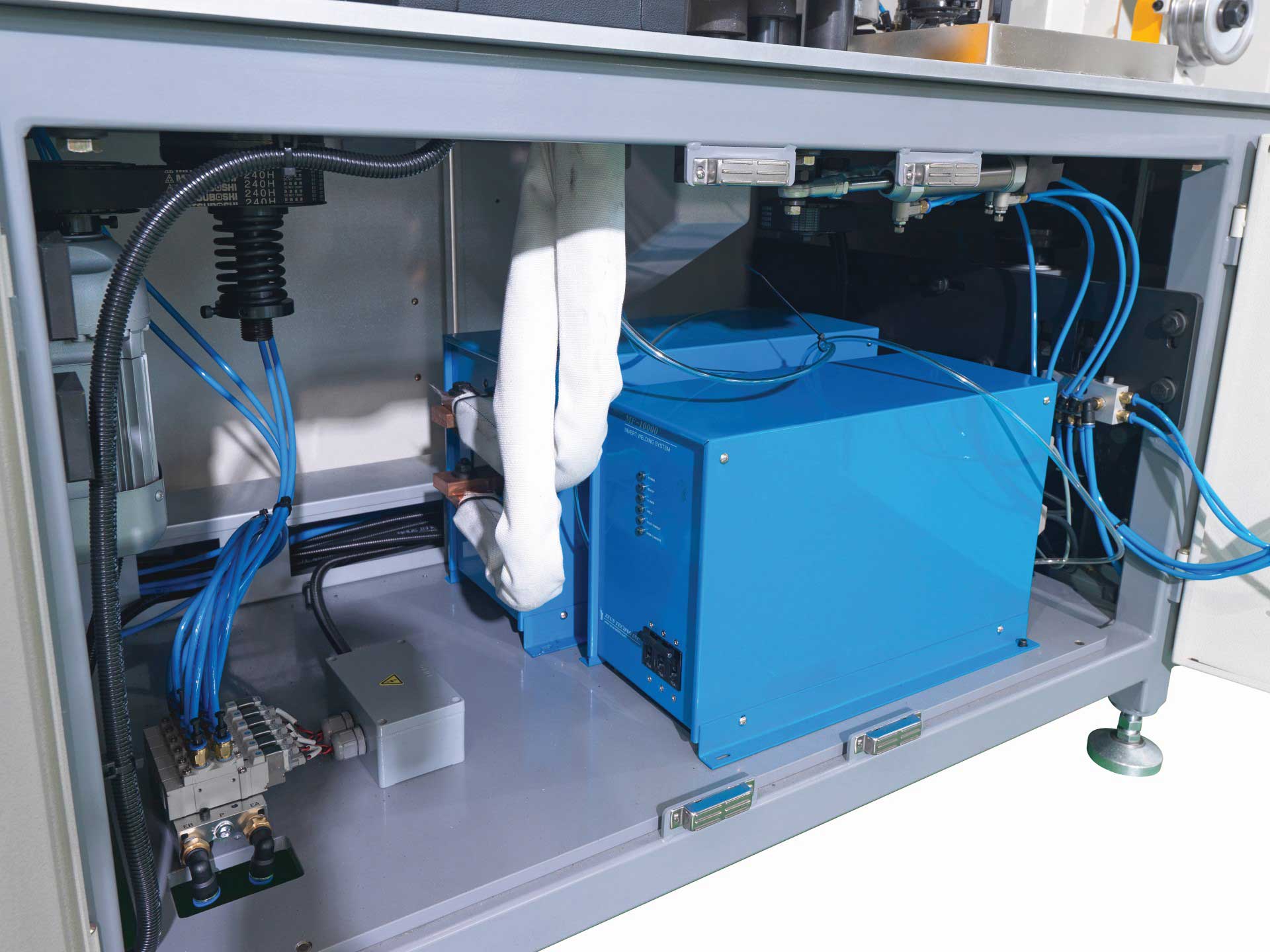

  • High-frequency inverter welder.

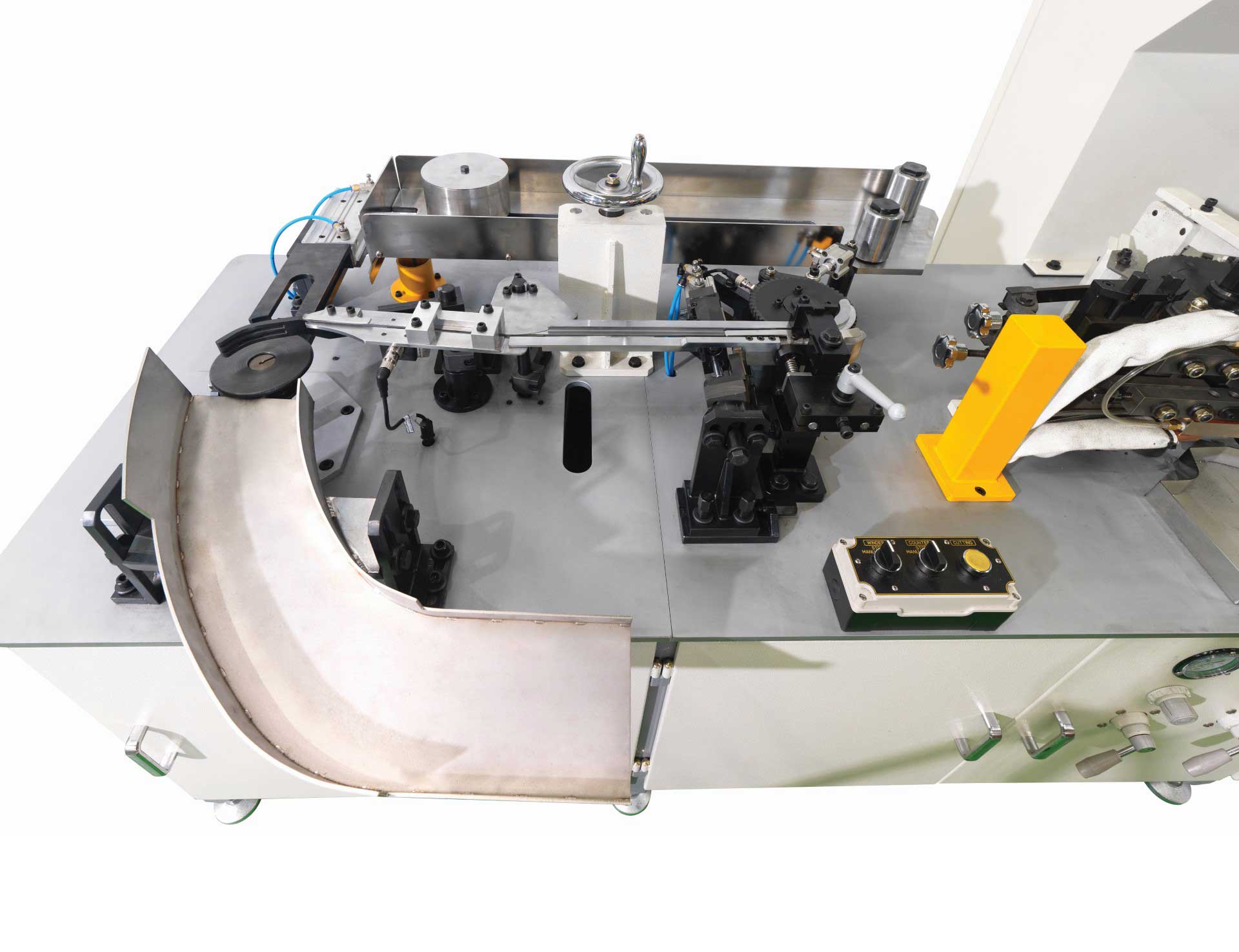

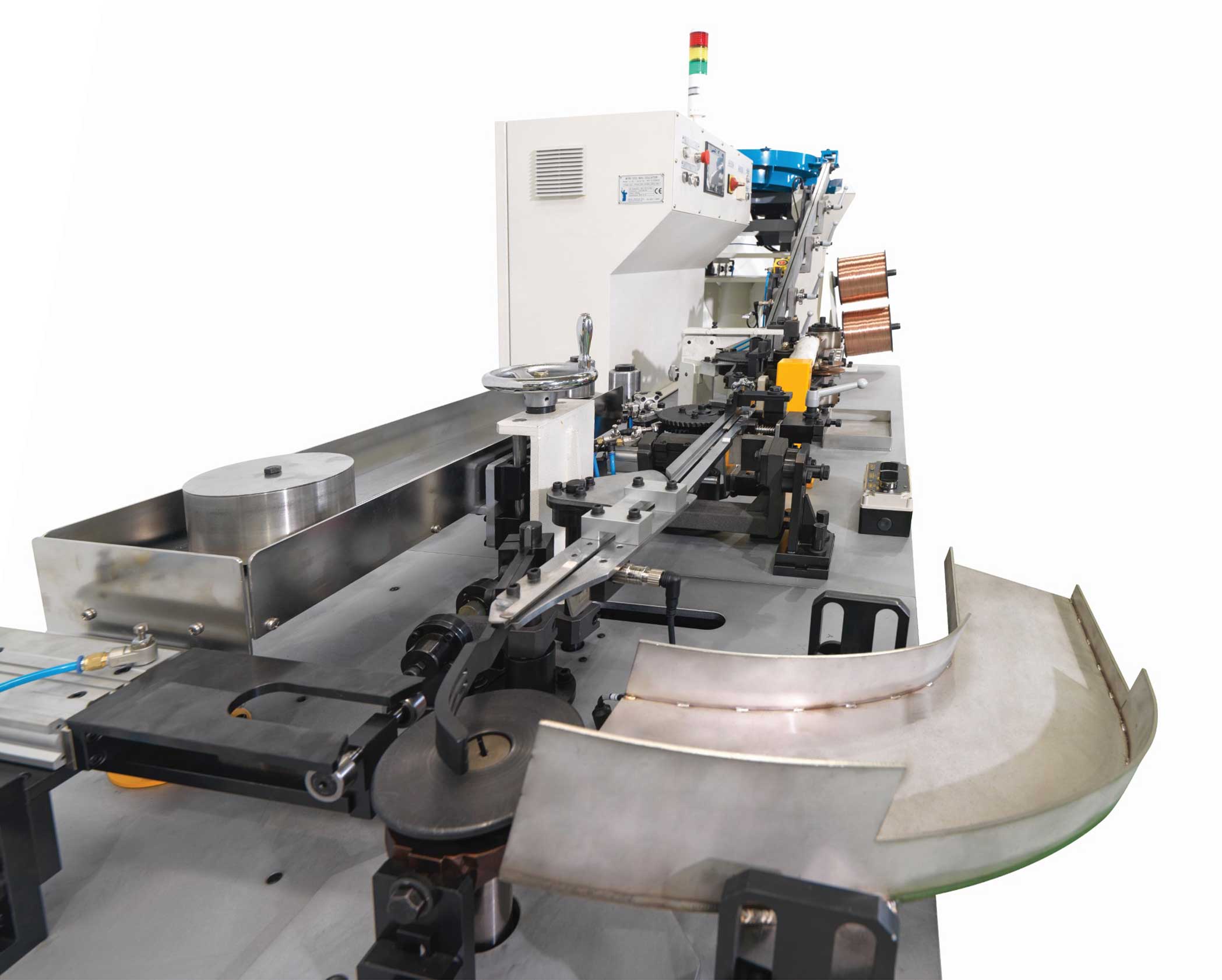

  • Cutter, coater, coiler: plane and dome-type coiling.
  • Coating: Spray roller coating with recycling pump and stainless storage tank type.
  • Accumulating table with warm air dryer.
  • Carrier armed touch screen computer controls.
