SC-83 Plastic Strip Screw Collator: Mastering Screw Collation.

Previous image SC-83 Next image

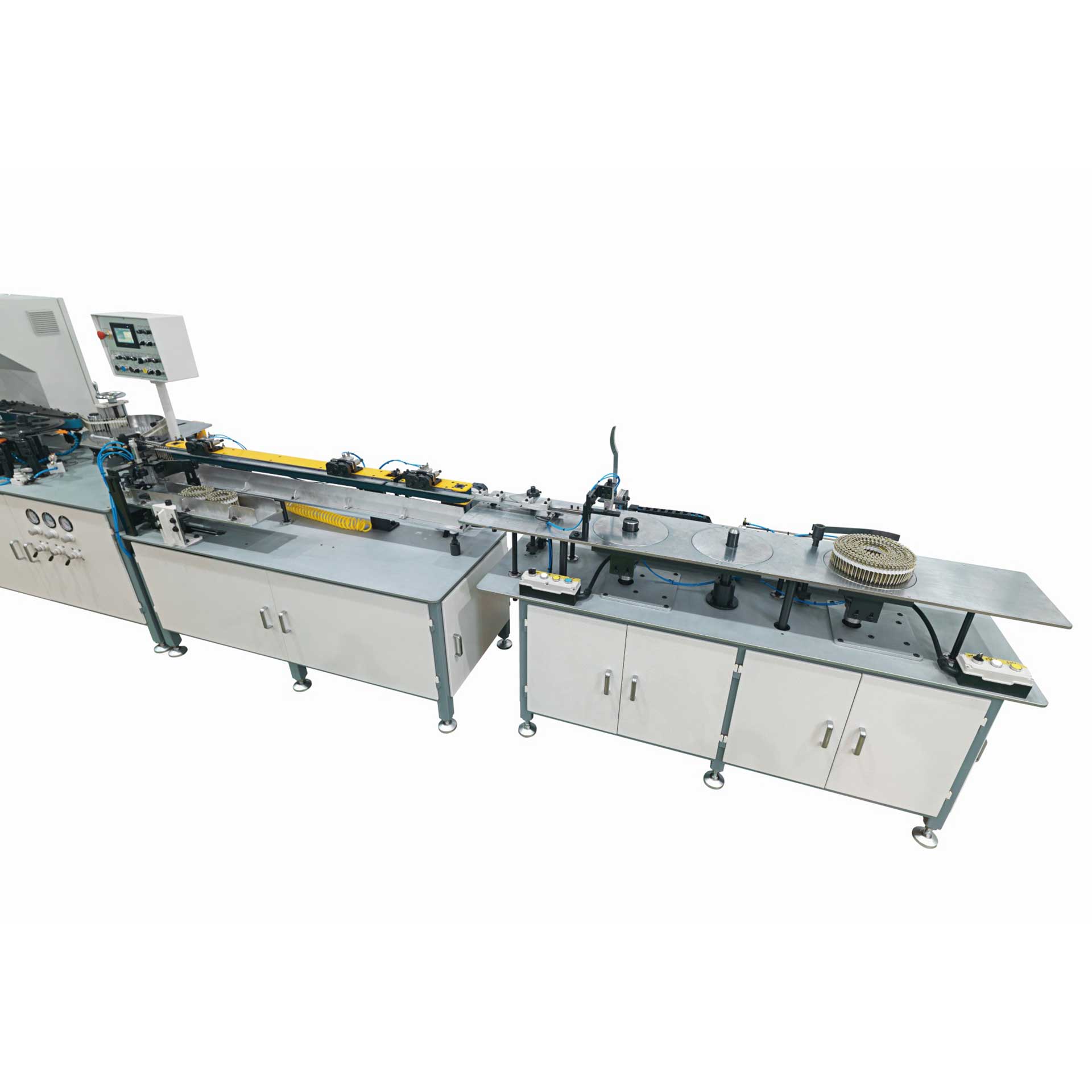

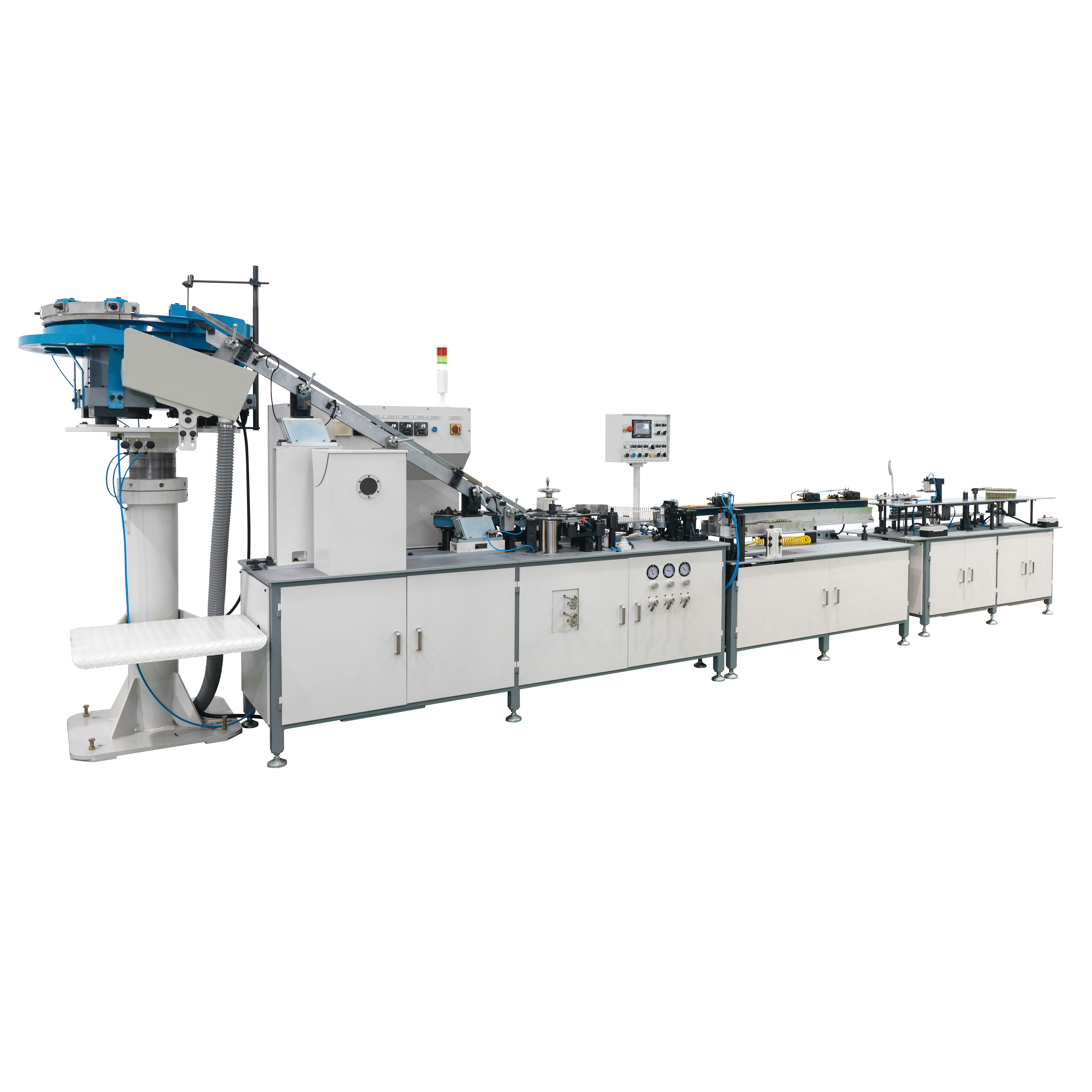

The SC-83 Plastic Strip Screw Collator from Zeus Techno

Plastic Strip Collator SC-83: Master the art of screw collation with the SC-83 Plastic Strip Screw Collator. With a speed of 1,500 screws per minute, this machine excels in delivering precision and efficiency for screw production. Its advanced plastic strip collation technology and versatile coiling capabilities guarantee consistent and efficient screw manufacturing. When you need the utmost accuracy and reliability in screw collation, the SC-83 is the solution you can count on.

No videos available for SC-83

Specifications:

Model:
SC-83
Screw Diameter Range:
3 - 5 mm / 0.12" – 0.2"
Screw Length Range:
35 - 83 mm / 1.38" – 3.27"
Speed:
1,500 Screws/min
Electric Power:
30 kVA, 3P, 210 - 230 V, 50 - 60 Hz
Screw Angle Range:
90°
Screws Per Strip:
20 - 50 pcs
Air Consumption:
800 l/min. / 48 m³/hod. / 28.3 CFM
Air Supply:
6 bar / 87 psi / (One 1/2" hose)
Space Required:
7 000 x 2 000 x 2 000 mm / 22' 11.6" x 6' 6.7" x 6' 6.7"
Machine Noise:
80 dBA
Weight:
4,500 (9,900 lbs)
Depth:
2,000 mm
Height:
2,000 mm
Width:
7,000 mm
Features:
  • Straight steep down rail 2 150 mm length, 25° aligned.

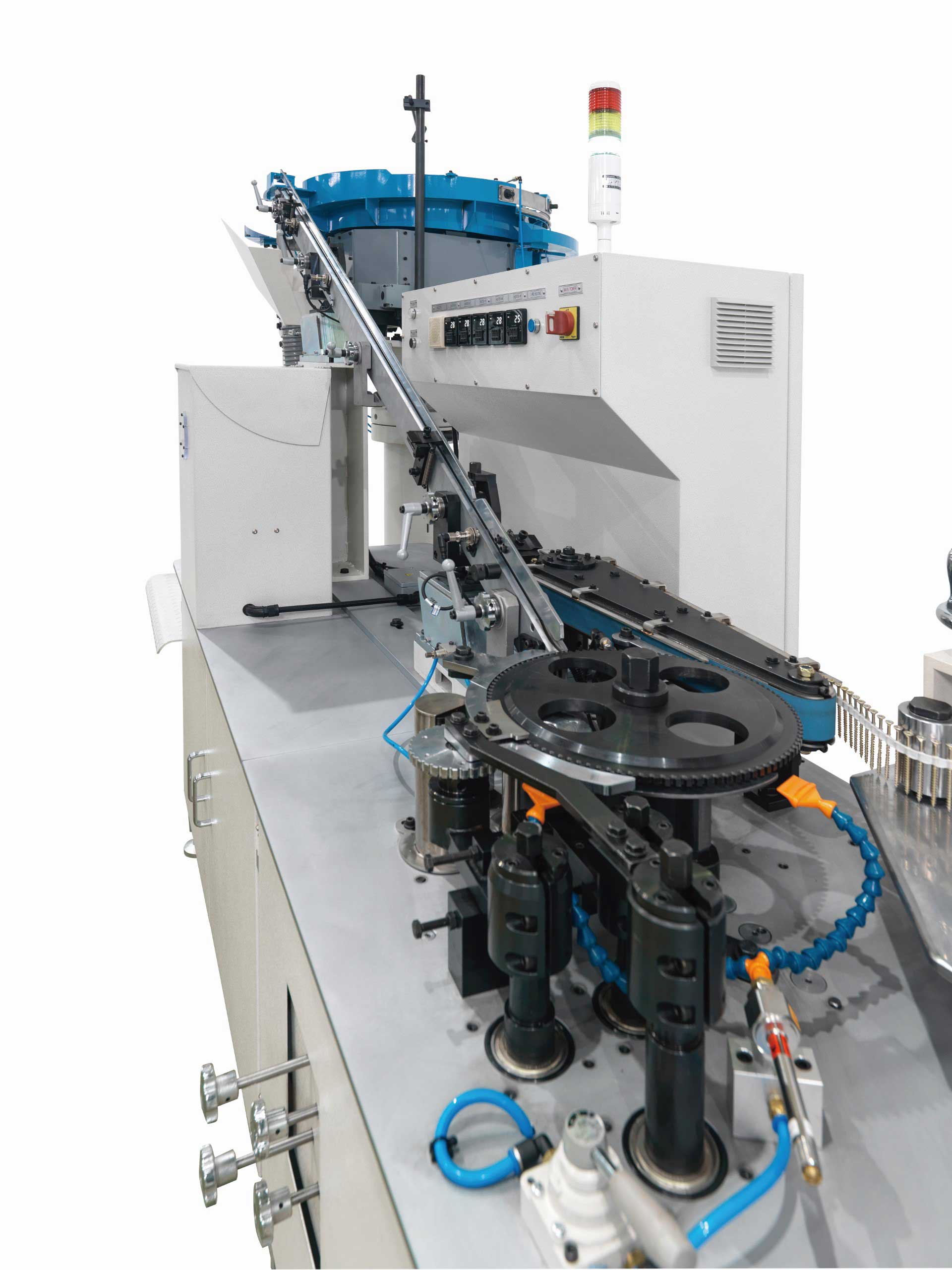

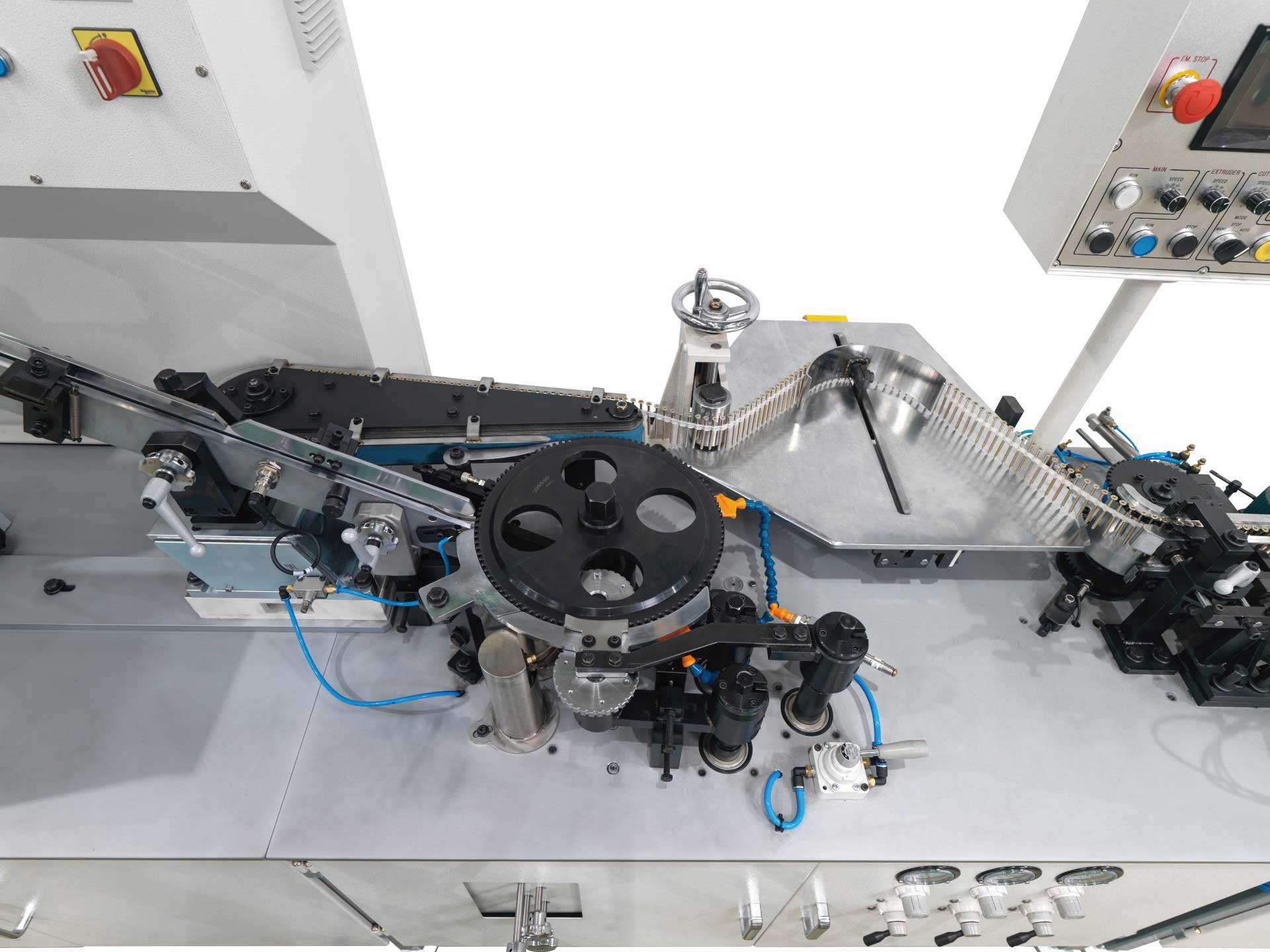

  • Strip formation: Injection nozzle & water-cooled crimping gears.
  • Cutter: Count gear with sensor makes screw numbers per strip exact.

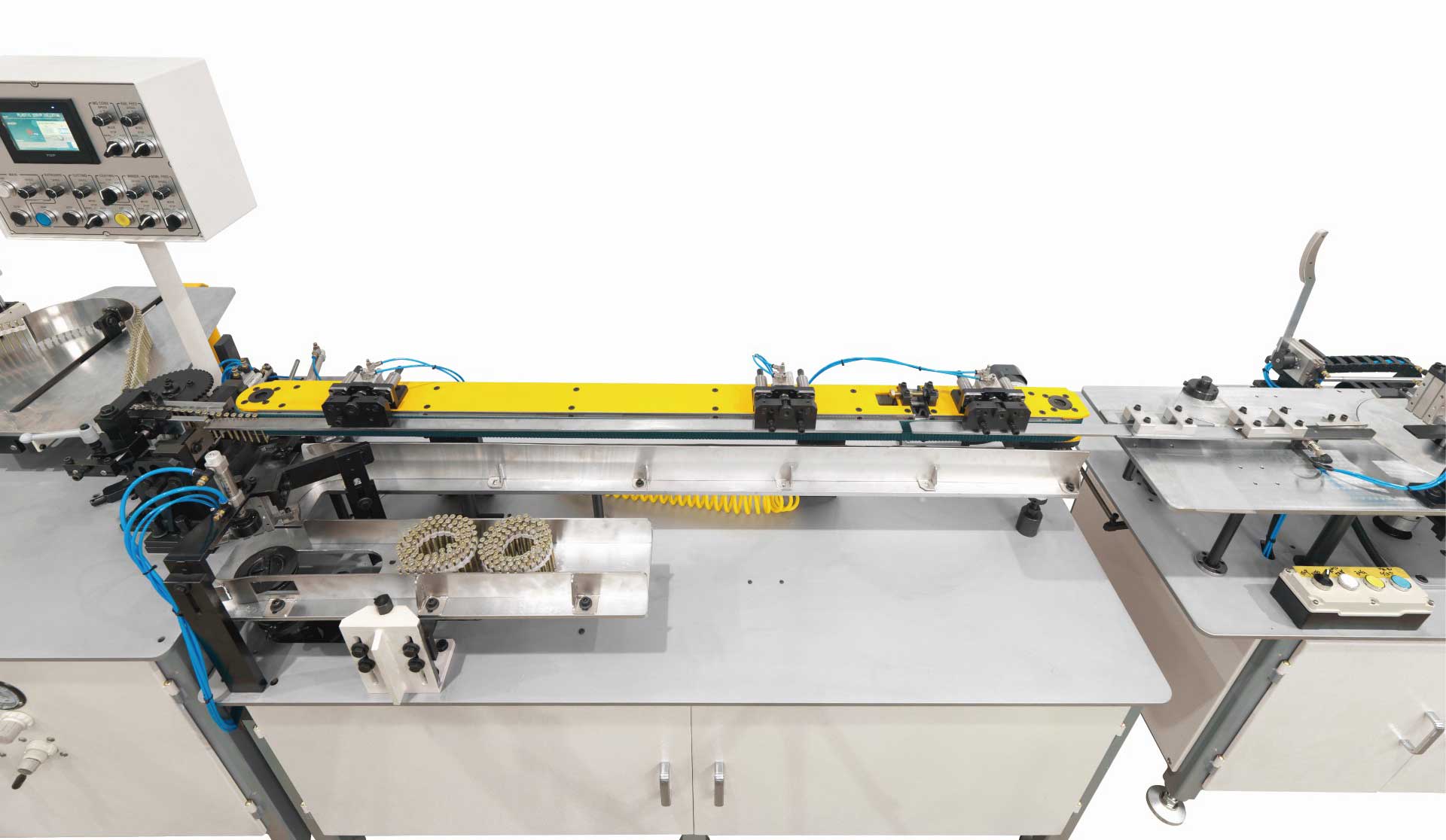

  • Magnet transit conveyor.

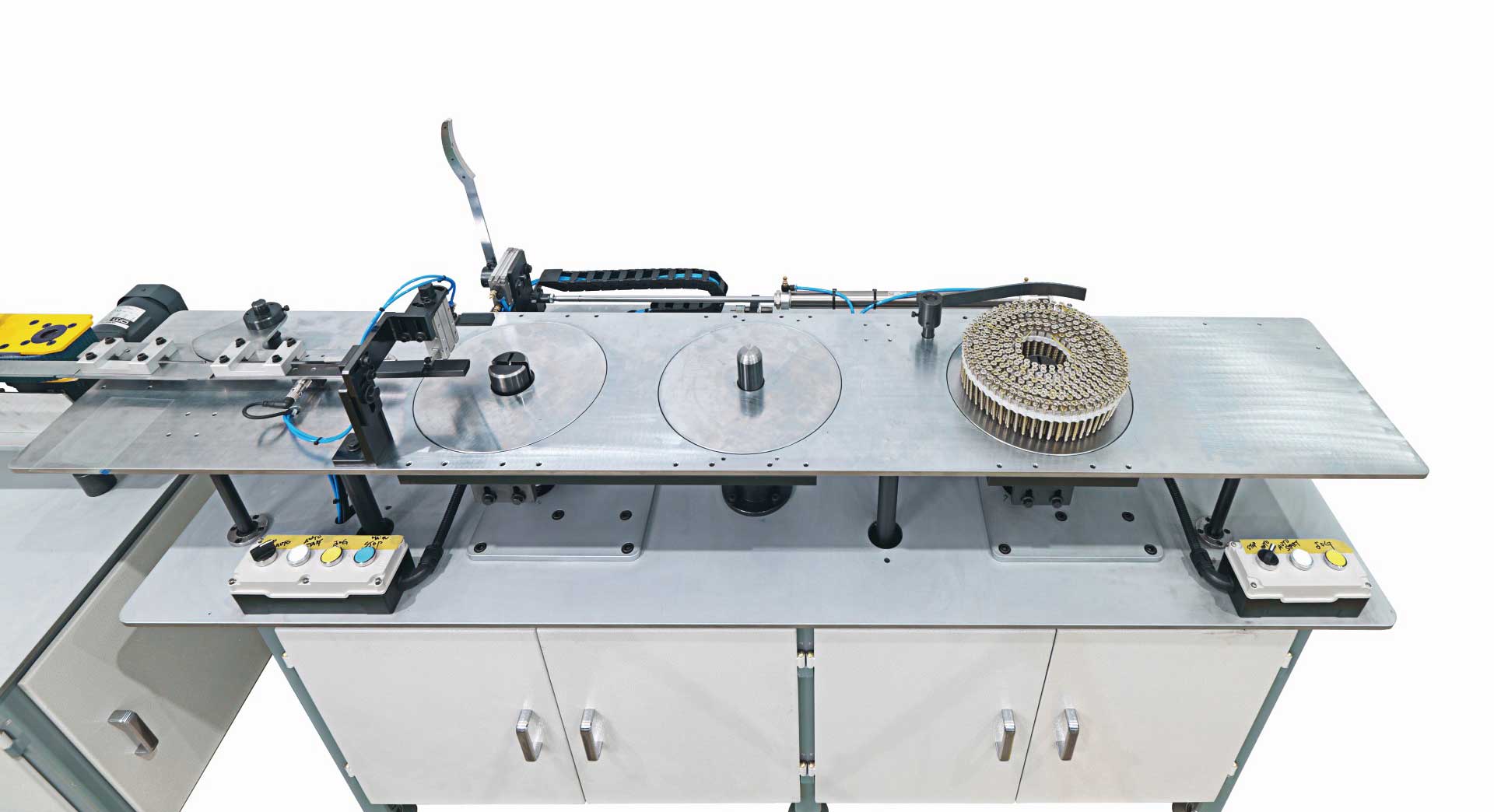

  • Coiler makes clockwise direction coil.
  • JMR-83: Jumbo and Rewinder make CCW direction jumbo Coil.
