MP-4

Paper Tape Collator for Long Nails

Previous image MP-4 Next image

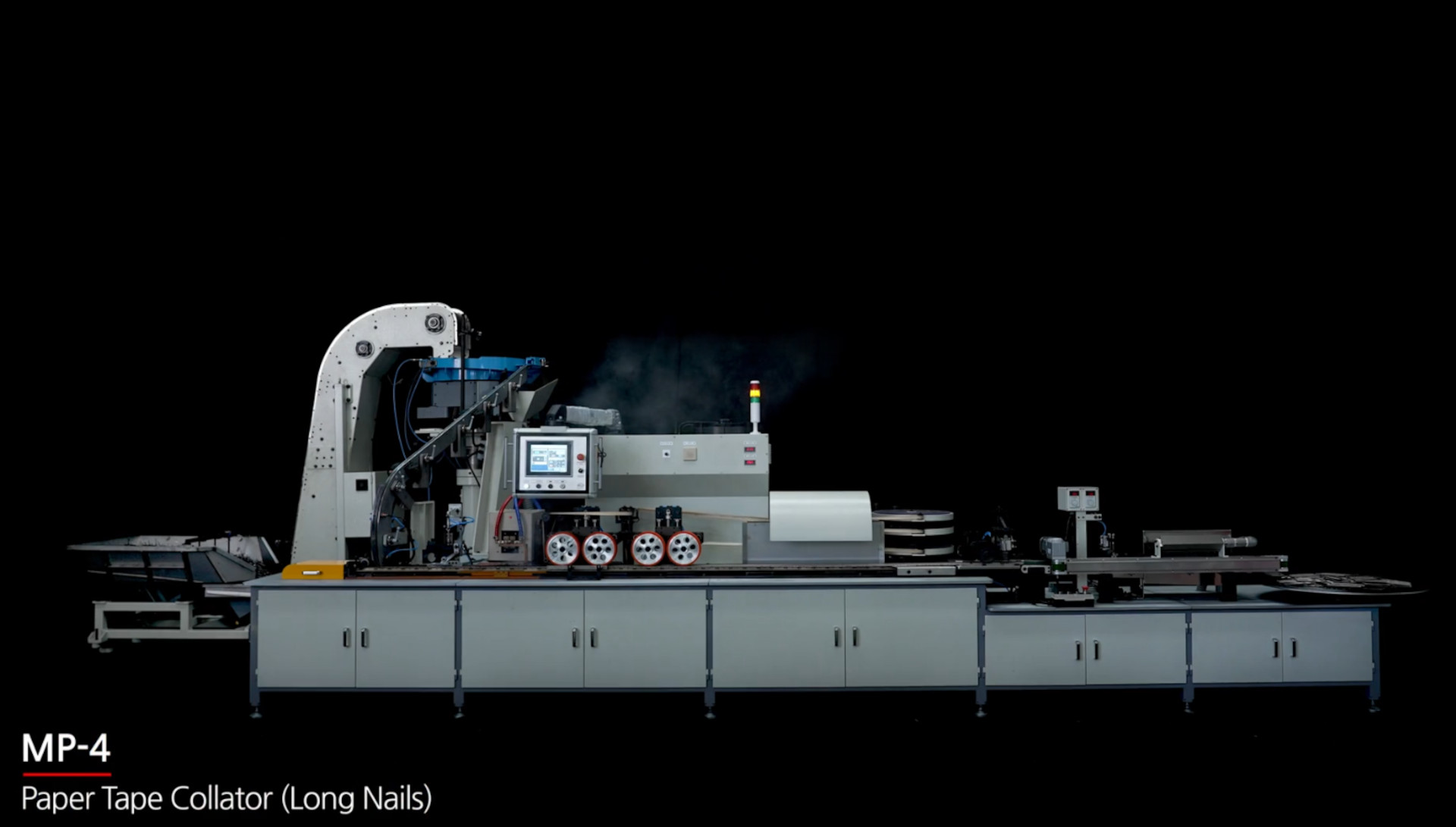

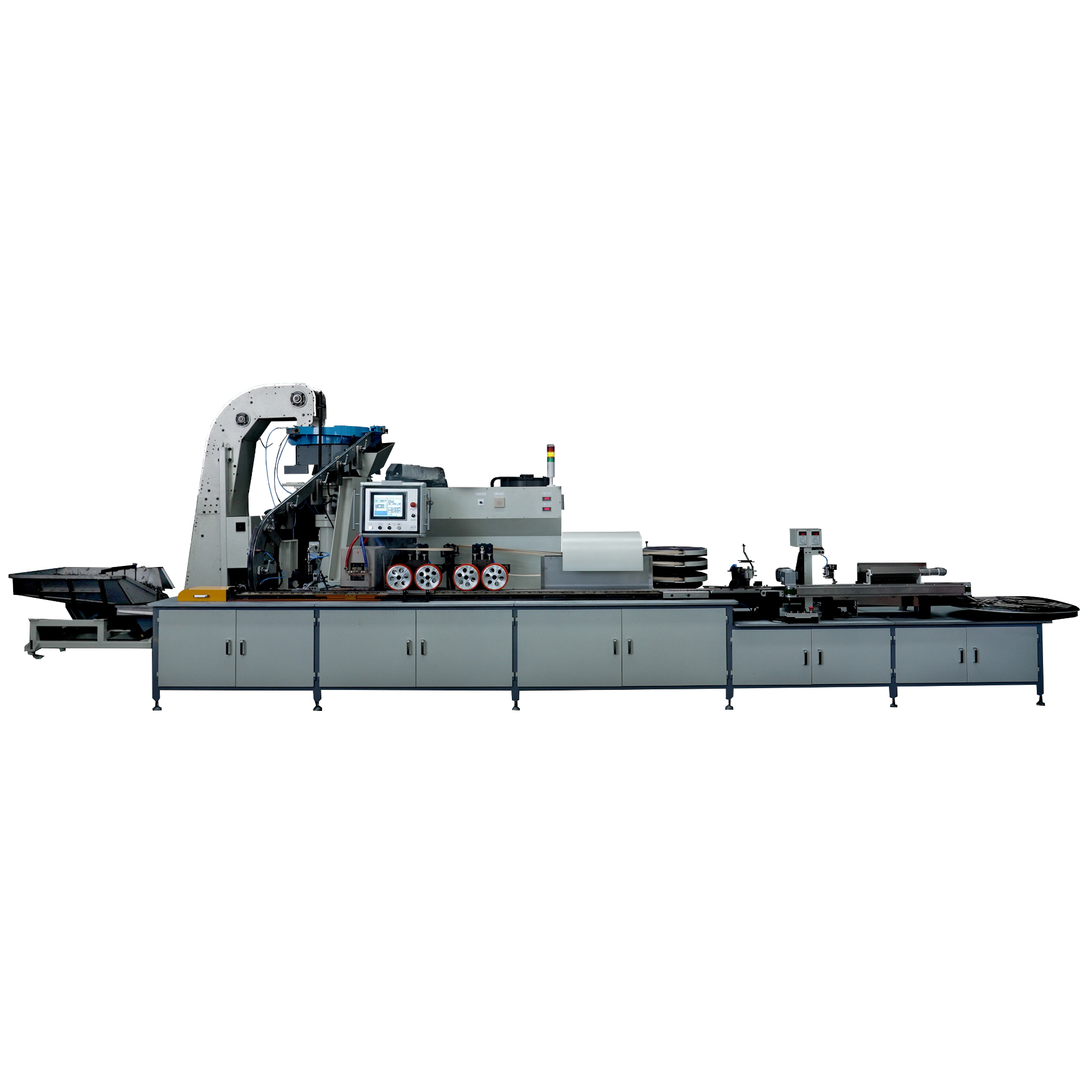

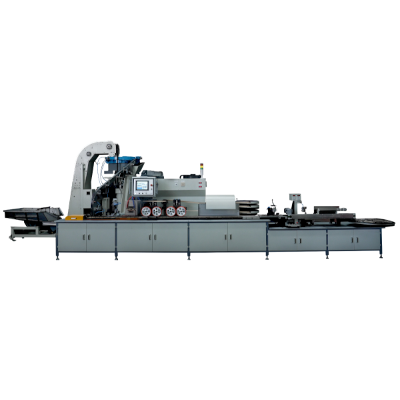

The MP-4 Paper Tape Collator for Long Nails

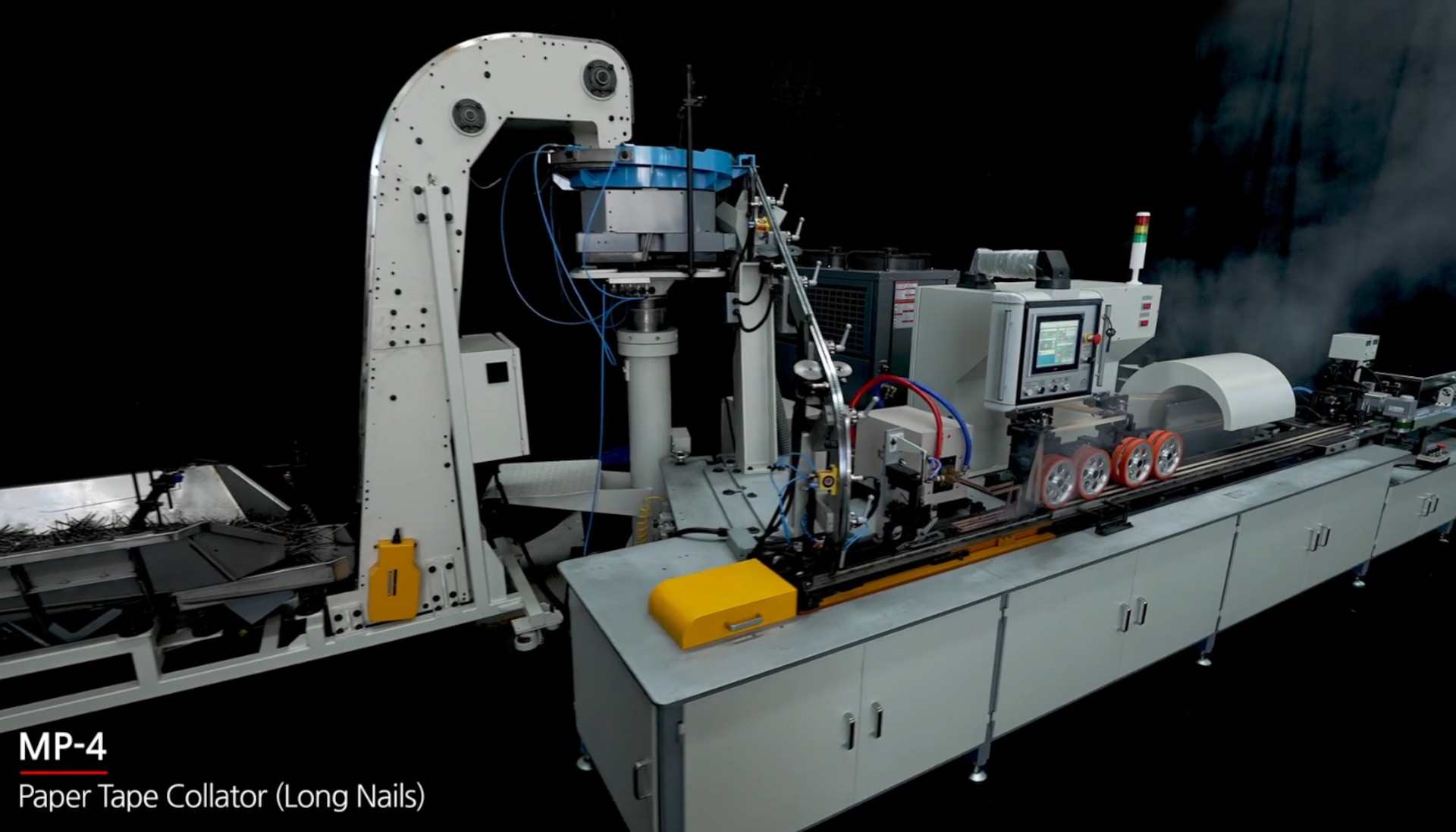

Paper Tape Collator MP-4: The Paper Tape Collator MP-4 is a machine for collating long round-head nails (100-160 mm in length, up to 5 mm in diameter) using a 21° angled paper tape with spacing identical to plastic strips, providing an eco-friendly alternative to plastic collated nails by reducing waste during nailing.

Watch the video of the MP-4


Watch video

Specifications:

Model:
MP-4
Nail Diameter Range:
2,87 - 4,6 mm / 0.113" – 0.181"
Nail Length Range:
100 - 160 mm / 4" – 6.3"
Speed:
Up to 500 Nails/min
Main Motor:
0,75 kW / 1 hp, i=1/160
Electric Power:
35 kVA, 3P, 210 - 230 V, 50 - 60 Hz
Transformer:
Primary (380 – 480 V)
HF Inductor:
20 kW, 3P, 210 - 230 V, 50 - 60 Hz
Nail Angle Range:
21° ± 1°
Nails Per Strip:
20 - 25 pcs
Tape Width:
9,5 - 19 mm / ³/₈" - ³/₄"
Weight Kg-Lbs:
3 500 kg / 7 700 lbs
Air Consumption:
400 l/min / 24 m³/hod / 14.1 CFM
Air Supply:
6 bar / 87 psi / (One 1 hose)
Space Required:
6 500 x 2 400 x 2 200 mm / 21' 11.8" x 4' 3.2" x 5' 10.9"
Machine Noise:
85 dBA
Weight:
3 500 kg / 7,700 lbs
Depth:
6 500 mm
Height:
2 200 mm
Width:
2 400 mm
Features:
  • Steep down rail: Angle adjustable 2,000mm length, 30 degrees aligned round end rail.
  • Horizontal double lane Aluminium Chain links: 100 Links each
    2 Lanes Segment: 80mm RH 100pcs, LH 100pcs. Adjustable pair of chain perform precise quality managing.
  • Heater: 20K HF Induction heating system made in Korea.
  • Sync' PCB: Minimized scrap product by synchronizing main driving gear and inductor.
  • Tape magazine: 2 cartridges placed with paper tape uncoiler help quickly change tape loading.
  • Quick cooling air conditioner.
  • Cutter: Stable Vertical cylinder tilting cutter.
  • Coating: Motorized roller coater with recycling pump and stainless storage tank type.

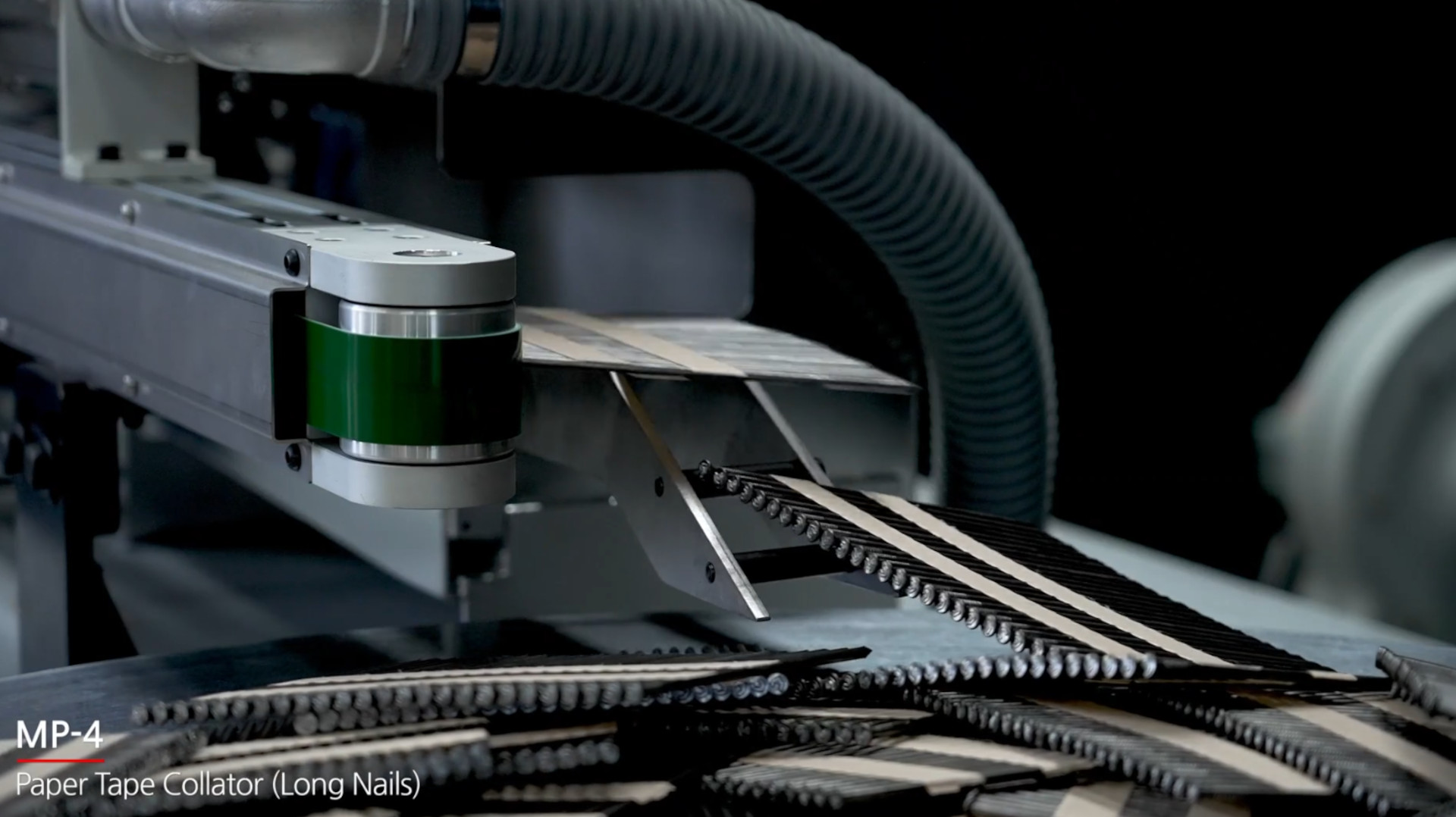

  • Tstacker: 2 index electro magnet type/conveyor: up to 12strips per stack. Number of strips per stack is easily changed by operator.

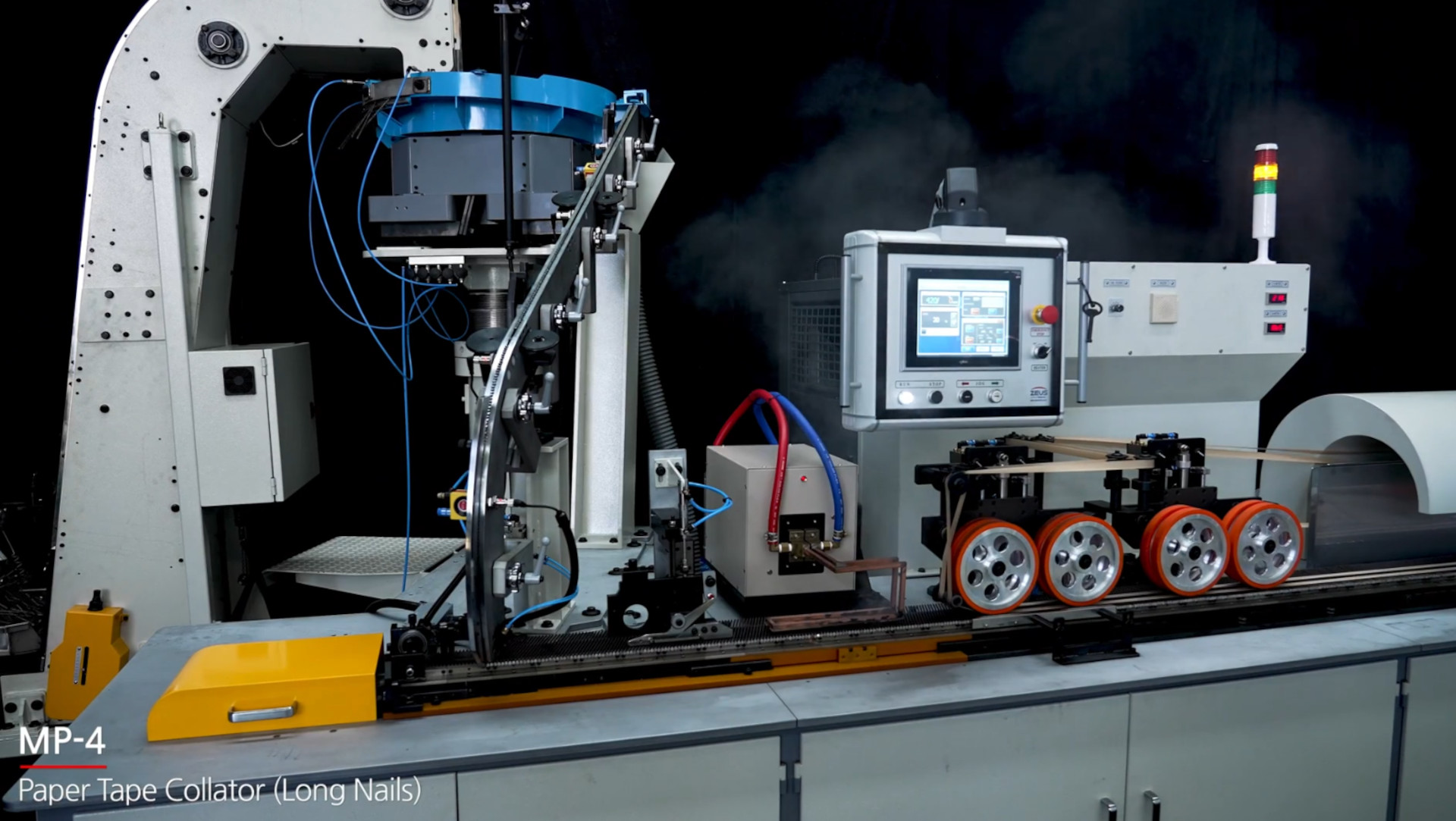

  • Carrier armed touch screen computer controls
