Detail of the MF-10000 machine

High-Precision, Programmable Welding for Industrial Wire Nail Production.

Previous image MF-10000 Next image

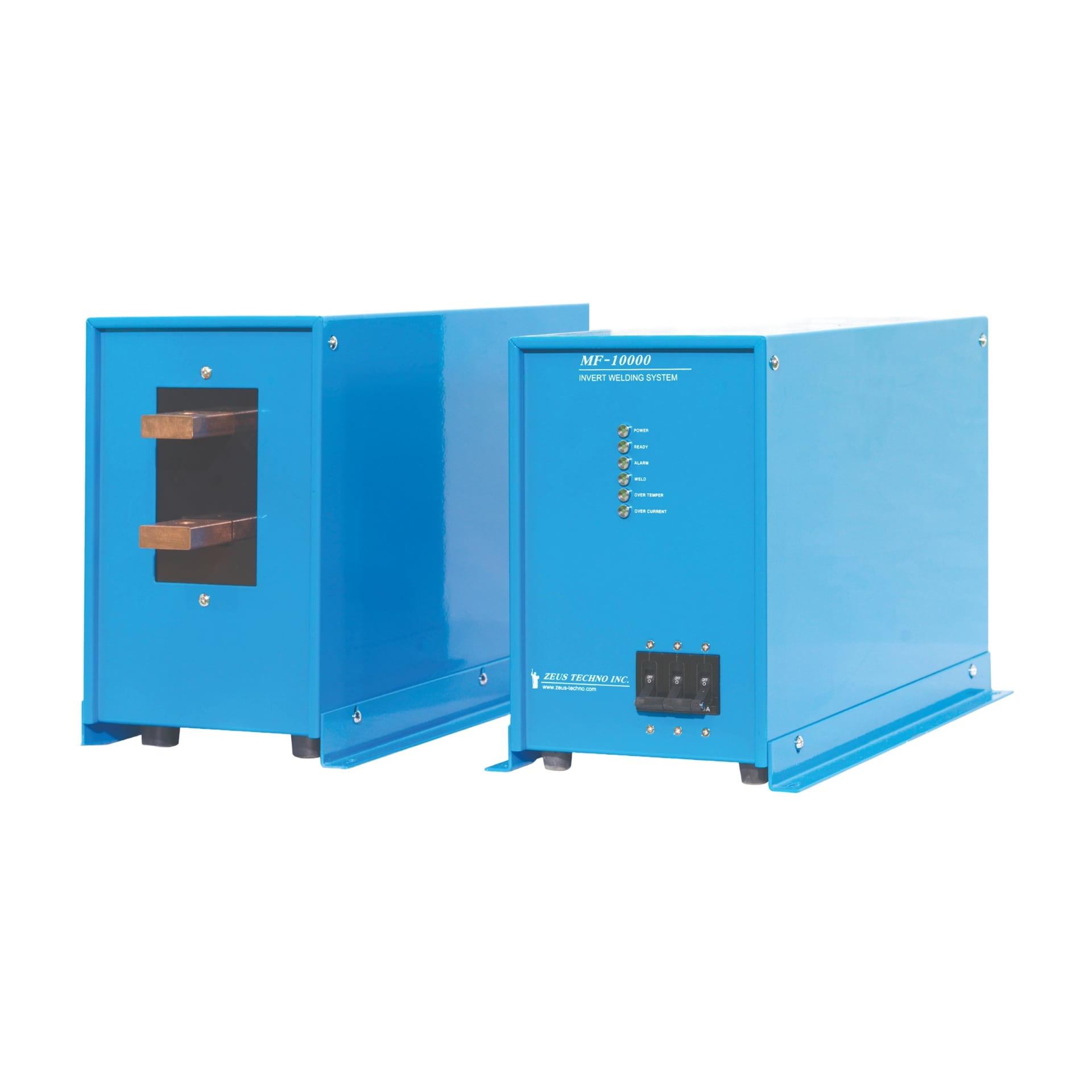

The MF-10000 Welder Machine from ZEUS TECHNO INC

MF-10000 Welder is engineered for performance and flexibility, it comes with programmable multi-step welding conditions, including current, rising, and falling time settings. Advanced features like real-time welding current monitoring and NG detection ensure consistent and high-quality welds. Its cooling system relies on water circulation, providing optimal operation in temperatures ranging from 0°C to 50°C. The welder also supports RS 232C communication for seamless integration into your production line.

No videos available for MF-10000

Specifications:

Model:
MF-10000
Electric Power:
max. 30 kVA, 3P, 210 - 230 V, 50 - 60 Hz
Output Current:
Up to 8000 A (5 V)
Controller Frequency:
1 kHz
Setup Time:
5 ms
Cooling:
Water circulation
Operation Conditions:
Temp: 0°C to 50°˚C / 32°F to 122°F, Humidity: below 90%
Controller Weight:
13,5 kg / 30 lbs
Transformer Weight:
26 kg / 57 lbs
Controller Size:
420 x 210 x 305 mm / 16.5" x 8.3" x 12"
Transformer Size:
340 x 255 x 185 mm / 13.4" x 10" x 7.3"
Features:
  • Programmable multi-step welding condition setting (current, rising, and falling time)
  • Real-time welding current monitor, NG detection, machine stop
  • Heat monitor for controller and transformer
  • Selectable multi-channel with different welding conditions up to 64
  • Constant and high-quality welding by feedback control
  • RS 232C communication
