RF-36A

Nail bowl feeder

Previous image RF-36A Next image

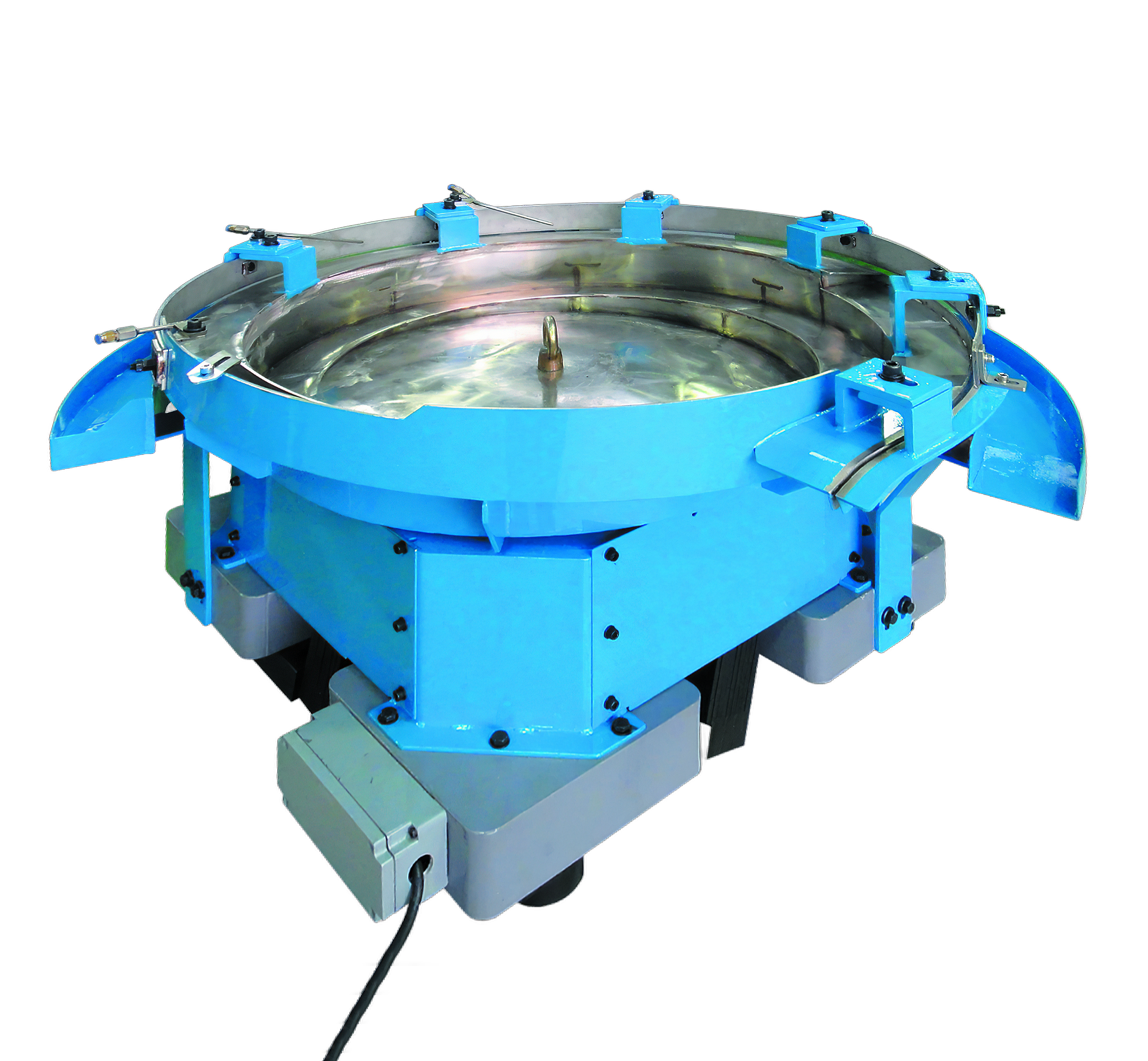

Nail Bowl Feeder RF-36A from ZEUS TECHNO INC

Bowl Feeder RF-36A is a versatile feeding machine designed for medium to large-scale nail production lines. It boasts a maximum feeding speed of up to 4,000 nails per minute. The machine can accommodate nails with diameters between 2.03 - 4.1 mm and lengths from 45 - 160 mm. It operates on 2 kW, 3P, 210-230 V, 50-60 Hz and requires an air supply of 6 bar. The device weighs approximately 400 kg and requires a space of 700 x 700 mm.

Watch the video of the RF-36A


Watch video

Specifications:

Model:
RF-36A
Nail Diameter Range:
2.1 - 4.1 mm (0.083 - 0.161 inch)
Nail Length Range:
30 - 300 mm (1.2 - 11.8 inch)
Speed:
Up to 4,000 nails/min.
Electric Power:
1.5 kW max, 3P, 210-230 V, 50/60 Hz
Air Consumption:
120 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Load Capacity:
34 kg (75 lbs)
Thread Length Range:
900 mm (36 inch)
Weight:
400 kg (800 lbs)
