Strip nail robot packer

Previous image SAP Next image

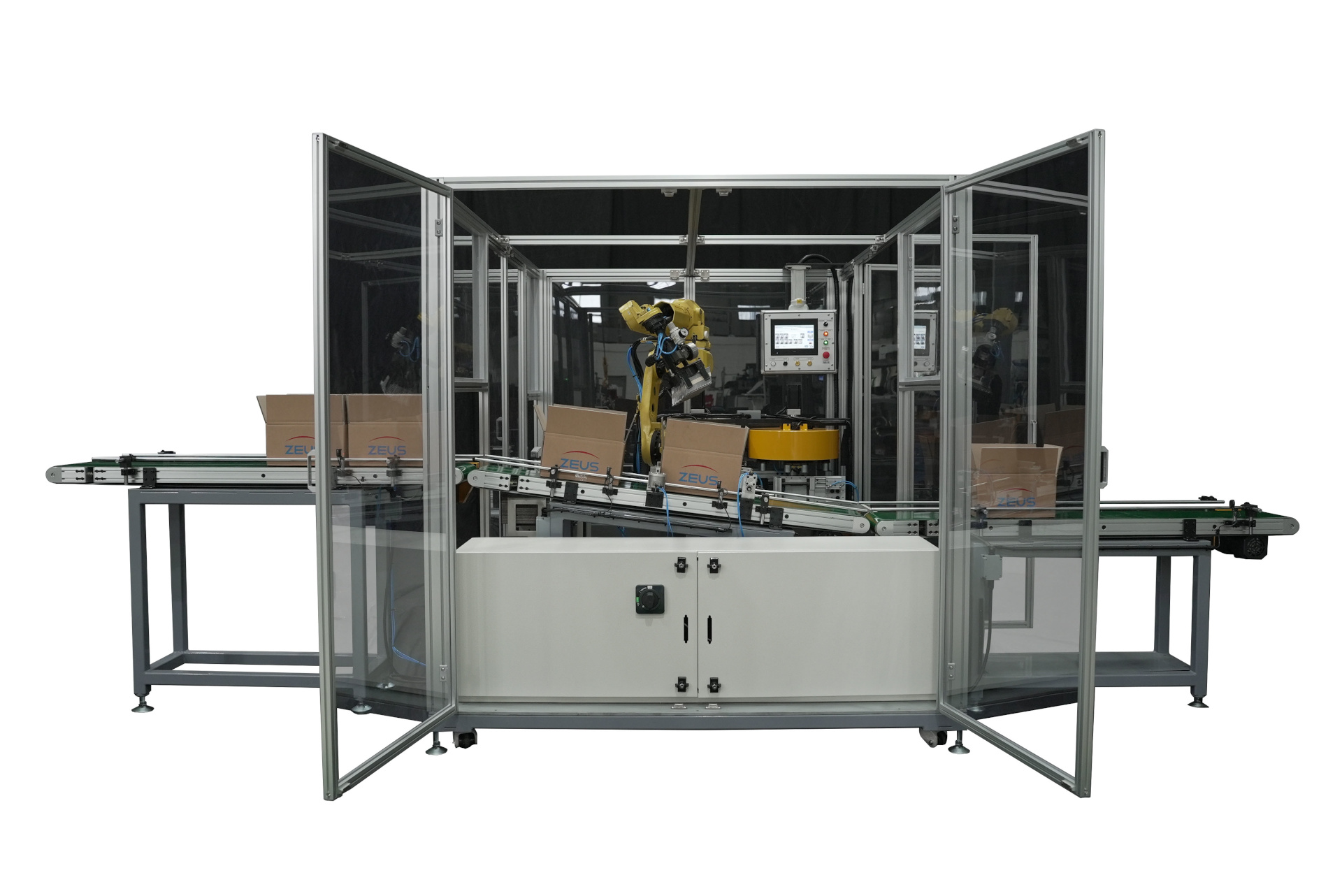

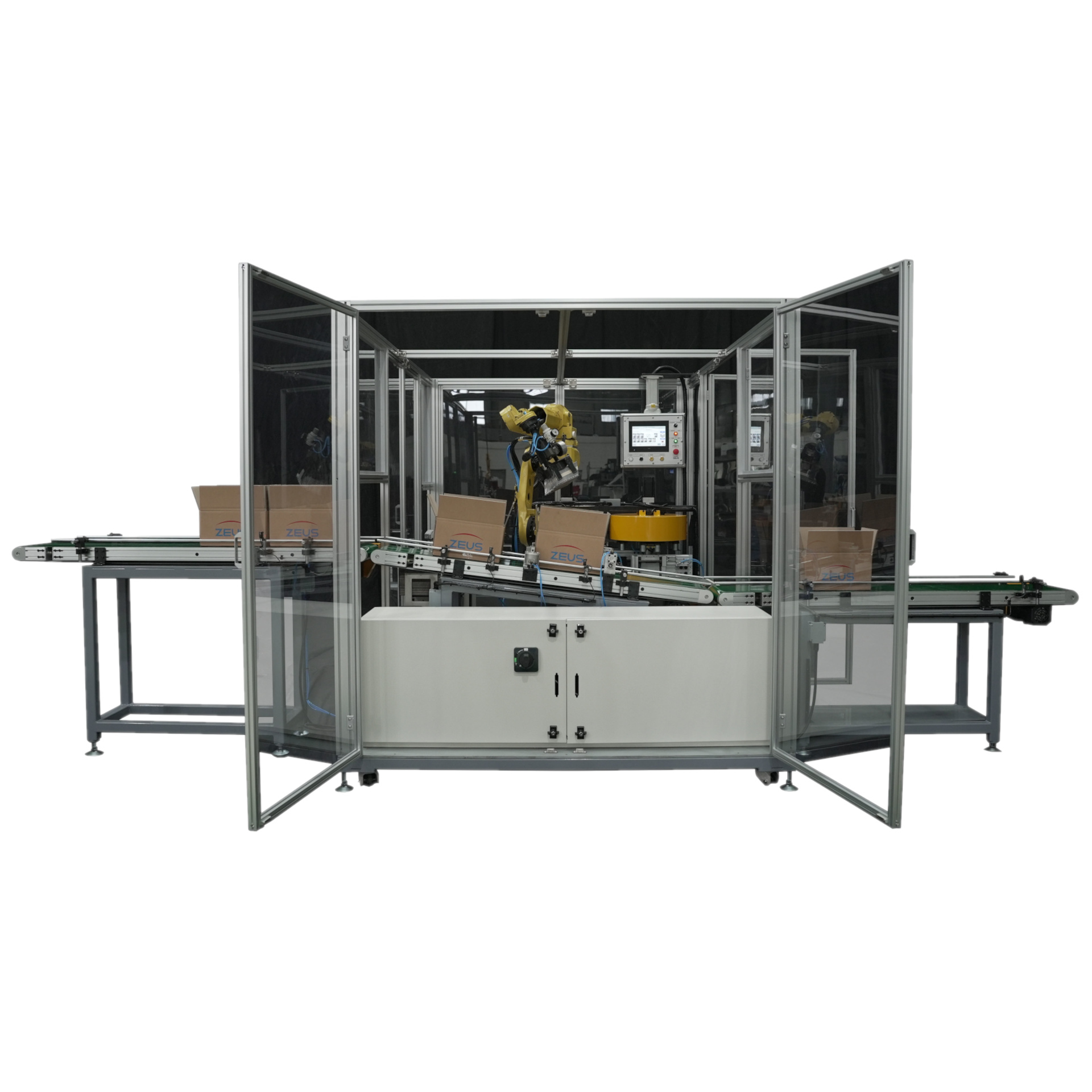

The SAP Autopacker from ZEUS TECHNO INC

Autopacker SAP: Elevate your nail packaging process with Autopacker SAP. Tailored for collated nails using plastic strips or paper tape collators, this machine operates at speeds of up to 2,500 nails per minute. Its efficient design minimizes air consumption while maximizing precision. Autopacker SAP ensures that your collated nails are neatly packaged and ready for distribution, offering a perfect blend of speed and accuracy in nail manufacturing.

Watch the video of the SAP


Watch video

Specifications:

Model:
SAP
Nail Diameter Range:
Nail diameter 2.5 - 4.2 mm (0.099 - 0.165 inch)
Nail Length Range:
45 - 100 mm (1 3/4 - 4 inch)
Speed:
Up to 2,500 nails/min. (125 strips per/min)
Electric Power:
5 kW max, 3P, 210-230 V, 50/60 Hz
Nails Per Strip:
20 - 30 pcs
Tape Width:
19 - 35 degree
Air Consumption:
150 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Weight:
3,000 kg (6,600 lbs)
Features:
  • Box erector: Stanley stapler/box loading magazine (up to 100 pcs)

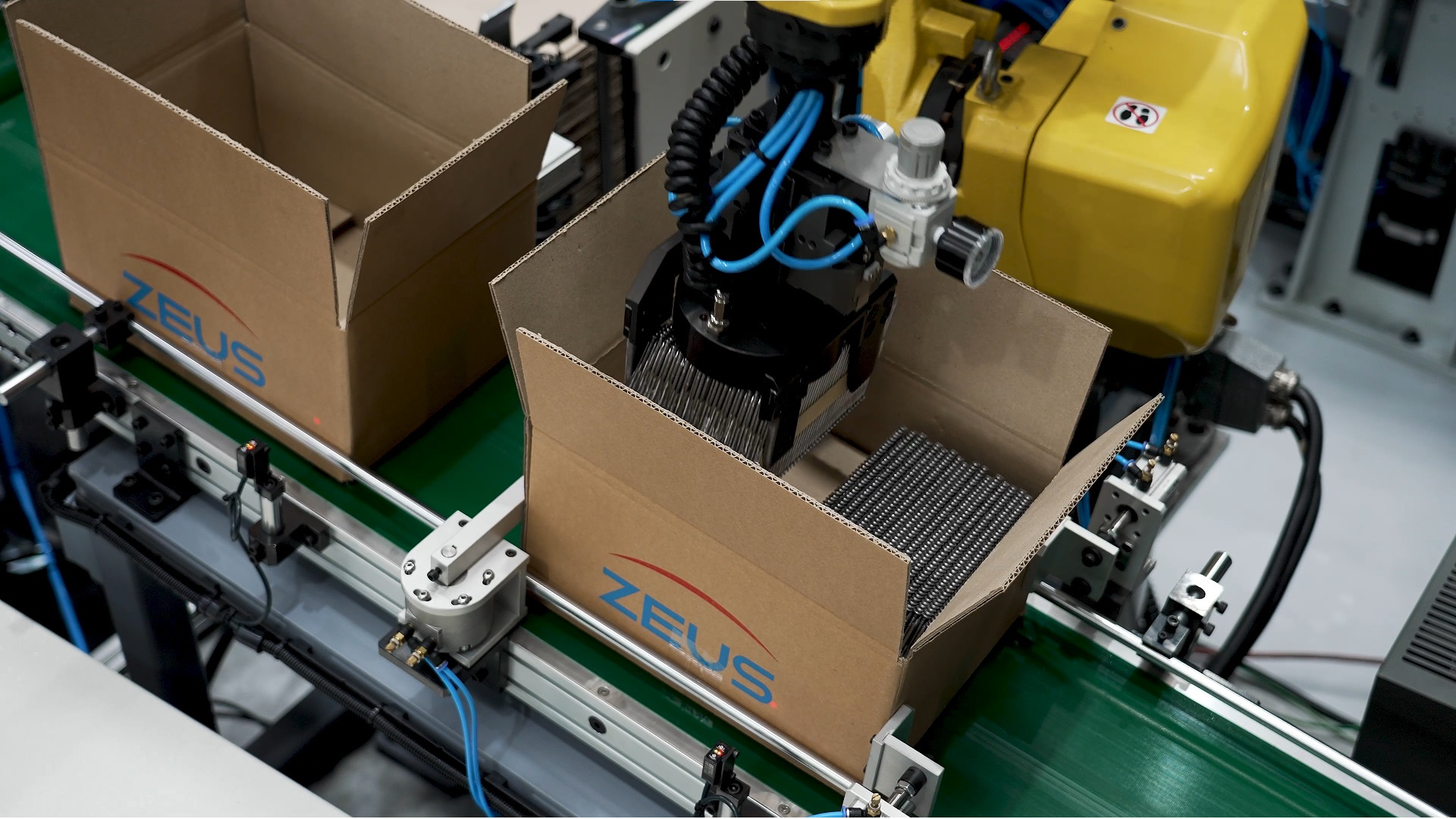

  • Auto packer with a banding unit of strip nail strapped

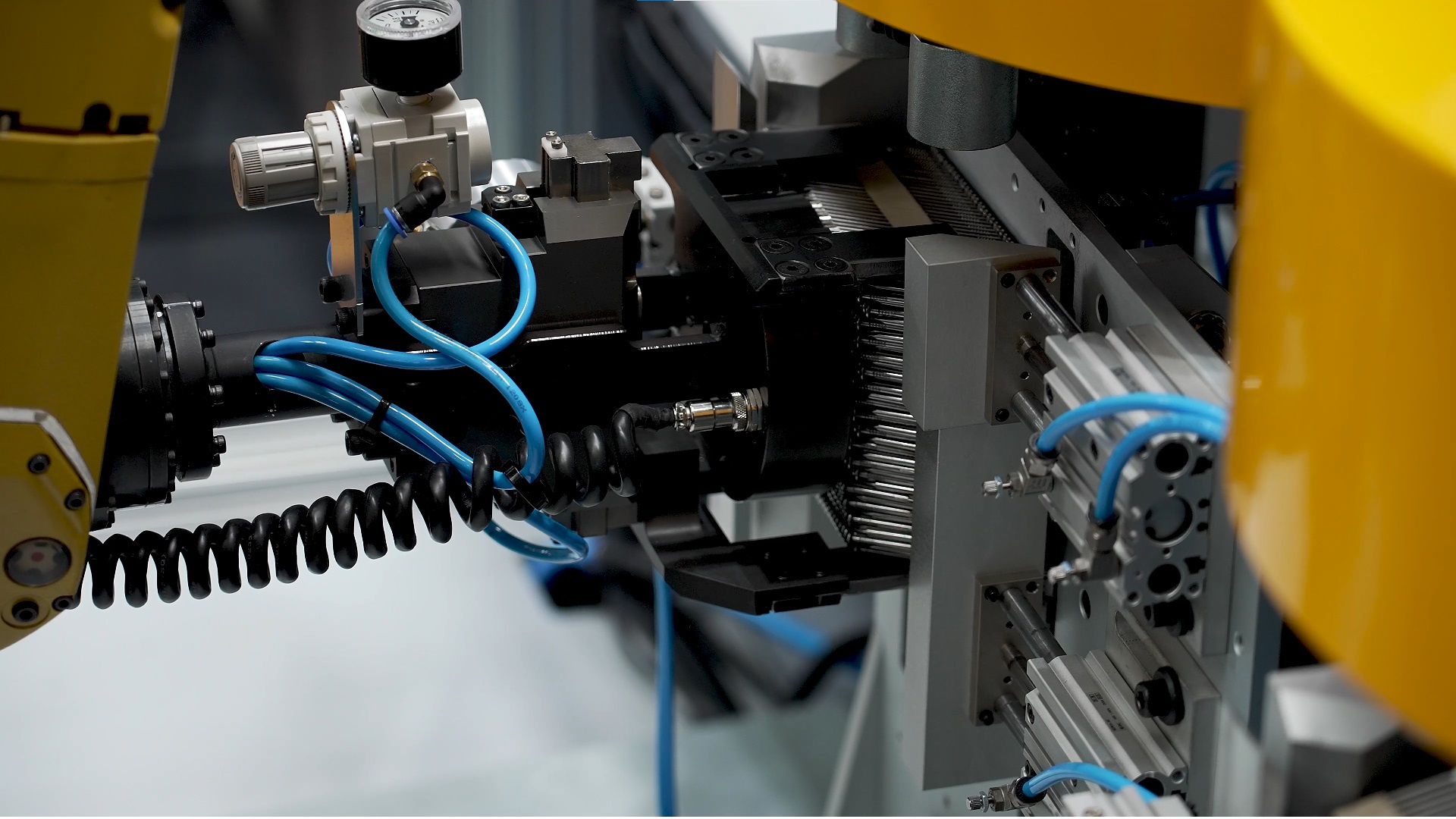

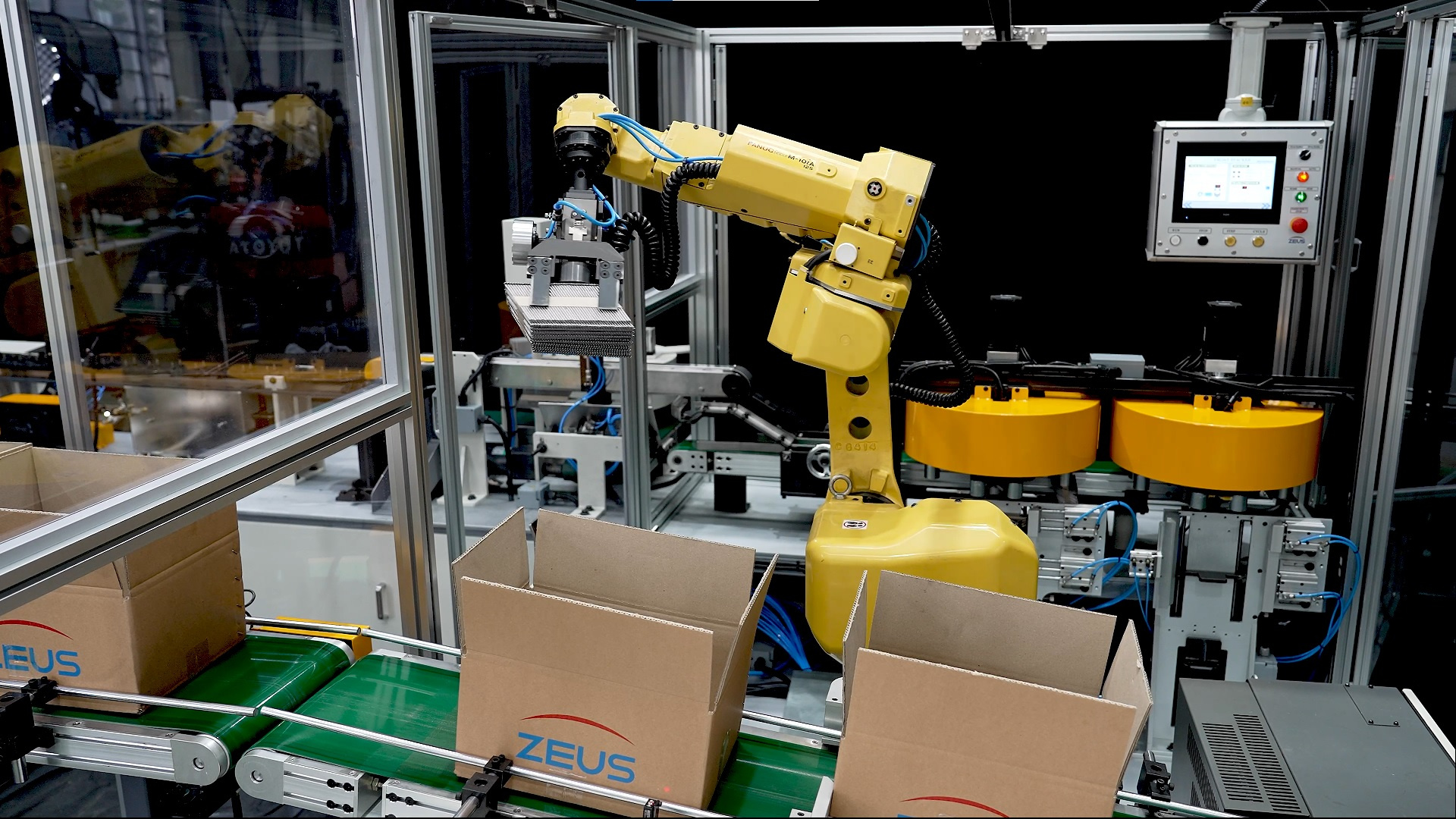

  • Strip nail transferred by articulated Robot, Fanuc
  • Empty box feeding belt conveyor
  • Pad insert unit: horizontal magazine & vacuum ejector type
  • Weighing and NG conveyor
  • Box closer: Stanley black & decker stapler
  • Box unloading roller conveyor
